2 Line Chart
11
Charts
■ Show date and time data at the cursor position
To show the date and time data at the position indicated by the cursor, select this check box and specify the font and
display type.

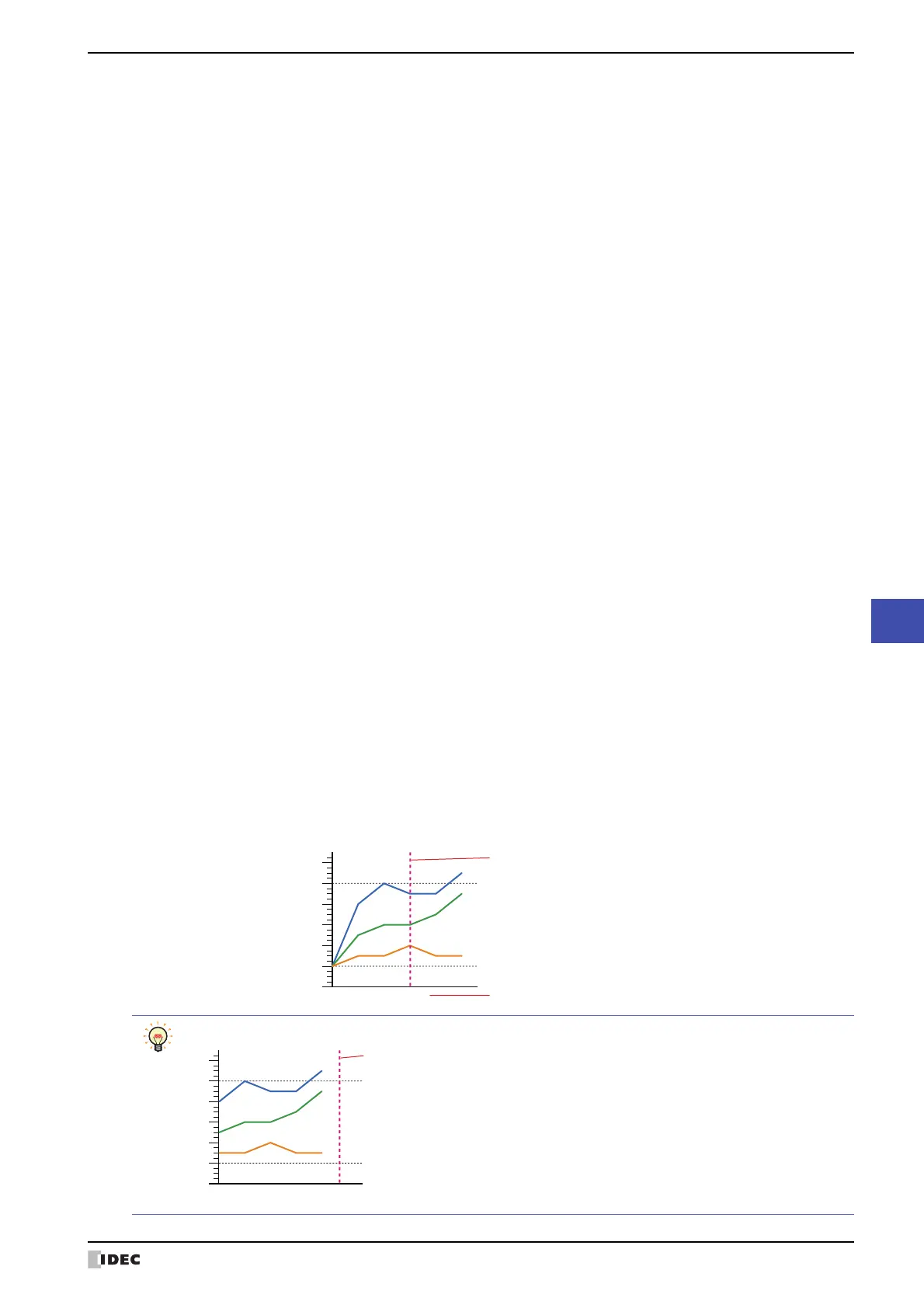

Example: When Display items is configured as Date & Time, Date Type is YY/MM/DD, Month is 1/2/3/...,
Year is Double Figures, Time is HH:MM:SS
Font: Configures the format to display the date and time data.
Font: Selects the font for displayed characters from the following.
Standard, Stroke, 7-Segment
The characters that can be displayed depend on the font. For details, refer to
Chapter 2 “1.2 Available Text” on page 2-6.
Style: Selects the character style as Regular or Bold.
This option can only be configured when Standard is selected for Font.
Magnification W, H: Selects the zoom factor for characters (0.5, 1 to 4, 8).
This option can only be configured when Standard is selected for Font.
Size: Specifies the character size (8 to 128).
This option can only be configured when Stroke or 7-Segment is selected for
Font.
Color: Selects the text color (color: 256 colors, monochrome: 16 shades).
Click this button to display the Color Palette. Select a color from the Color Palette.
Display Type: Configures the display type for the date and time data.
Display items: Selects the items to display for the date and time data from the following.
Time, Date, Date & Time
If Date & Time is selected, the date is displayed centered on the first line and the
time is displayed centered on the second line.
Date Type: Selects the display type of the date from the following.
YY/MM/DD, MM/DD/YY, DD/MM/YY, MM/DD, DD/MM
This option can only be configured when Date or Date & Time is selected for
Display items.
Year: Selects the display type for the year as Double Figures or Four Figures.
This option can only be configured when Date or Da
te & Time is selected for
Display items.
Month: Selects the display type for the month as 1/2/3/... or Jan/Feb/Mar/....
This option can only be configured when Date or Date & Time is selected for
Display items.
Time: Selects the display type for the time from the following.
HH:MM, HH:MM:SS, MM:SS
HH: hours, MM: minutes, SS: seconds
11/10/01
12:01:30
Cursor
Cursor posion date and me data
If there is no data at the cursor position, the date and time is displayed as "*".
**
/
**
/
**
**
:
**
:
**
