2 Word Write Command
12-16 WindO/I-NV4 User’s Manual
■ Data Type
Selects the data type to be handled by the condition formula.
Can only be set if Satisfy the condition or While satisfying the condition is selected as Trigger Type.
For details, refer to Chapter 2 “1.1 Available Data” on page 2-1.
■ Device Address
Specifies the bit device or the bit number of the word device to serve as condition.
Can only be set if Rising-edge or Falling-edge is selected as Trigger Type.
Click to display the Tag Editor. For the device address configuration procedure, refer to Chapter 2 “5.1 Device
Address Settings” on page 2-68.
■ Condition
Sets the condition formula.
Can only be set if Satisfy the condition or While satisfying the condition is selected as Trigger Type.
Click to display the Trigger Condition Settings dialog box. For the conditional expression configuration
procedure, refer to Chapter 2 “5.2 Setting Conditional Expressions” on page 2-71.
■ Comment
Used for entering comments about trigger conditions. The maximum number is 80 characters.

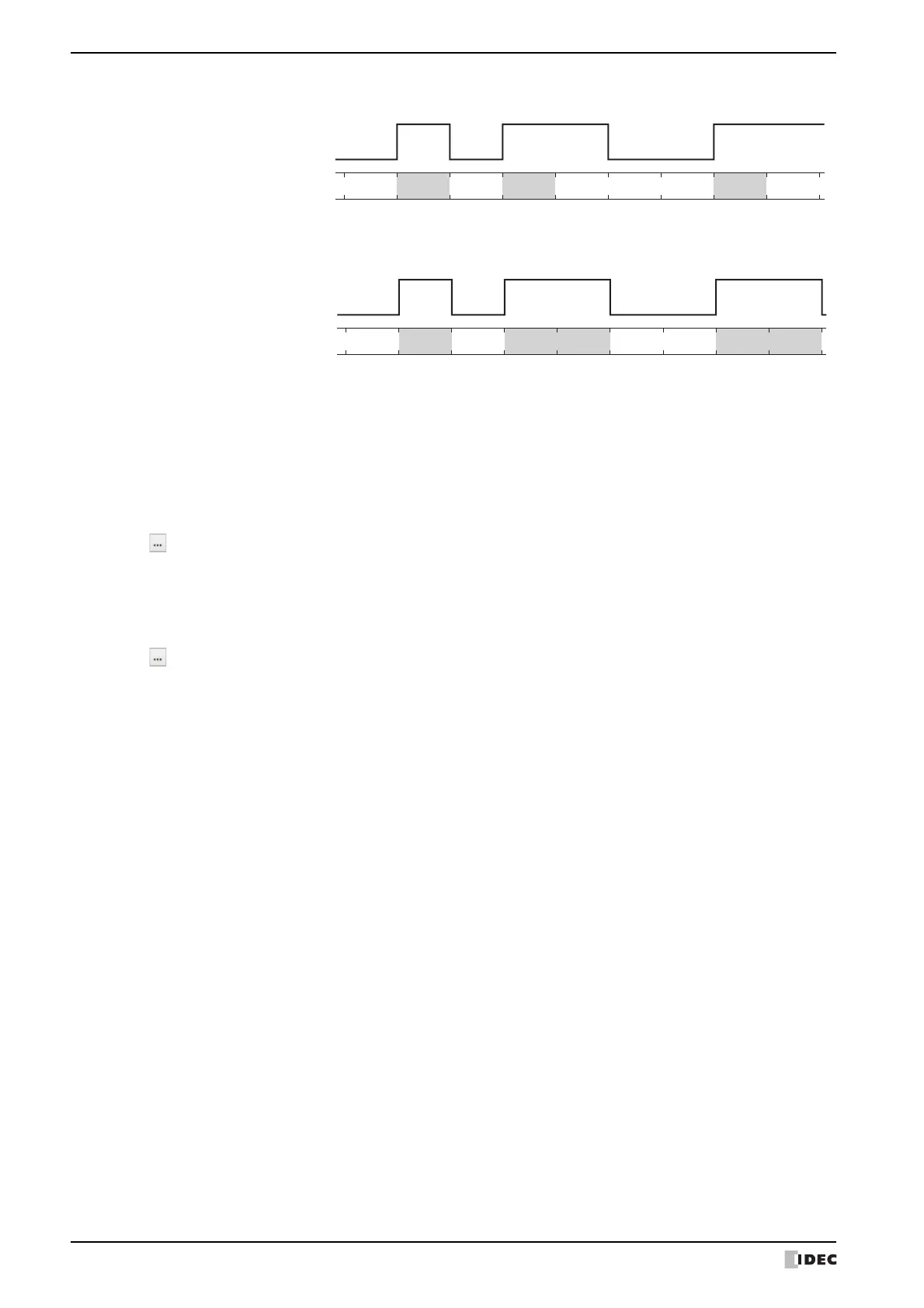

Satisfy the condition: Command is executed when condition changes from not satisfied to satisfied.
While satisfying the condition:
The command continues being executed while the condition is satisfied.
Action
Condition
Satisfied
Not satisfied
Execution Execution Execution
Action
Condition
Satisfied
Not satisfied
Execution ExecutionExecution ExecutionExecution
