B. Laminator Head replacement 2

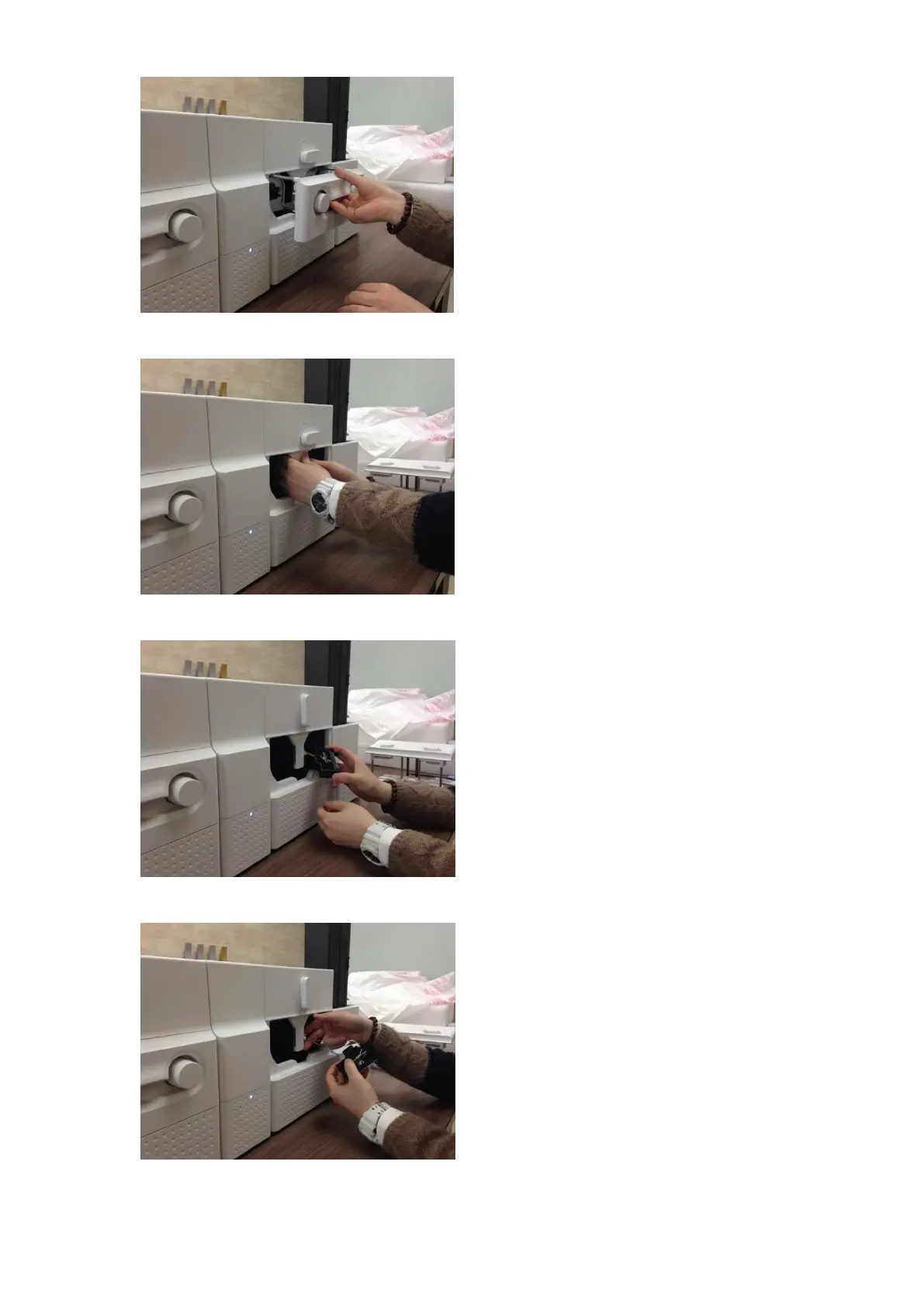

Please pull out the film cartridge as Figure.
Figure 158 Laminator Head replacement 2
C. Laminator Head replacement 3
Please detach the laminate head while
pressing the laminate head detaching button
as Figure.
Figure 159 Laminator Head replacement 3
D. Laminator Head replacement 4
Please pull the detached laminate head out of
Laminator while turning the film cartridge
lock lever to the counterclockwise 90 degrees
as Figure.
Figure 160 Laminator Head replacement 4
E. Laminator Head replacement 5
Please disconnect 2 head cables from the
detached laminate head as Figure and then
connect the laminate head cables to a new
laminate head.
Figure 161 Laminator Head replacement 5
