88

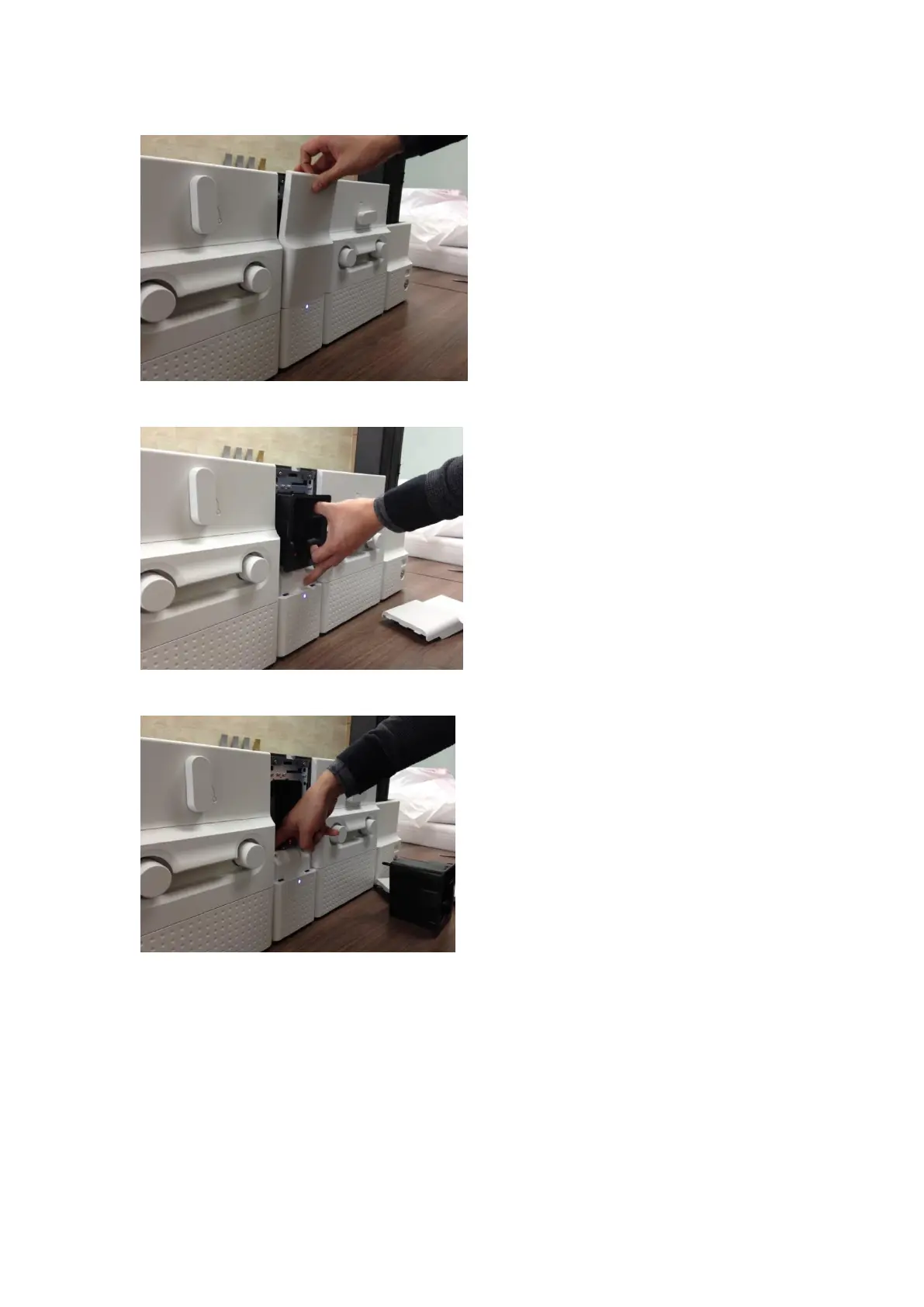

5.3.3 Card jam in Hybrid Flipper
A. Card jam in Hybrid Flipper 1
Please open the cover of Hybrid Flipper by
pulling as Figure.
Figure 122 Card jam in Hybrid Flipper 1
B. Card jam in Hybrid Flipper 2
Please pull out the error card bin in Hybrid
Flipper as Figure.
Figure 123 Card jam in Hybrid Flipper 2
C. Card jam in Hybrid Flipper 3
To remove a jammed card, please turn the
rotating tray of Hybrid Flipper until the
vertical by hand as Figure.
Figure 124 Card jam in Hybrid Flipper 3
