idp SMART-70 - Figure 9 Front Side of Laminator

22
 For massive card issuance, metal frame, stainless steel shaft, ball bearing and high
quality materials are used to increase the stability and reliability of Laminator.
 Conventional laminators must be needed warming-up time before laminating, but
SMART-70 Laminator can immediately laminate without having to wait by using IDP’s
Instant direct heating mechanism.
 Instant direct heating mechanism of IDP uses bar-type laminate head to instantly
increase the temperature of laminate head and to reduce energy consumption to one-
seventh level compared with conventional method and to increase the lifespan of
laminate head.
 In order to prevent scratch on cards, Laminator is designed that cards don’t get in
contact with any other components except rollers when cards are being fed in
Laminator.

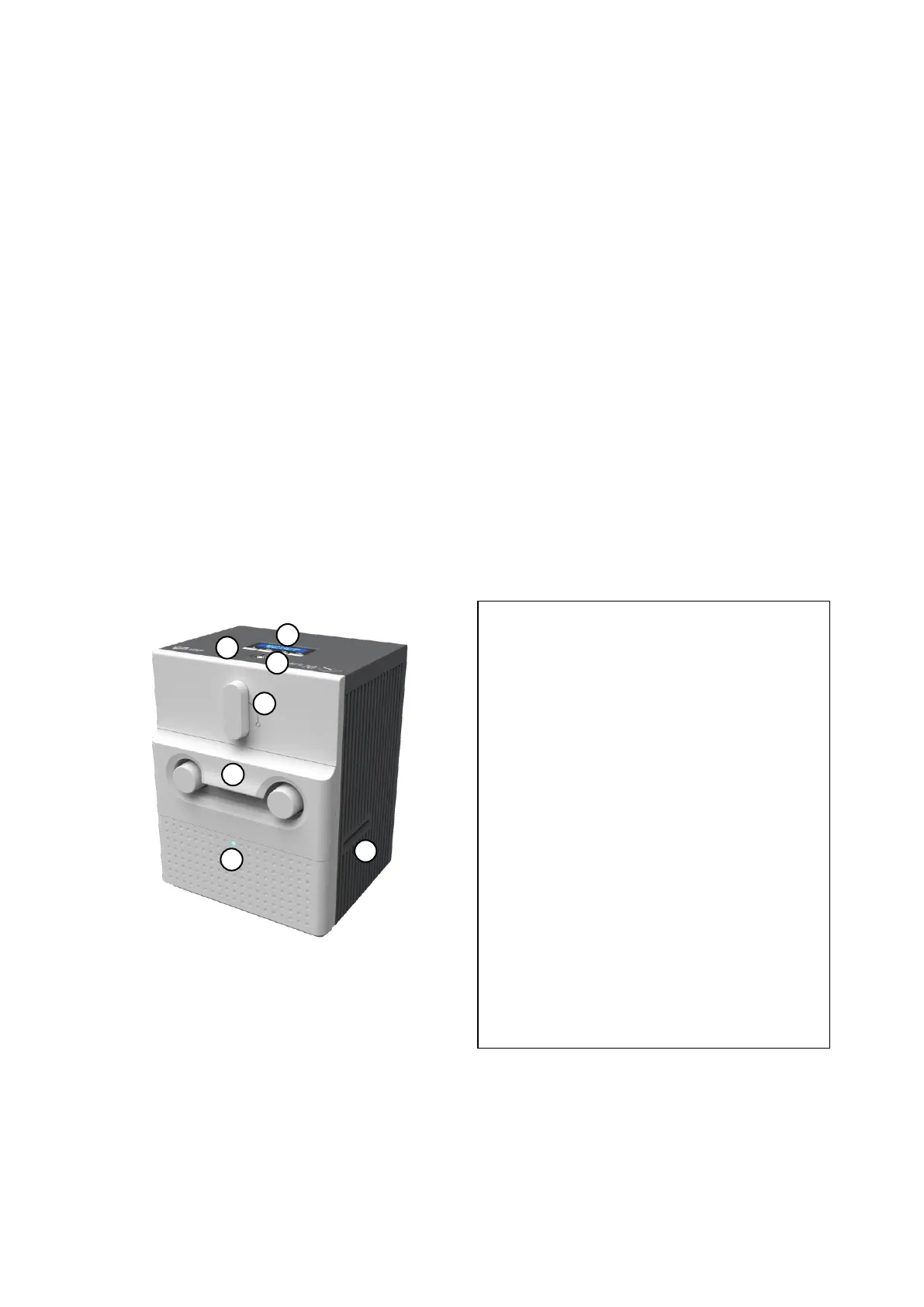

Figure 9 Front side of Laminator
0
1
0
2
0
3
0
5
0
7
0
4
0
6
① Control panel LCD
The status of Laminator is displayed.
② Control panel buttons
Buttons are used to adjust configuration and
check status.
③ Physical lock
Physical lock is to lock Laminator and film
cartridge.
④ Film cartridge lock lever
To pull out film cartridge, please turn lever to
the right 90 degrees.
⑤ Film cartridge
Laminating film for 500 cards is loaded into
cartridge. Ribbon cartridge in Printer can’t be
used for Laminator.
⑥ Indicator LED
The status of Laminator is displayed by the
color.
⑦ Card gate
Card gate is to convey cards from module to
module.
