idp SMART-70 - Figure 97 Resin Black Density; Figure 98 Overlay Density

71

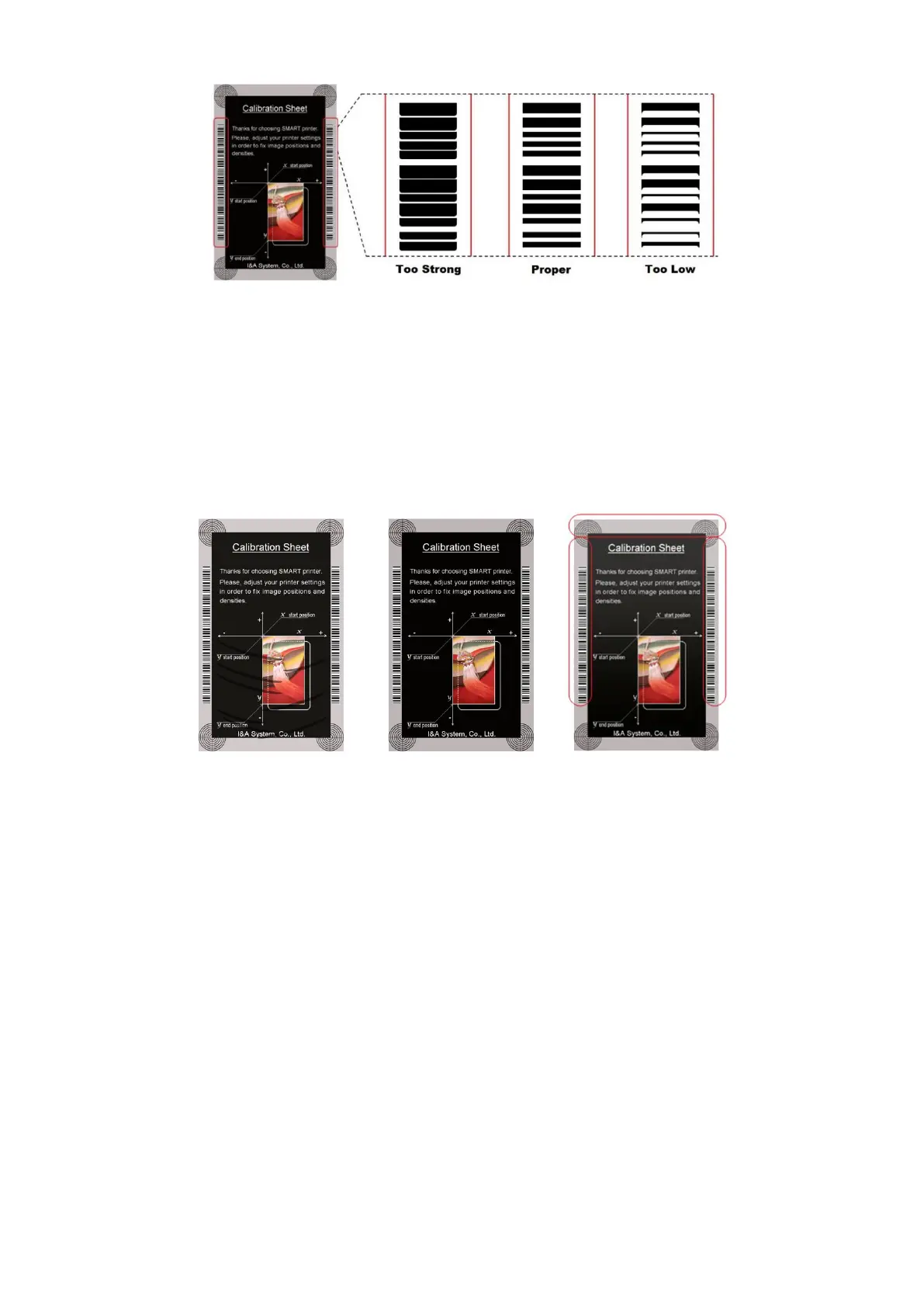

Figure 97 Resin Black density
Overlay Density: To set overlay density. Please adjust it until overlay is printed on surface
regularly. If it is too strong, it is hazy and marks are appeared. If it is too weak, overlay panel
is not printed edge areas. You can check it with printed card under the light.
Too Strong Proper Too Low
Figure 98 Overlay density
⑦ To print calibration card for adjusting the printing position and density.
⑧ To show advanced setup.
(The advanced setup for expert options is not recommended to adjust.)
⑨ To load or save the setup values.
Get Config.: To get values from current connected Printer.
Set Config.: To set values to current connected Printer.
