idp SMART-70 - System Configuration of SMART-70; Figure 56 System Configuration of Smart-70

49
0xM1
0xM5
0xM9
0xMD
0xM2
0xM6
0xMA
0xME
0xM3
0xM7
0xMB
0xMF
2.2.2 System configuration of SMART-70
SMART-70 is basically composed of the combination of Input Hopper(I), Printer(P), Laminator(L),
Hybrid Flipper(H) and Output Hopper(O). The encoding option for the magnetic stripe card and
contactless smartcard can be installed into the Printer. And, the encoding option for the contact
and contactless smartcard and color image scanner can be installed into the Hybrid Flipper.
Each encoding option is able to be recognized by USB Hub and Ethernet Board when the
encoding options are installed into the Printer and the magnetic stripe card and contactless
smartcard is able to be encoded by using SMART-70 SDK.

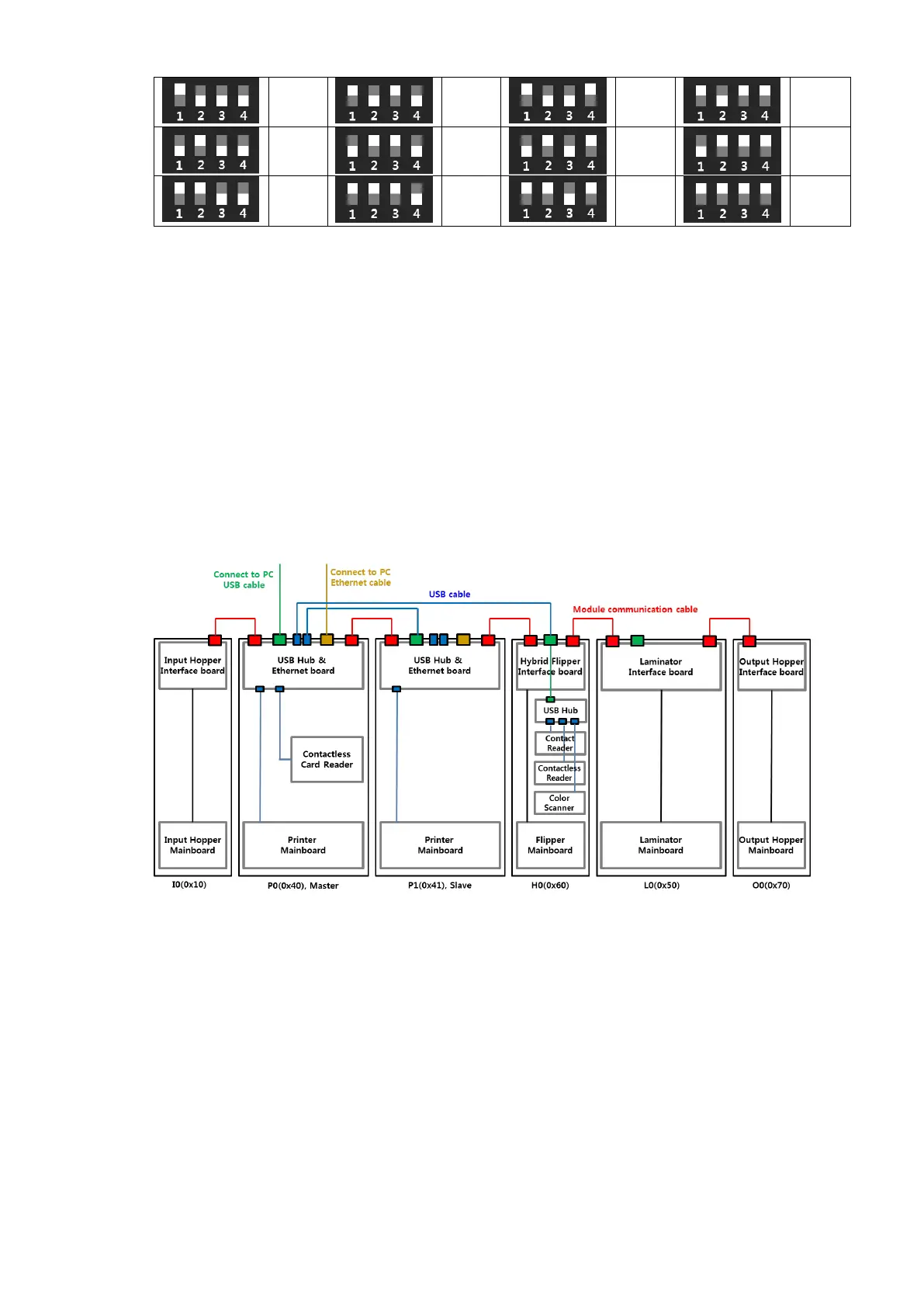

Figure 56 System configuration of SMART-70
In above Figure 77, contactless smartcard encoders are installed into the Printers of the IPPHLO
combination. And, contact and contactless encoder and color image scanner is installed into
the Hybrid Flipper of the IPPFLO combination. In that case, the modules should be connected
and configured as below.
(1) Please adjust the module ID and Operation Mode as below.
-. Input Hopper I0: Module ID = 0x10
