idp SMART-70 - Figure 4 Front Side of Printer; Figure 5 Rear Side of Printer

17

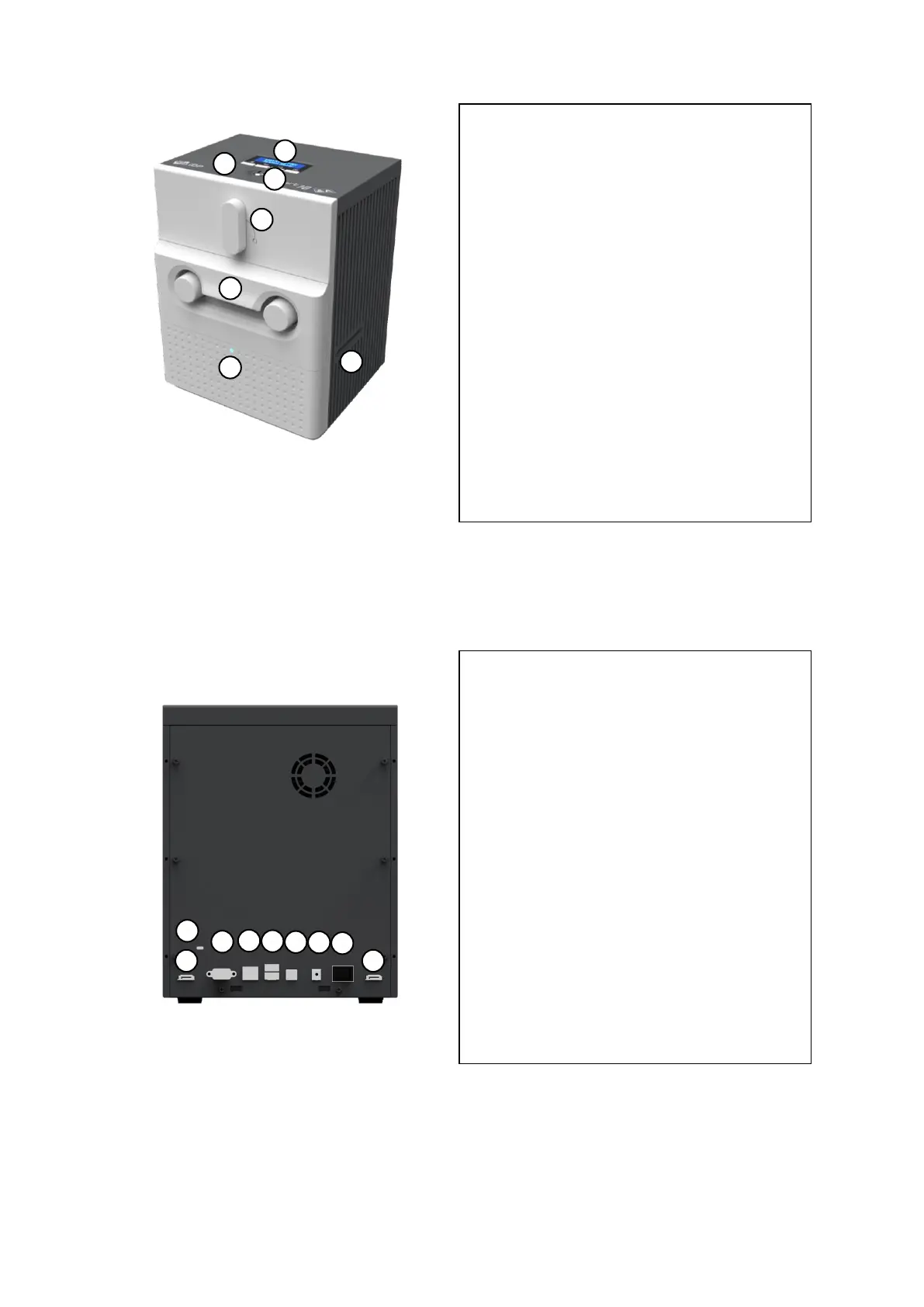

Figure 4 Front side of Printer
Figure 5 Rear side of Printer
0
1
① Kensington lock
Kensington lock is usable.
② Communication port
To communicate between SMART-70 modules,
please connect to an adjacent module.
③ Serial communication port
This port is to communicate with external
device except SMART-70 modules.
④ Ethernet port
This port is for network communication.
⑤ USB host communication port
⑥ USB device port
To communicate with PC, please connect to PC.
⑦ Power port
Please connect the 24V DC power adaptor
provided with Input Hopper.
⑧ Power switch
Turn On/Off.
0
2
0
3
0
5
0
7
0
4
0
6
0
1
0
2
0
3
0
4
0
5
0
2
0
6
0
7
0
8
① Control panel LCD
The status of Printer is displayed.
② Control panel buttons
Buttons are used to adjust configuration and
check status.
③ Physical lock
Physical lock is to lock Printer and ribbon
cartridge.
④ Ribbon cartridge lock lever
To pull out ribbon cartridge, please turn lever
to the right 90 degrees for taking.
⑤ Ribbon cartridge
Color ribbon for 500 cards or mono ribbon for
3000 cards is loaded into ribbon cartridge.
⑥ Indicator LED
The status of Printer is displayed by the color.
⑦ Card gate
Card gate is to convey cards from module to
module.
