2. Installation and operation
2.1 Hardware installation
2.1.1 PLACEMENT OF MODULES
SMART-70 modules need to be placed on a flat table. Order of placing modules from left to
right is Input Hopper, Printer, Laminator and Output Hopper. When some module is not
required, please remove unnecessary modules from above placing order. For example, when
Laminator is not needed, Input Hopper, Printer, Hybrid Flipper and Output Hopper can be
placed.
When more than one same modules are needed or encoding option ins installed into Hybrid
Flipper, please refer to 2.2 Advanced Hardware Installation.

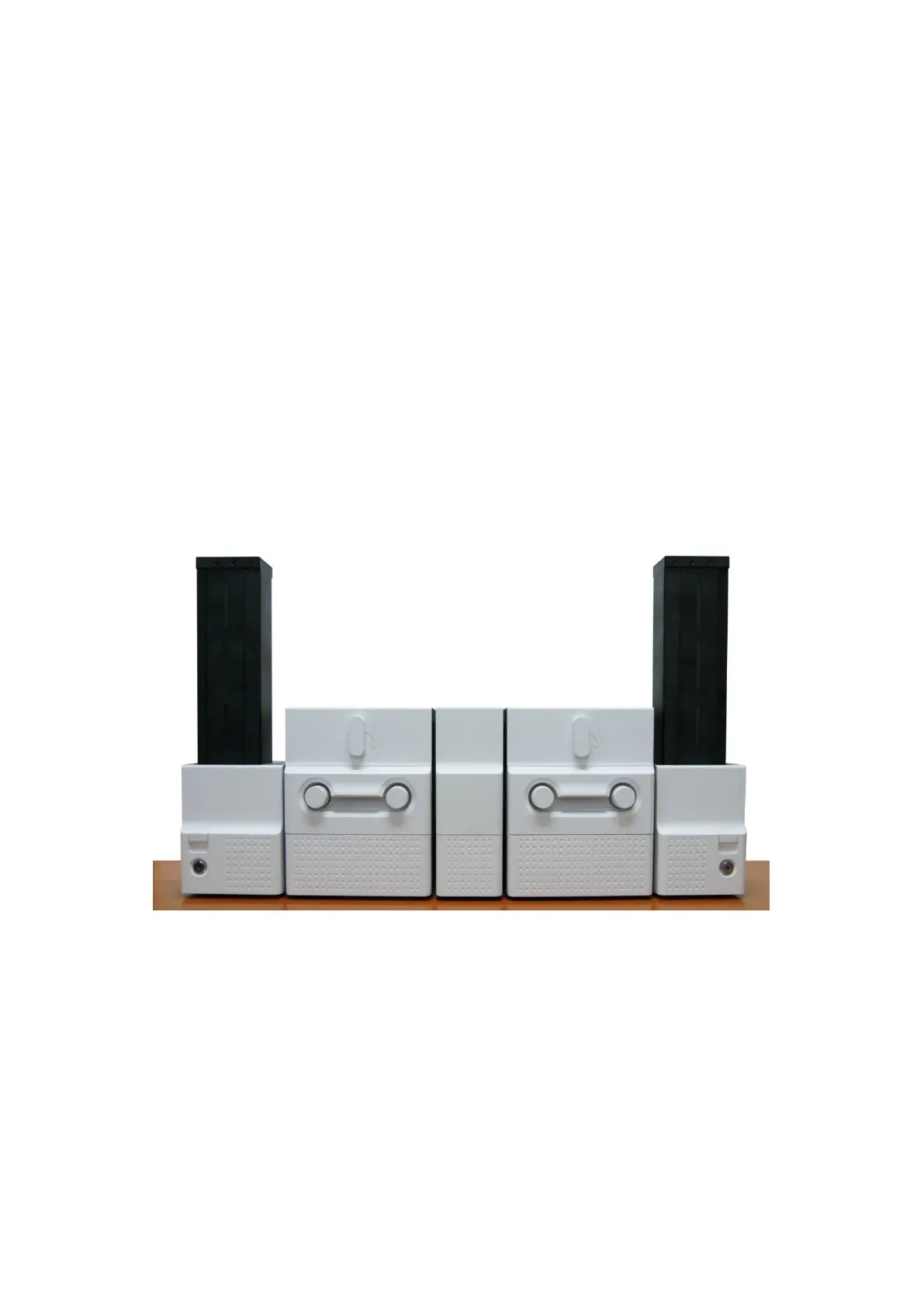

Figure 15 SMART-70 Placement of modules
2.1.2 MODULE FASTENING
모든 모듈들을 그림과 같이 클램프를 사용해서 고정합니다. 클램프를 바닥에 놓고 모듈의 뒤쪽
을 클램프의 꺾인 부분에 맞춰서 내려 놓으면 됩니다.
