98

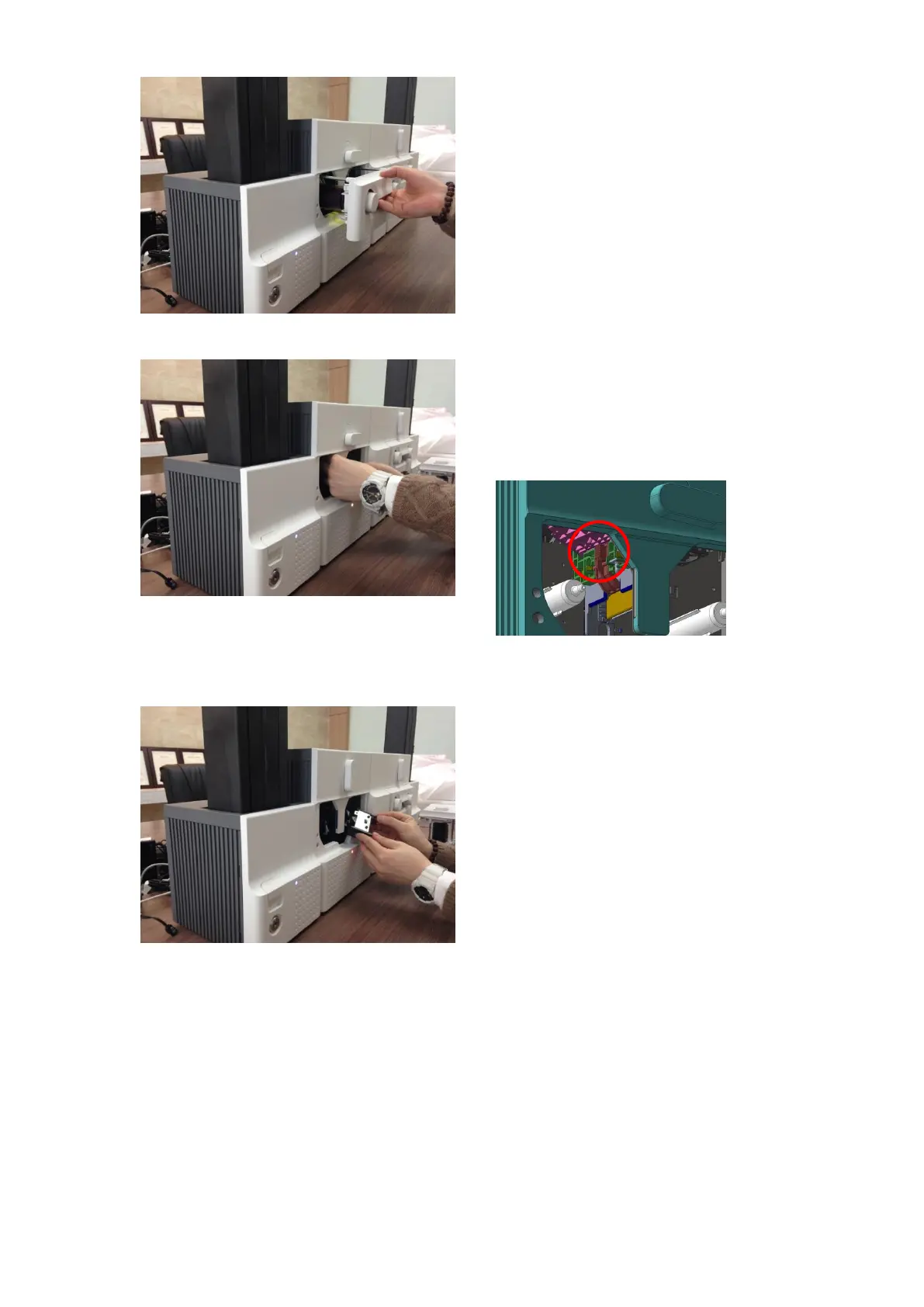

B. TPH replacement 2
Please pull out the ribbon cartridge as Figure.
Figure 152 TPH replacement 2
C. TPH replacement 3
Please detach the print head while pressing
the print head detaching button as Figure.
Figure 153 TPH replacement 3
D. TPH replacement 4
Please pull the detached print head out of
Printer while turning the ribbon cartridge lock
lever to the counterclockwise 90 degrees as
Figure.
Figure 154 TPH replacement 4
