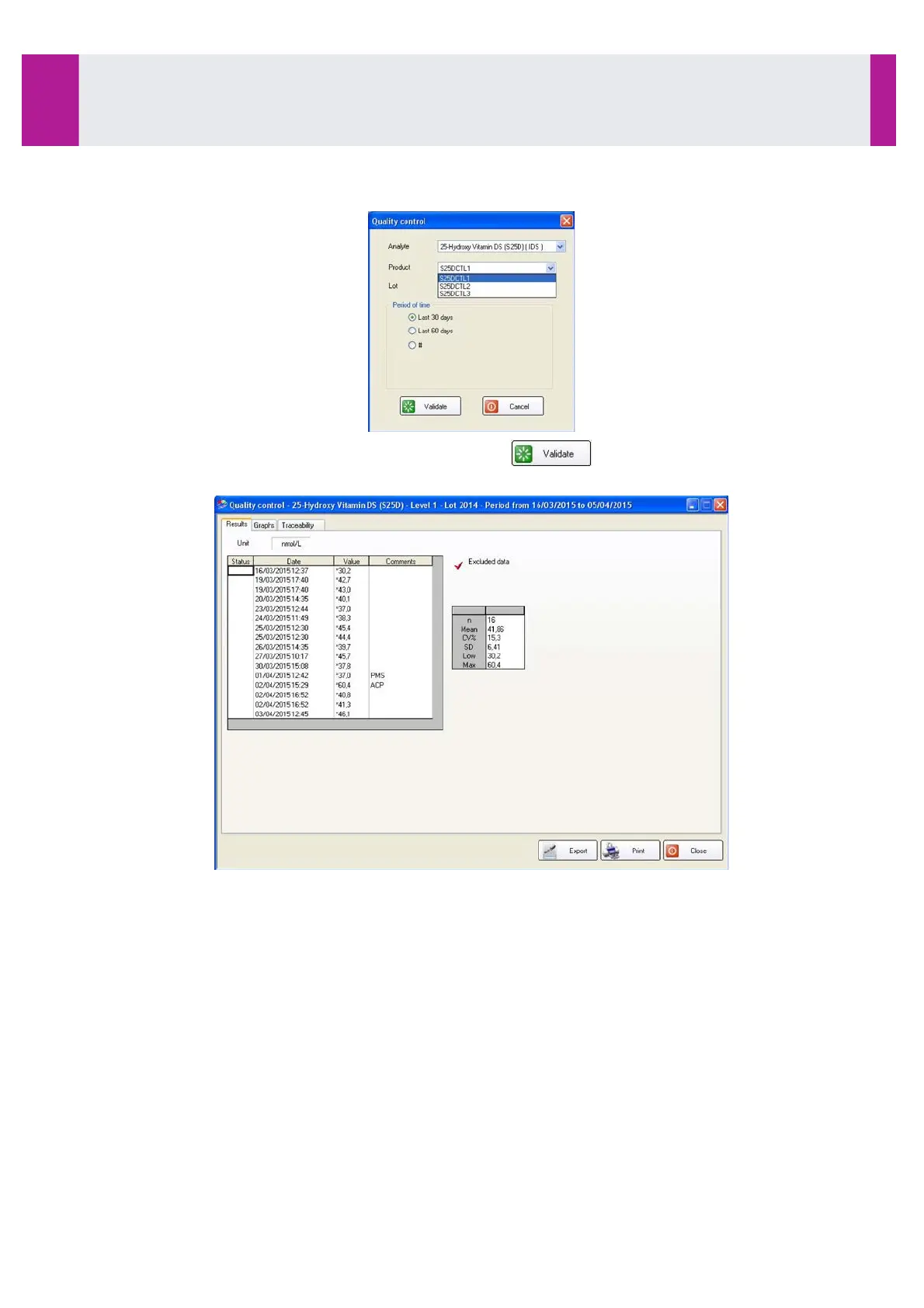

The system displays the active lot of the selected control. Another lot can be selected in the relevant

dropdown list:

•

Select the period of time required for display, then click on .

The results of the control are displayed for the selected time period.

Use

3-13- Quality Control Management

IDS-iSYS User Manual - Revision M1!

Use 3-13

Software version V 14
