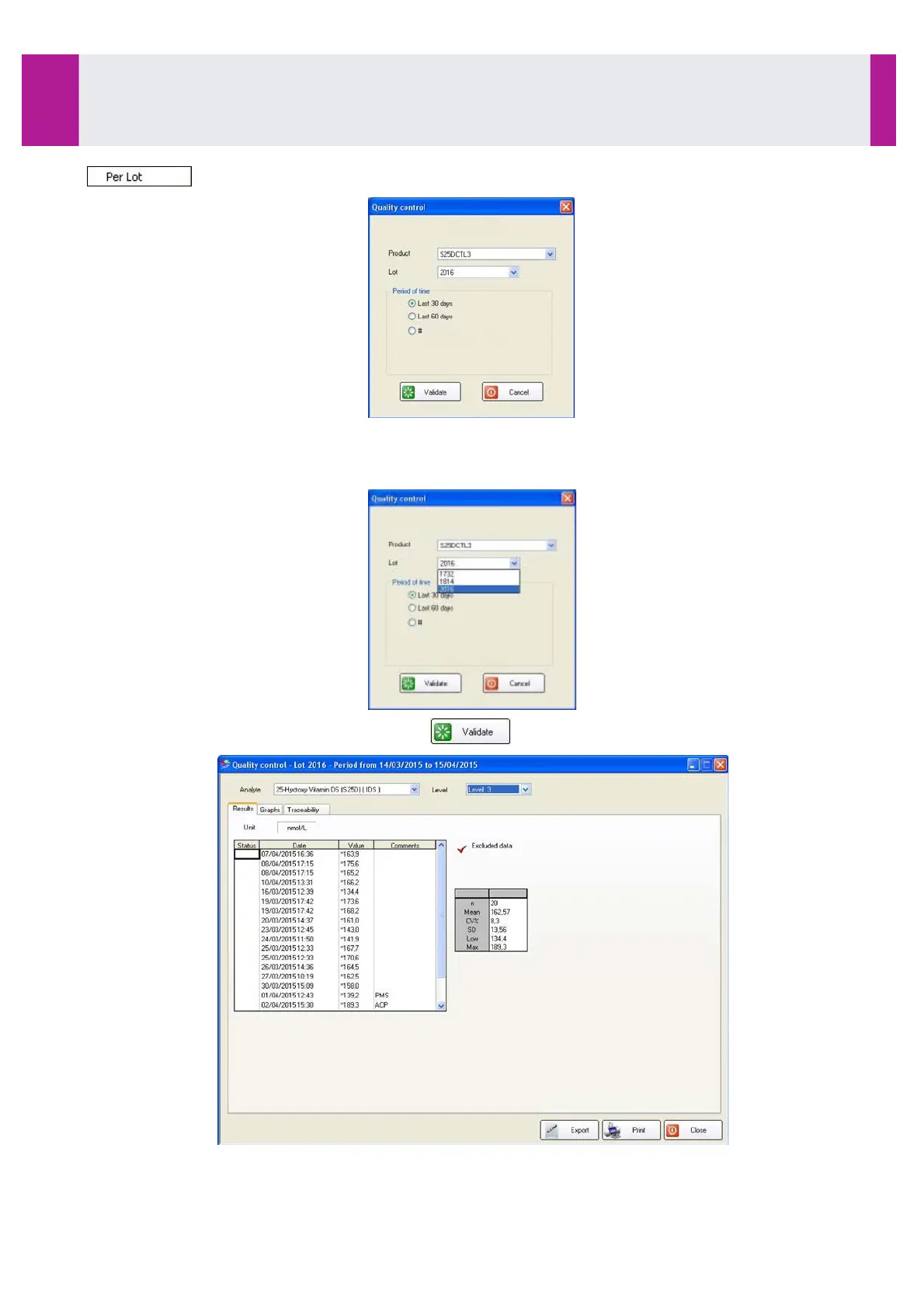

Select the control.

•

The system displays the active lot of the selected control. Another lot can be selected in the relevant

dropdown list:

•

Select the time period of interest, then click on .

•

Then select the test in the relevant dropdown list.

Use

3-13- Quality Control Management (continued)

IDS-iSYS User Manual - Revision M1!

Use 3-13
