WSB-H810 PICMG 1.0 CPU Card

Page 115

6.3 Chipset Driver Installation

To install the chipset driver, please do the following.

Step 1: Access the driver list. (See Section

6.2)

Step 2: Click “1-Chipset”.

Step 3: Locate the setup file and double click on it.

Step 4: When the setup files are completely extracted, the Welcome Screen in

Figure

6-1 appears.

Step 5: Click Next to continue.

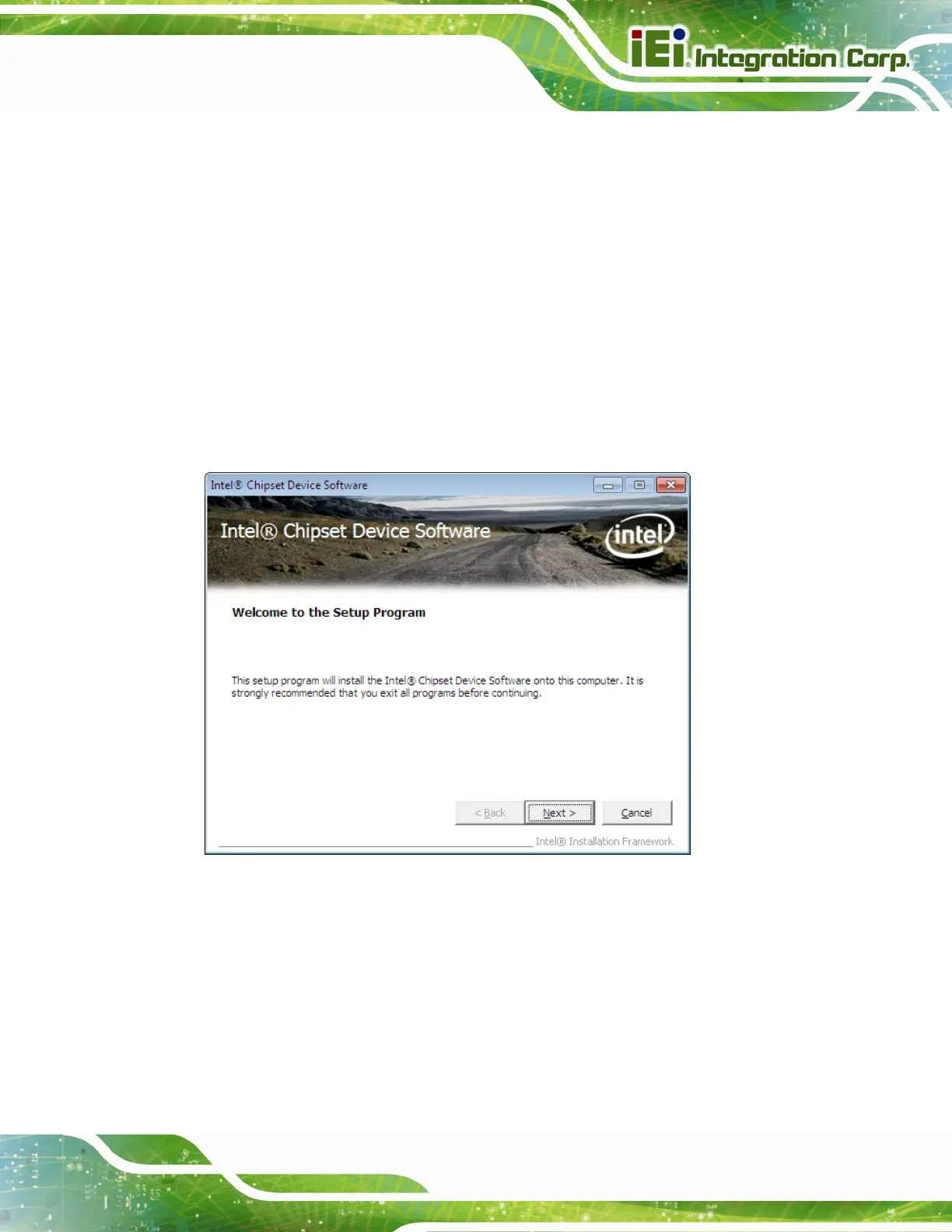

Figure 6-1: Chipset Driver Welcome Screen

Step 6: The license agreement in

Figure 6-2 appears.

Step 7: Read the License Agreement.

Step 8: Click Yes to continue.
