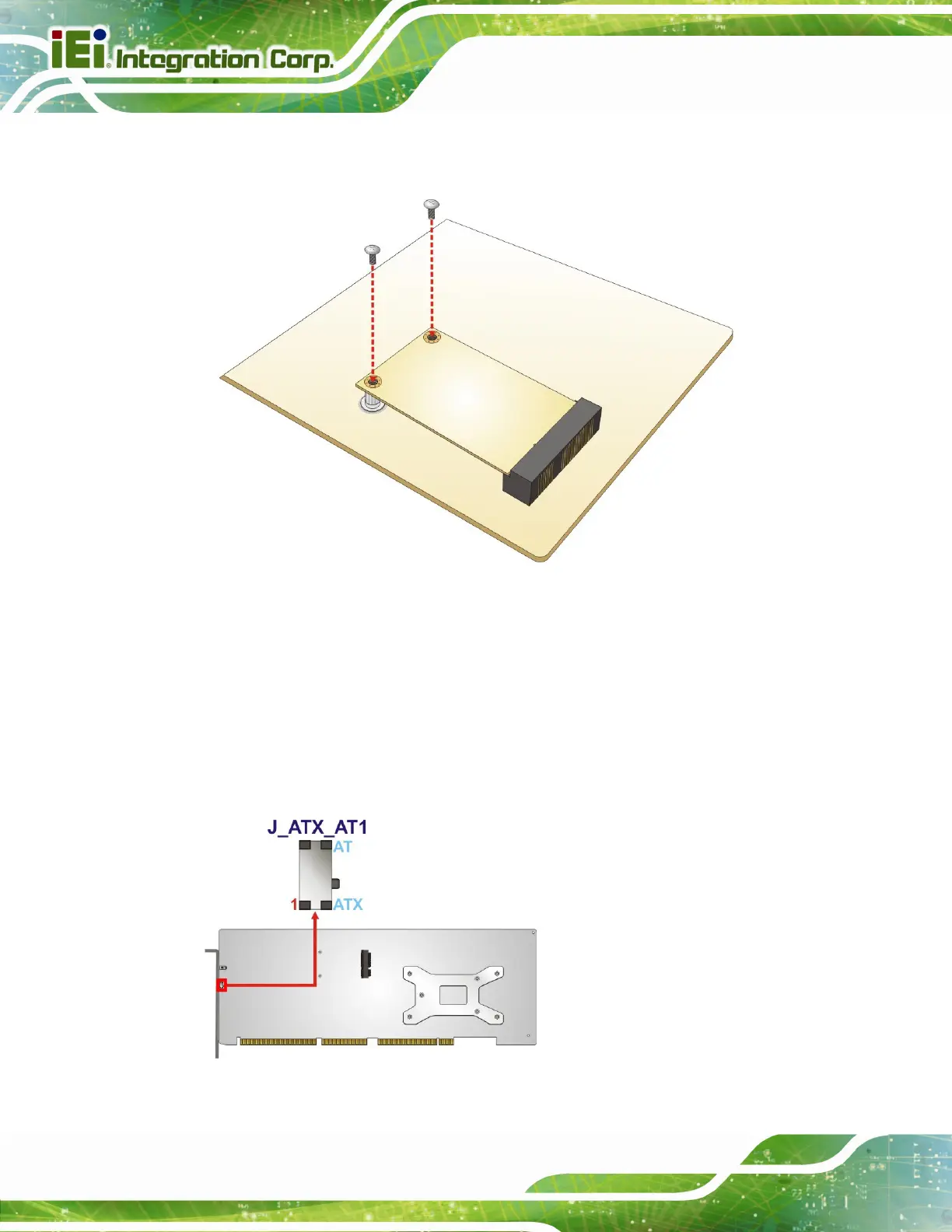

Step 4: Secure the mSATA card. Secure the mSATA card with the retention screws

previously removed (

Figure 4-16). Step 0:

Figure 4-16: Securing the mSATA Card

4.9 System Configuration

The system configuration should be performed before installation.

4.9.1 AT/ATX Power Mode Setting

The AT and ATX power mode selection is made through the AT/ATX power mode switch

which is shown in

Figure 4-17.

Figure 4-17: AT/ATX Power Mode Switch Location

User Manual1
