WSB-H810 PICMG 1.0 CPU Card
Page 47

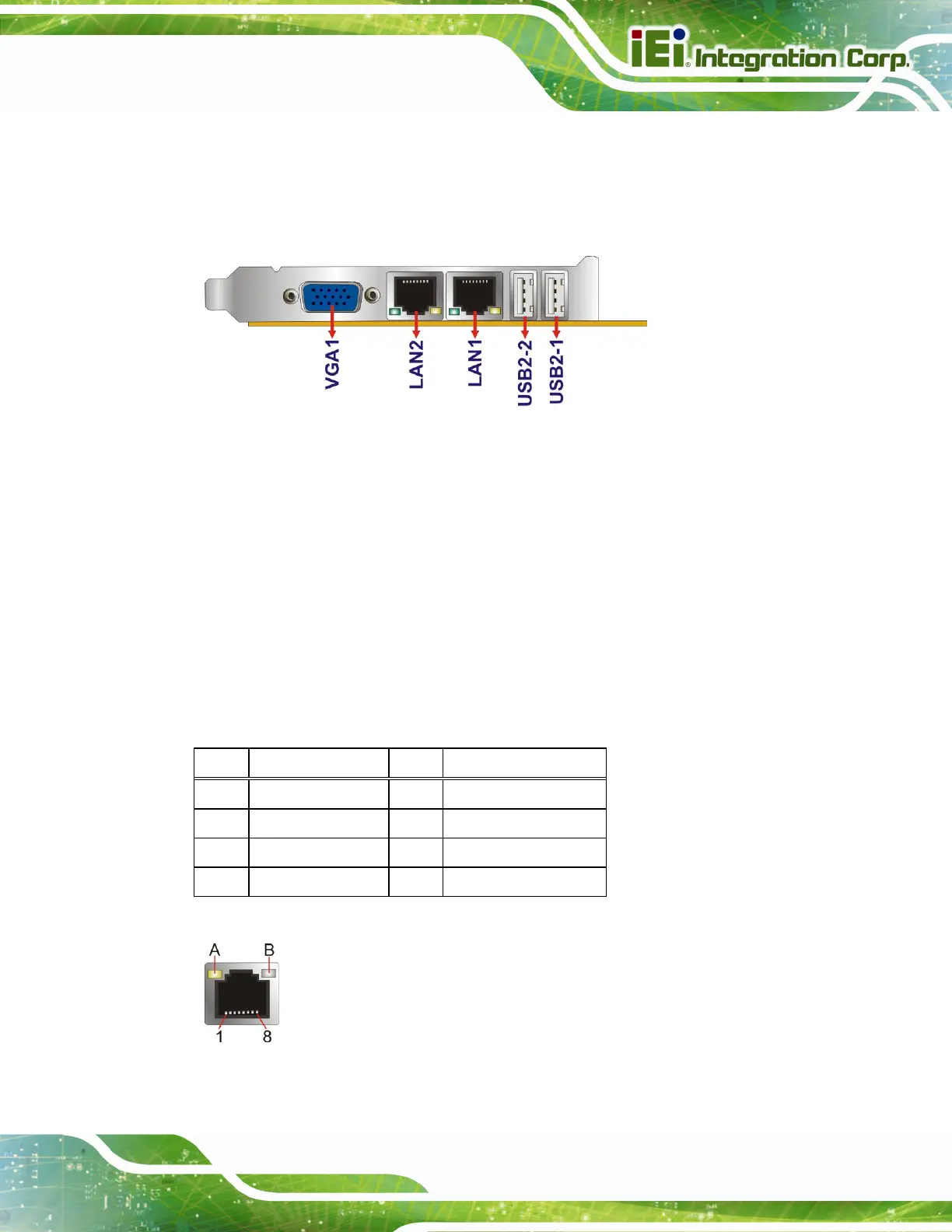

3.3 External Peripheral Interface Connector Panel
The figure below shows the external peripheral interface connector (EPIC) panel. The
EPIC panel consists of the following:
Figure 3-32: External Peripheral Interface Connector
3.3.1 Ethernet Connectors
CN Label:
LAN1 and LAN2
CN Type:
RJ-45
CN Location:
See
Figure 3-32
CN Pinouts:
See
Figure 3-33 and Table 3-34
The WSB-H810 is equipped with two built-in RJ-45 Ethernet controllers. Each controller
can connect to the LAN through one RJ-45 LAN connector.
Pin Description Pin Description
1 MDIA3- 5 MDIA2+
2 MDIA3+ 6 MDIA1+
3 MDIA1- 7 MDIA0-
4 MDIA2- 8 MDIA0+
Table 3-34: LAN Pinouts
Figure 3-33: Ethernet Connector
