WSB-H810 PICMG 1.0 CPU Card
Page 55

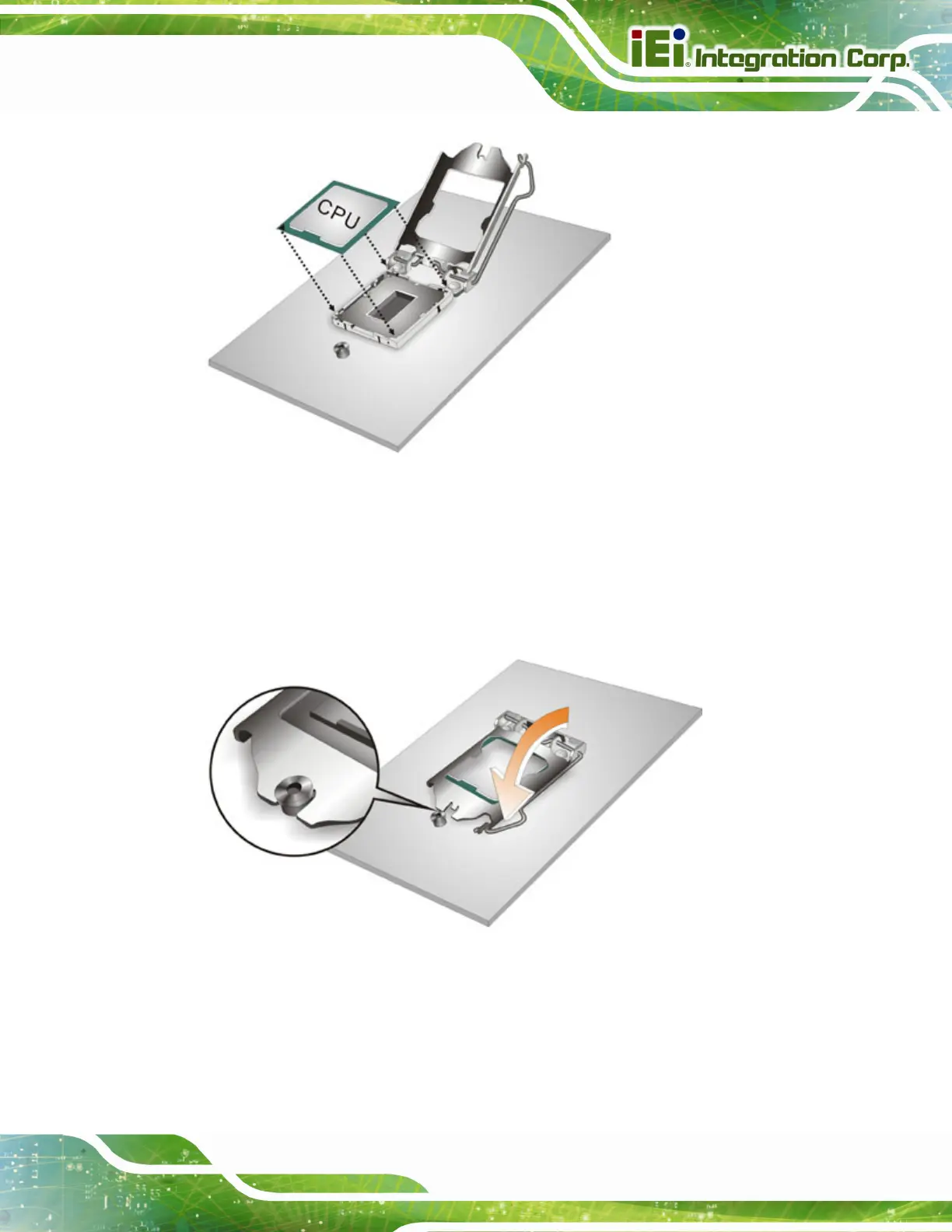

Figure 4-3: Insert the Socket LGA1150 CPU
Step 8: Close the CPU socket. Close the load plate and pull the load lever back a little
to have the load plate be able to secure to the knob. Engage the load lever by
pushing it back to its original position (
Figure 4-4). There will be some
resistance, but will not require extreme pressure.
Figure 4-4: Close the Socket LGA1150
Step 9: Connect the 12 V power to the board. Connect the 12 V power from the power
supply to the board.
