WSB-H810 PICMG 1.0 CPU Card

Page 49

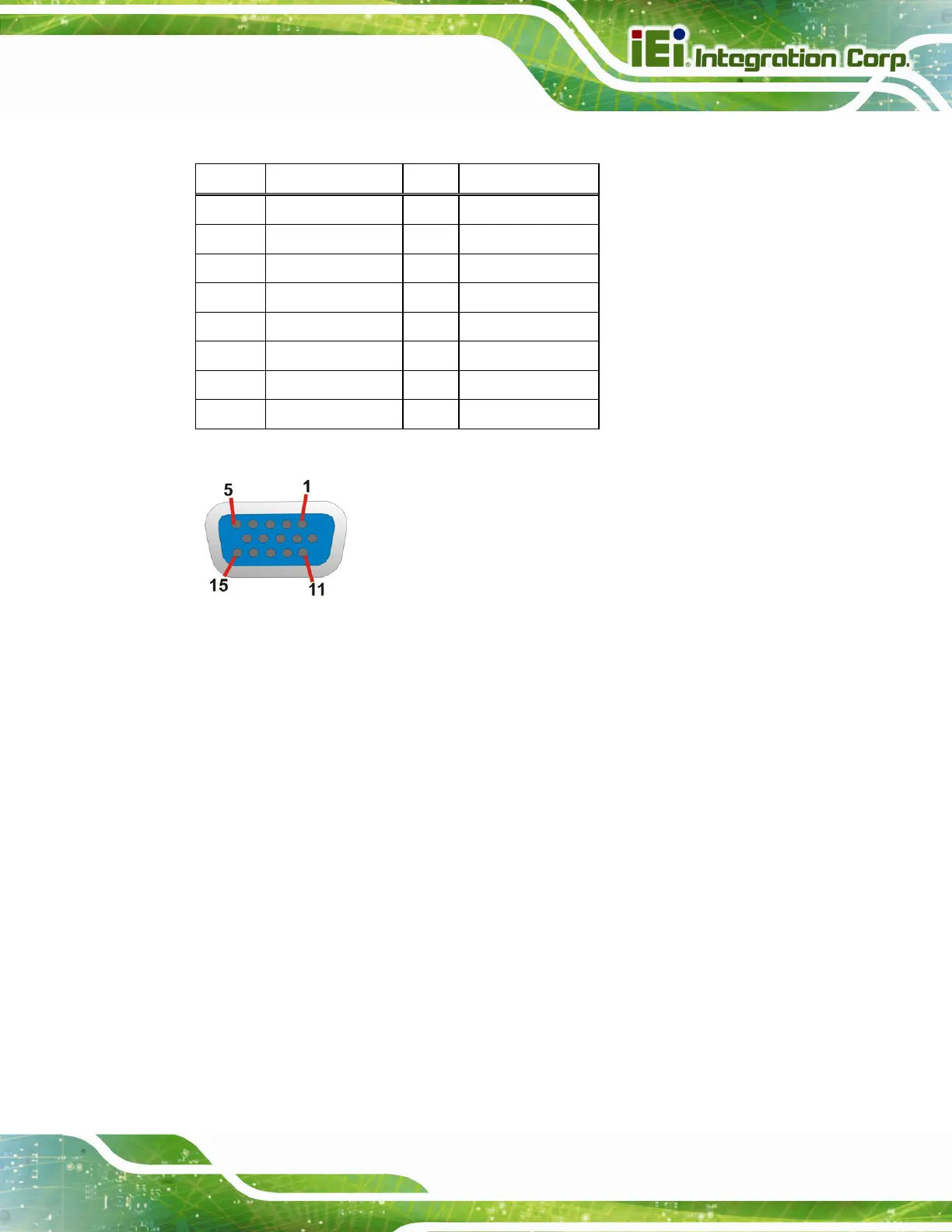

The VGA connector connects to a monitor that accepts a standard VGA input.

Pin Description Pin Description

1 RED 2 GREEN

3 BLUE 4 NC

5 GND 6 GND

7 GND 8 GND

9 VCC 10 GND

11 NC 12 DDCDA

13 HSYNC 14 VSYNC

15 DDCCLK

Table 3-37: VGA Connector Pinouts

Figure 3-34: VGA Connector
