WSB-H810 PICMG 1.0 CPU Card

Page 68

4.11 Internal Peripheral Device Connections

This section outlines the installation of peripheral devices to the onboard connectors.

4.11.1 SATA Drive Connection

The WSB-H810 is shipped with four SATA drive cables. To connect the SATA drives to

the connectors, please follow the steps below.

Step 1: Locate the connectors. The locations of the SATA drive connectors are shown

in Chapter 3.

Step 2: Insert the cable connector. Insert the cable connector into the on-board SATA

drive connector until it clips into place. See

Figure 4-20.

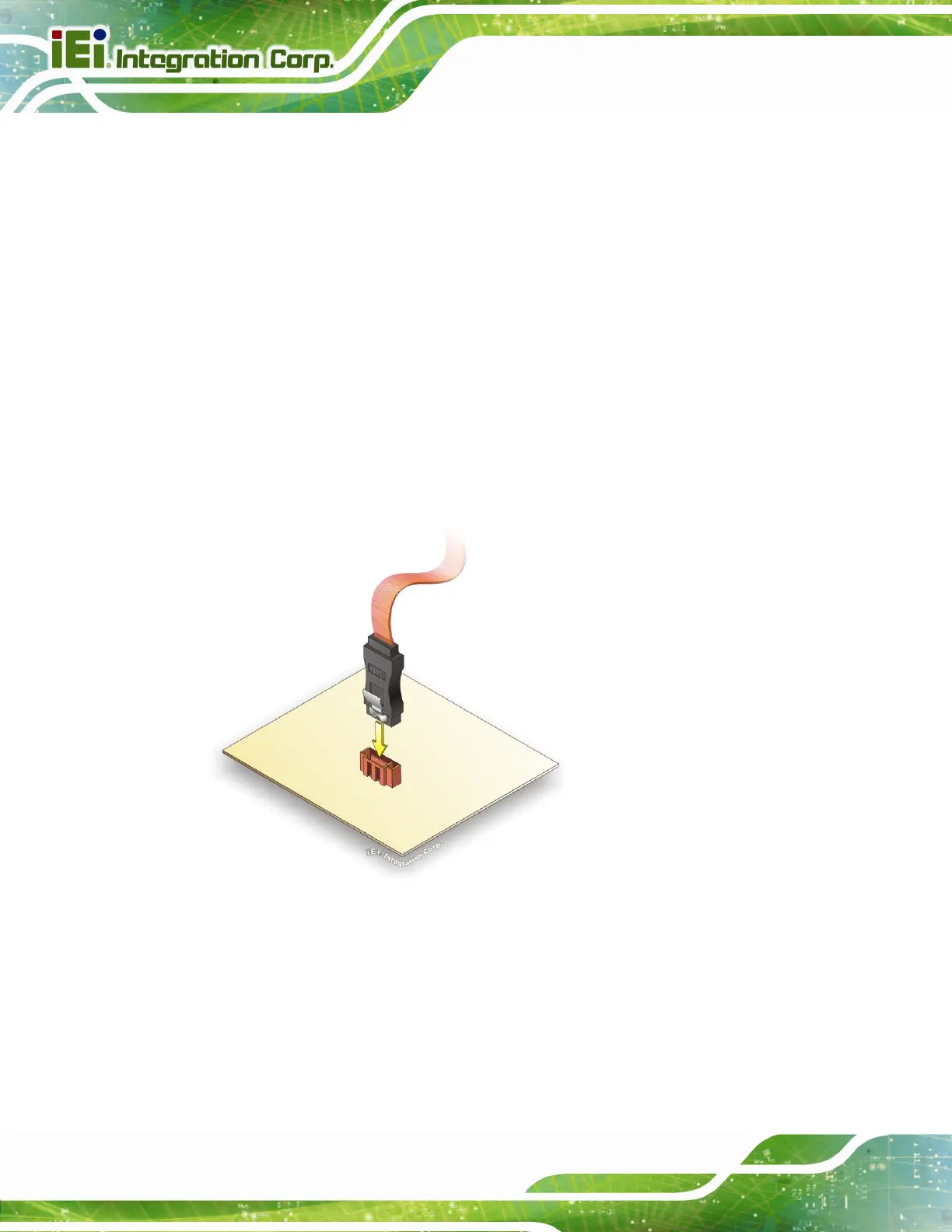

Figure 4-20: SATA Drive Cable Connection

Step 3: Connect the cable to the SATA disk. Connect the connector on the other end

of the cable to the connector at the back of the SATA drive. See

Figure 4-21.
