WSB-H810 PICMG 1.0 CPU Card

Page 25

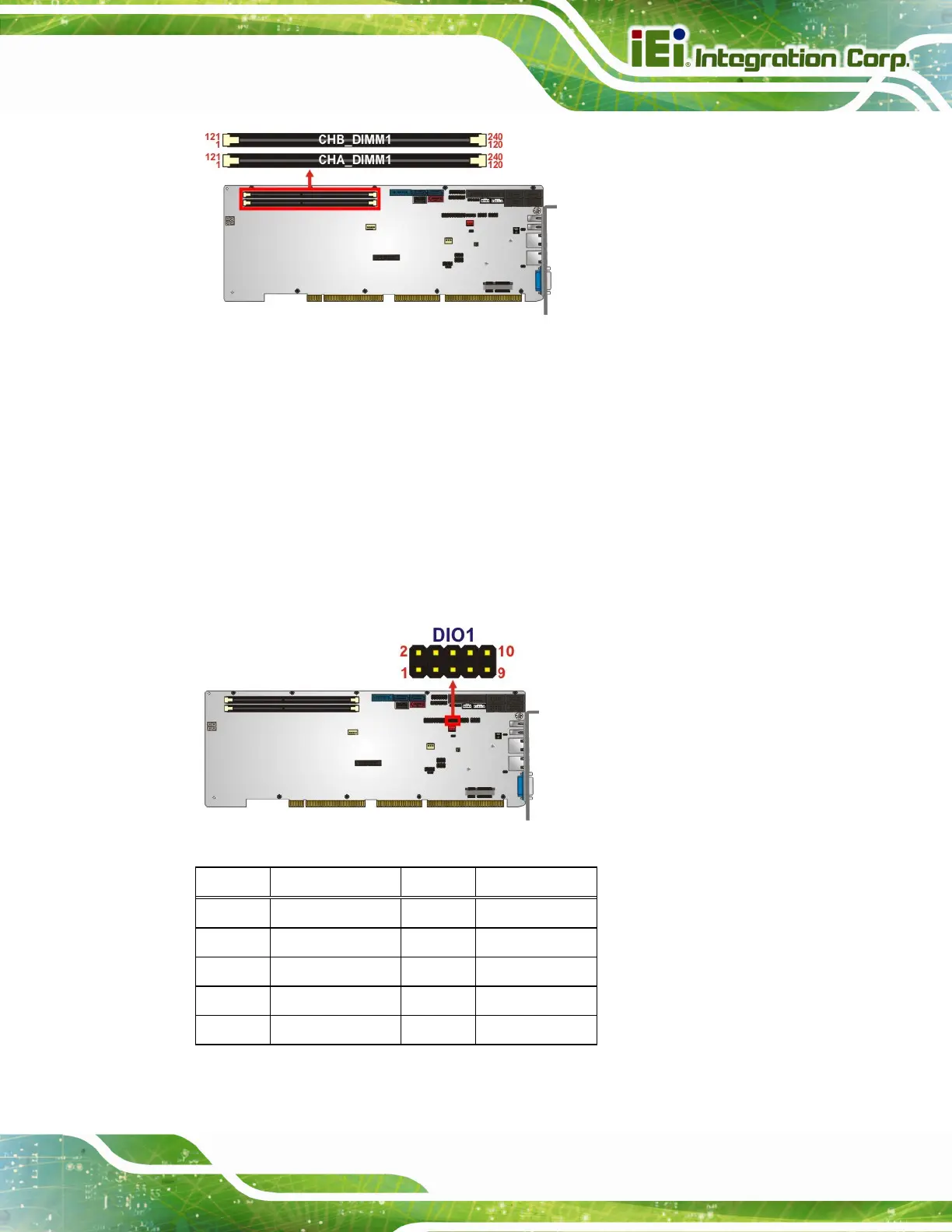

Figure 3-7: DDR3 DIMM Slot Locations

3.2.7 Digital I/O Connector

CN Label: DIO1

CN Type:

10-pin header, p=2 mm

CN Location:

See Figure 3-8

CN Pinouts:

See Table 3-8

The digital I/O connector provides programmable input and output for external devices.

Figure 3-8: Digital I/O Connector Location

Pin Description Pin Description

1 GND 2 VCC

3 Output 3 4 Output 2

5 Output 1 6 Output 0

7 Input 3 8 Input 2

9 Input 1 10 Input 0

Table 3-8: Digital I/O Connector Pinouts
