WSB-H810 PICMG 1.0 CPU Card

Page 32

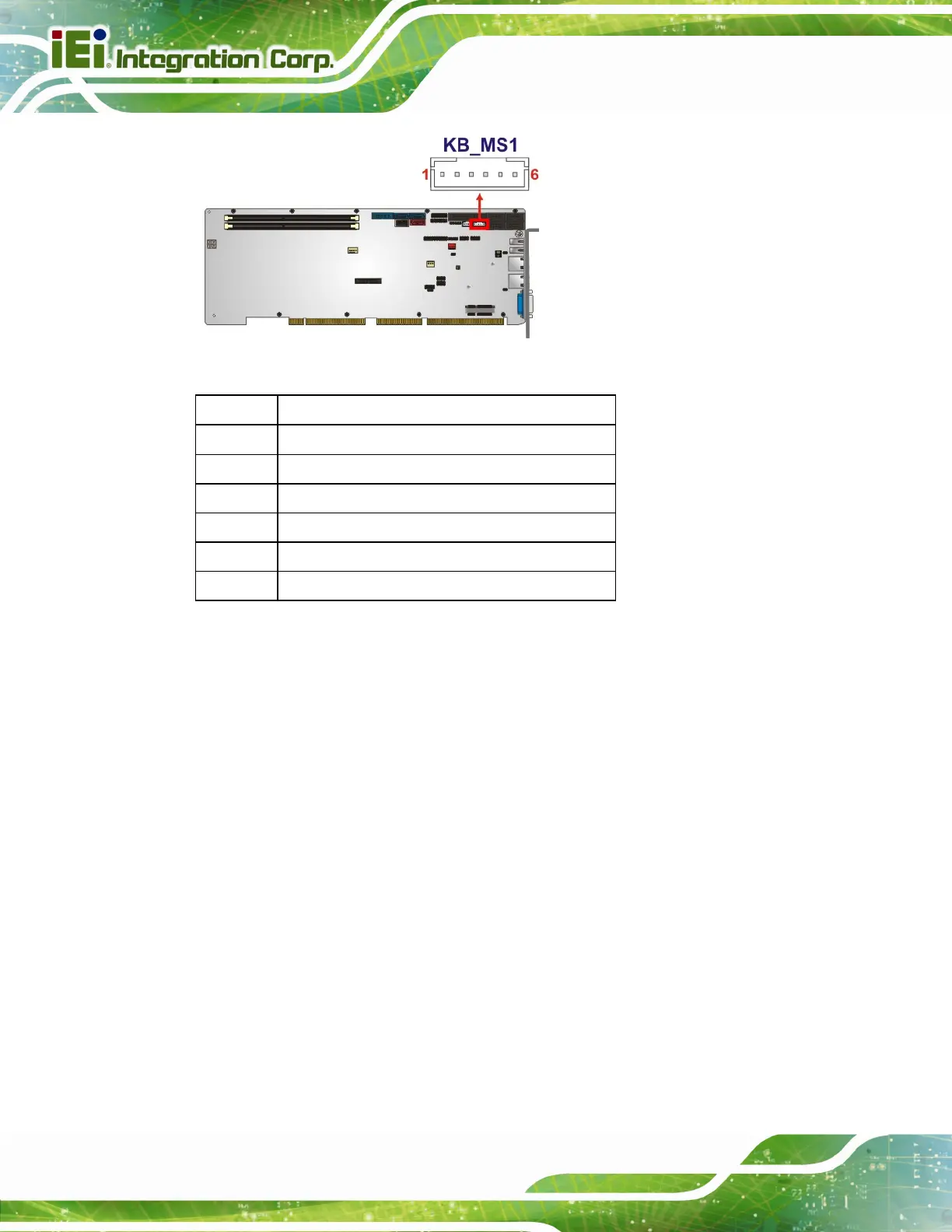

Figure 3-16: Keyboard and Mouse Connector Location

Pin Description

1 +5 VCC

2 Mouse Data

3 Mouse Clock

4 Keyboard Data

5 Keyboard Clock

6 GROUND

Table 3-16: Keyboard and Mouse Connector Pinouts

3.2.16 LAN LED Connectors

CN Label: LED_LAN1, LED_LAN2

CN Type:

2-pin header, p=2.54 mm

CN Location:

See

6Figure 3-17

CN Pinouts:

See

6Table 3-17 and Table 3-18

The LAN LED connectors are used to connect to the LAN LED indicators on the chassis to

indicate users the link activities of the two LAN ports.

User Manual1
