WSB-H810 PICMG 1.0 CPU Card

Page 41

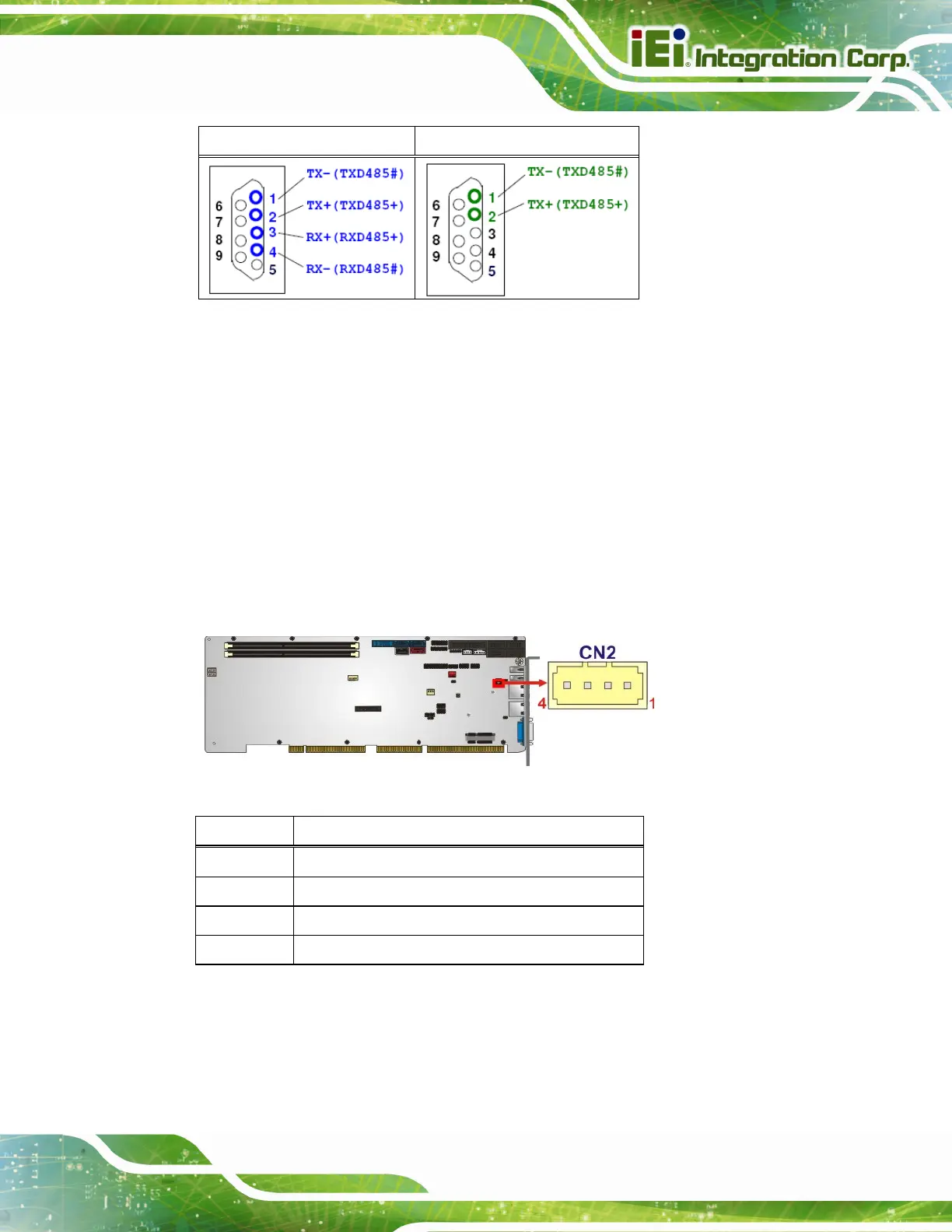

RS-422 Pinouts RS-485 Pinouts

Table 3-26: DB-9 RS-422/485 Pinouts

3.2.24 SMBus Connector

CN Label: CN2

CN Type:

4-pin wafer, p=1.25 mm

CN Location:

See

Figure 3-25

CN Pinouts:

See

Table 3-27

The SMBus (System Management Bus) connector provides low-speed system

management communications.

Figure 3-25: SMBus Connector Location

Pin Description

1 GND

2 SMB_DATA

3 SMB_CLK

4 +5V

Table 3-27: SMBus Connector Pinouts
