WSB-H810 PICMG 1.0 CPU Card

Page 120

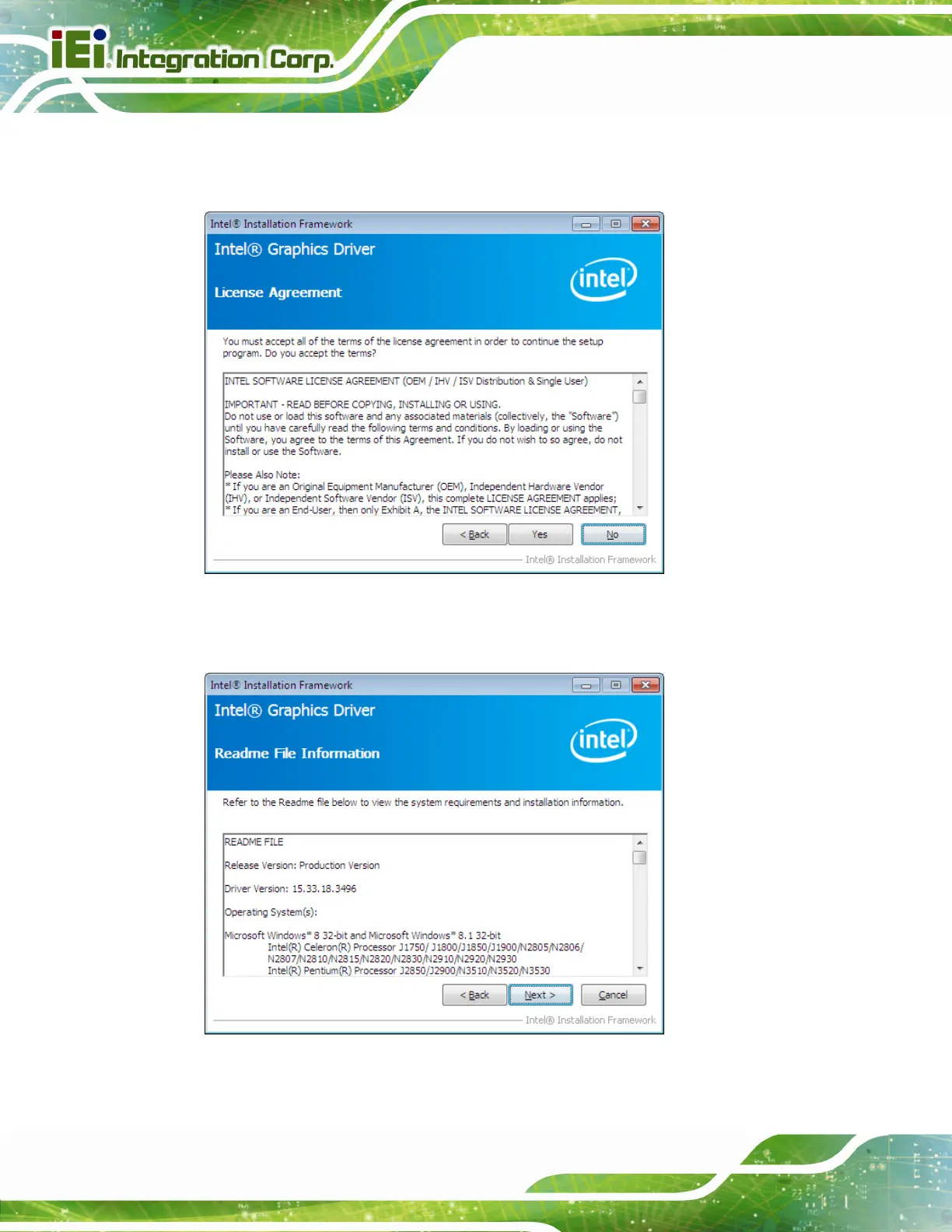

Step 8: The License Agreement in Figure 6-9 appears. Click Yes to accept the

agreement and continue.

Figure 6-9: Graphics Driver License Agreement

Step 9: The Read Me file in

Figure 6-10 appears. Click Next to continue.

Figure 6-10: Graphics Driver Read Me File
