WSB-H810 PICMG 1.0 CPU Card

Page 22

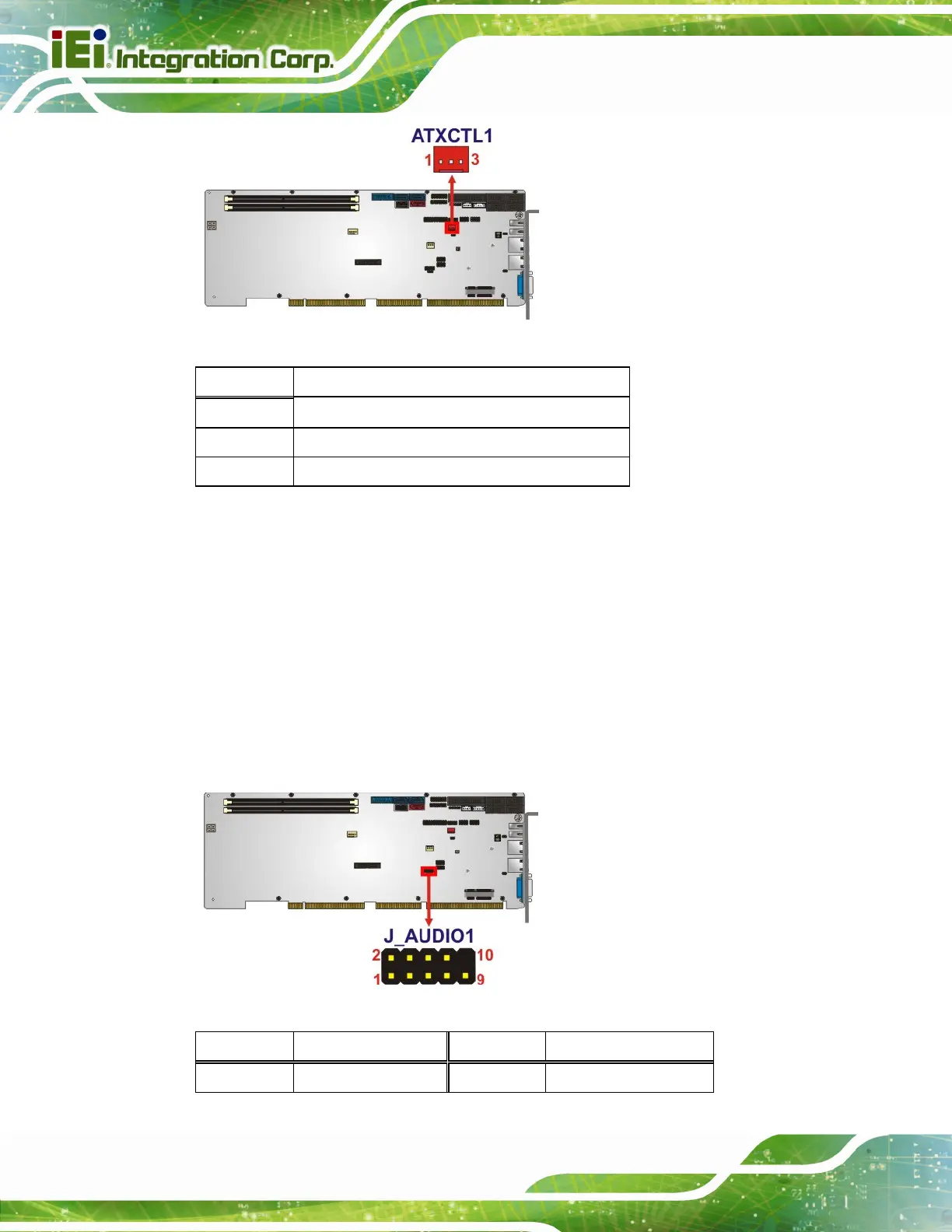

Figure 3-3: ATX Power Supply Enable Connector Location

Pin Description

1 GND

2 PS_ON#

3 5VSB

Table 3-4: ATX Power Supply Enable Connector Pinouts

3.2.3 Audio Kit Connector

CN Label: J_AUDIO1

CN Type:

10-pin header, p=2 mm

CN Location:

See

Figure 3-4

CN Pinouts:

See

Table 3-5

This connector connects to an external audio kit.

Figure 3-4: Audio Kit Connector Location

Pin Description Pin Description

1 HDA_SYNC 2 HDA_BIT_CLK
