WSB-H810 PICMG 1.0 CPU Card

Page 126

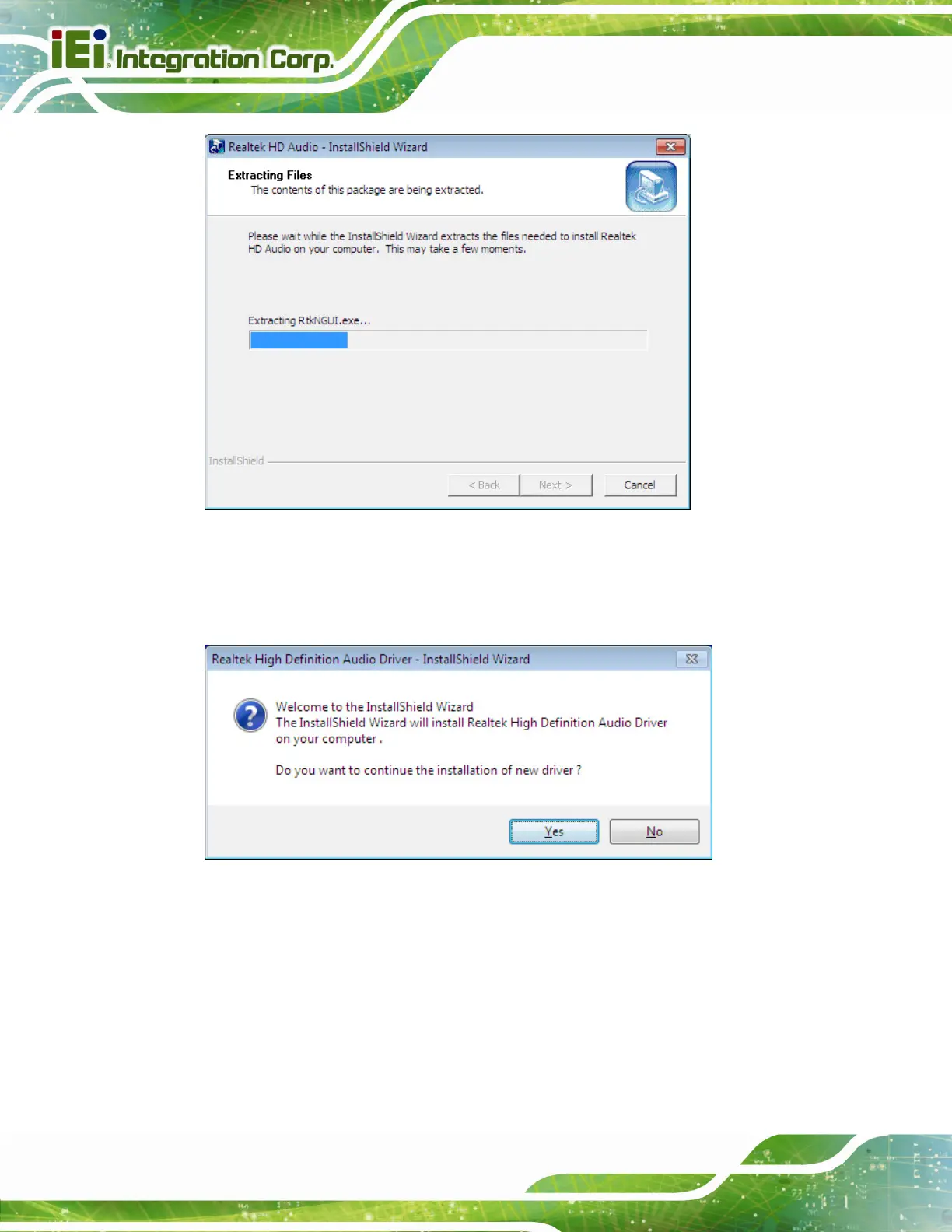

Figure 6-19: Audio Driver – Extracting Files

Step 5: The Audio Driver Installation screen in

Figure 6-20 appears. Click Yes to install

the audio driver.

Figure 6-20: Audio Driver Installation Welcome Screen

Step 6: The driver installation begins.

Step 7: When the driver is installed, the driver installation finish screen in

Figure 6-21

appears. Select “Yes, I want to restart my computer now” and click OK.
