WSB-H810 PICMG 1.0 CPU Card

Page 43

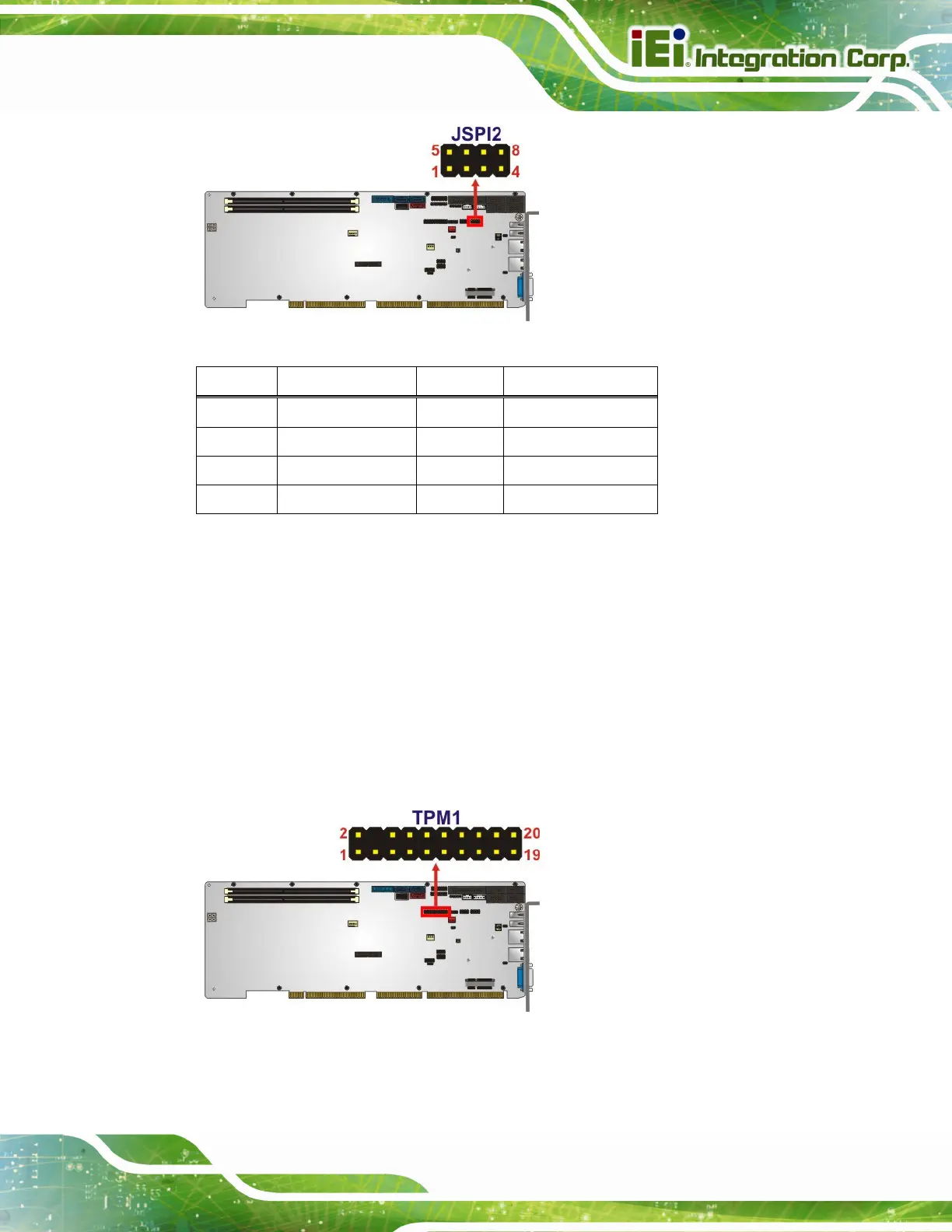

Figure 3-27: SPI EC Flash Connector Location

Pin Description Pin Description

1 +3.3V 2 SPI_CS#

3 SPI_SO 4 NC

5 GND 6 SPI_CLK

7 SPI_SI 8 NC

Table 3-29: SPI EC Flash Connector Pinouts

3.2.27 TPM Connector

CN Label: TPM1

CN Type:

20-pin header, p=2.54 mm

CN Location:

See Figure 3-28

CN Pinouts:

See Table 3-30

The TPM connector connects to a TPM module.

Figure 3-28: TPM Connector Location
