WSB-H810 PICMG 1.0 CPU Card

Page 34

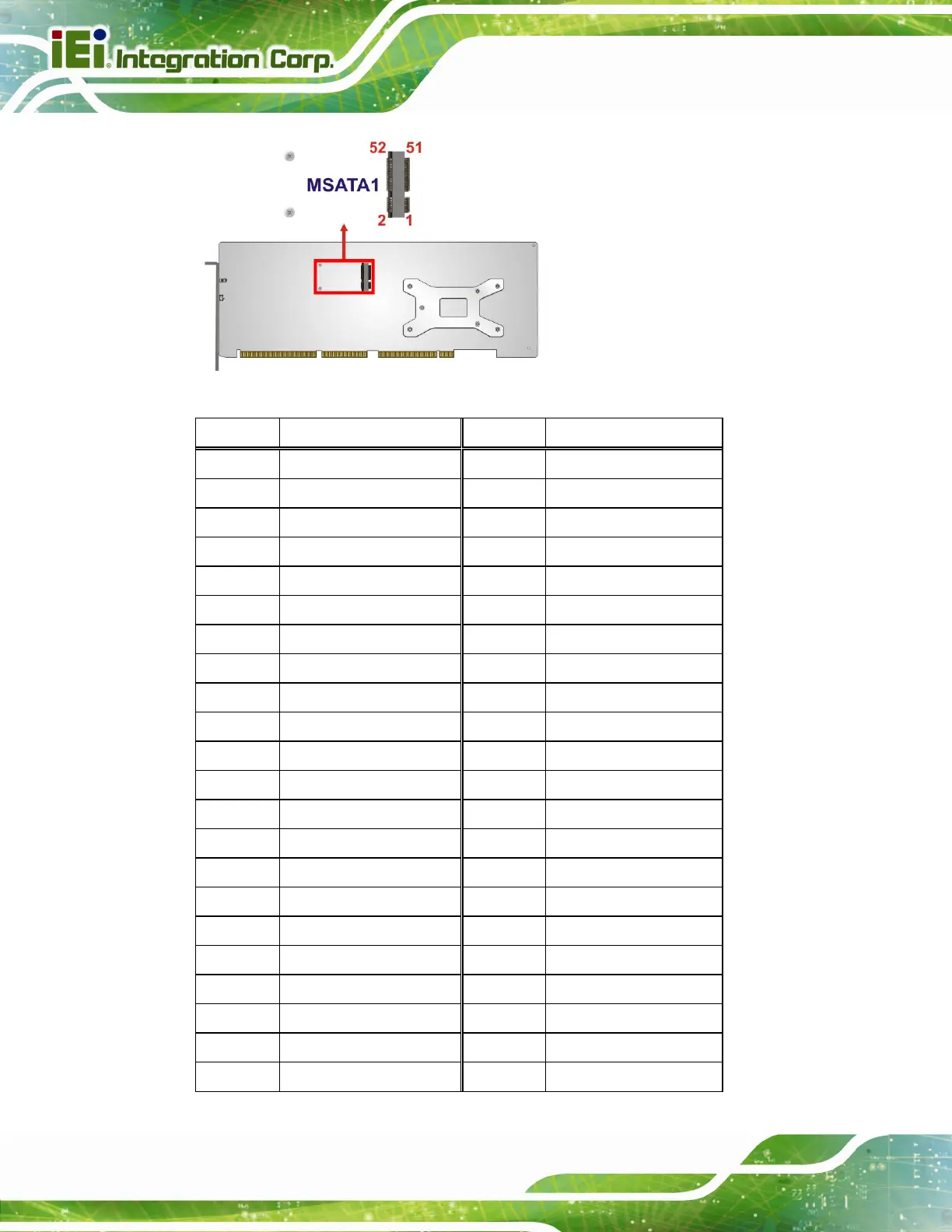

Figure 3-18: mSATA Slot Location

Pin Description Pin Description

PCIE_WAKE#

+3.3V

3 N/C 4

GND

5 N/C 6

1.5V

7 N/C 8

N/C

9 GND 10

N/C

11 N/C 12

N/C

13 N/C 14

N/C

15 GND 16

N/C

17 N/C 18

GND

19 N/C 20

+3.3V

21 GND 22

PLTRST_N

23 SATA_RX+_C 24

+3.3V

25 SATA_RX-_C 26

GND

27 GND 28

1.5V

29 GND 30

SMB_CLK

31 SATA_TX-_C 32

SMB_DATA

33 SATA_TX+_C 34

GND

35 GND 36

N/C

37 GND 38

N/C

39 +3.3V 40

GND

41 +3.3V 42

N/C

43 +3.3V 44

N/C

User Manual1
Table of Contents5
Introduction15
Introduction16
Figure 1-1: WSB-H81016
Features17
Connectors18
Figure 1-2: Connectors18
Dimensions19
Figure 1-3: WSB-H810 Dimensions (MM)19
Figure 1-4: External Interface Panel Dimensions (MM)20
Data Flow21
Figure 1-5: Data Flow Diagram21
Technical Specifications22
Table 1-1: WSB-H810 Specifications24
Packing List25
Anti-Static Precautions26
Unpacking Precautions26
Packing List27
Table 2-1: Packing List27
Optional Items28
Table 2-2: Optional Items30
Connectors31
Peripheral Interface Connectors32
WSB-H810 Layout32
Figure 3-1: Connectors and Jumpers32
Peripheral Interface Connectors33
External Interface Panel Connectors34
Table 3-1: Peripheral Interface Connectors34
Table 3-2: Rear Panel Connectors34
Internal Peripheral Connectors35
Power Connector35
ATX Power Supply Enable Connector35
Figure 3-2: +12V Power Connector Pinout Location35
Table 3-3: +12V Power Connector Pinouts35
Audio Kit Connector36
Figure 3-3: ATX Power Supply Enable Connector Location36
Figure 3-4: Audio Kit Connector Location36
Table 3-4: ATX Power Supply Enable Connector Pinouts36
Battery Connector37
Figure 3-5: Battery Connector Location37
Table 3-5: Audio Kit Connector Pinouts37
Chassis Intrusion Connector38
DDR3 DIMM Slots38
Figure 3-6: Chassis Intrusion Connector Location38
Table 3-6: Battery Connector Pinouts38
Table 3-7: Chassis Intrusion Connector Pinouts38
Digital I/O Connector39
Figure 3-7: DDR3 DIMM Slot Locations39
Figure 3-8: Digital I/O Connector Location39
Table 3-8: Digital I/O Connector Pinouts39
EC Debug Connector40
Fan Connector (CPU)40
Figure 3-9: EC Debug Connector Location40
Table 3-9: EC Debug Connector Pinouts40
Fan Connector (System)41
Figure 3-10: CPU Fan Connector Location41
Table 3-10: CPU Fan Connector Pinouts41
Front Panel Connector42
Figure 3-11: System Fan Connector Location42
Figure 3-12: Front Panel Connector Location42
Table 3-11: System Fan Connector Pinouts42
I 2 C Connector43
Figure 3-13: I 2 C Connector Location43
Table 3-12: Front Panel Connector Pinouts43
Table 3-13: I 2 C Connector Pinouts43
Infrared Connector (Reserved)44
Internal Displayport Connector44
Figure 3-14: Infrared Connector Location44
Table 3-14: Infrared Connector Pinouts44
Keyboard and Mouse Connector45
Figure 3-15: Internal Displayport Connector Location45
Table 3-15: Internal Displayport Connector Pinouts45
LAN LED Connectors46
Figure 3-16: Keyboard and Mouse Connector Location46
Table 3-16: Keyboard and Mouse Connector Pinouts46
Msata Slot47
Figure 3-17: LAN LED Connector Locations47
Table 3-17: LAN1 LED Connector (LED_LAN1) Pinouts47
Table 3-18: LAN2 LED Connector (LED_LAN2) Pinouts47
Figure 3-18: Msata Slot Location48
Parallel Port Connector49
Figure 3-19: Parallel Port Connector Location49
Table 3-19: Msata Slot Pinouts49
Pcie Mini Slot50
Figure 3-20: Pcie Mini Slot Location50
Table 3-20: Parallel Port Connector Pinouts50
SATA 3Gb/S Drive Connector51
Table 3-21: Pcie Mini Slot Pinouts51
SATA 6Gb/S Drive Connectors52
Figure 3-21: SATA 3Gb/S Drive Connector Location52
Table 3-22: SATA 3Gb/S Drive Connector Pinouts52
Serial Port Connectors, RS-23253
Figure 3-22: SATA 6Gb/S Drive Connector Locations53
Figure 3-23: Serial Port Connector Locations53
Table 3-23: SATA 6Gb/S Drive Connector Pinouts53
Serial Port Connector, RS-422/48554
Figure 3-24: RS-422/485 Connector Location54
Table 3-24: Serial Port Connector Pinouts54
Table 3-25: RS-422/485 Connector Pinouts54
Smbus Connector55
Figure 3-25: Smbus Connector Location55
Table 3-26: DB-9 RS-422/485 Pinouts55
Table 3-27: Smbus Connector Pinouts55
SPI Flash Connector56
SPI Flash Connector (EC)56
Figure 3-26: SPI Flash Connector Location56
Table 3-28: SPI Flash Connector Pinouts56
TPM Connector57
Figure 3-27: SPI EC Flash Connector Location57
Figure 3-28: TPM Connector Location57
Table 3-29: SPI EC Flash Connector Pinouts57
USB 2.0 Connectors58
Figure 3-29: USB 2.0 Connector Pinout Locations58
Table 3-30: TPM Connector Pinouts58
USB 2.0 Connector (Type A)59
USB 3.0 Connector59
Figure 3-30: USB 2.0 Connector (Type A) Pinout Location59
Table 3-31: USB 2.0 Connector Pinouts59
Table 3-32: USB 2.0 Connector (Type A) Pinouts59
Figure 3-31: USB 3.0 Connector Location60
Table 3-33: USB 3.0 Connector Pinouts60
External Peripheral Interface Connector Panel61
Ethernet Connectors61
Figure 3-32: External Peripheral Interface Connector61
Figure 3-33: Ethernet Connector61
Table 3-34: LAN Pinouts61
USB 2.0 Connectors62
VGA Connector62
Table 3-35: Connector Leds62
Table 3-36: USB 2.0 Port Pinouts62
Figure 3-34: VGA Connector63
Table 3-37: VGA Connector Pinouts63
Installation64
Anti-Static Precautions65
Installation Considerations65
Socket Lga1150 Cpu Installation67
Figure 4-1: Disengage the CPU Socket Load Lever67
Figure 4-2: Remove Protective Cover68
Figure 4-3: Insert the Socket LGA1150 CPU69
Figure 4-4: Close the Socket LGA115069
Socket Lga1150 Cooling Kit Installation70
Figure 4-5: Cooling Kit Support Bracket70
DIMM Installation71
Figure 4-6: DIMM Installation71
Full-Size Pcie Mini Card Installation72
Figure 4-7: Removing the Retention Screw and Standoff for a Half-Size Pcie Mini Card72
Figure 4-8: Removing the Retention Screw73
Figure 4-9: Inserting the Full-Size Pcie Mini Card into the Slot at an Angle73
Half-Size Pcie Mini Card Installation74
Figure 4-10: Securing the Full-Size Pcie Mini Card74
Figure 4-11: Removing the Retention Screw75
Figure 4-12: Inserting the Half-Size Pcie Mini Card into the Slot at an Angle75
Msata Card Installation76
Figure 4-13: Securing the Half-Size Pcie Mini Card76
Figure 4-14: Removing the Retention Screws77
Figure 4-15: Inserting the Msata Card into the Slot at an Angle77
System Configuration78
AT/ATX Power Mode Setting78
Figure 4-16: Securing the Msata Card78
Figure 4-17: AT/ATX Power Mode Switch Location78
Clear CMOS Button79
Flash Descriptor Security Override79
Figure 4-18: Clear CMOS Button Location79
Table 4-1: AT/ATX Power Mode Switch Settings79
Table 4-2: Flash Descriptor Security Override Jumper Settings79
USB Power Selection80
Figure 4-19: Flash Descriptor Security Override Jumper Location80
Table 4-3: BIOS Options and Configured USB Ports80
Chassis Installation81
Airflow81
CPU Card Installation81
Table 4-4: USB Power Source Setup81
Internal Peripheral Device Connections82
SATA Drive Connection82
Figure 4-20: SATA Drive Cable Connection82
Figure 4-21: SATA Power Drive Connection83
Bios84
Introduction85
Starting Setup85
Using Setup85
Getting Help86
Unable to Reboot after Configuration Changes86
BIOS Menu Bar86
Table 5-1: BIOS Navigation Keys86
Main87
Advanced88
ACPI Settings89
RTC Wake Settings90
Trusted Computing92
CPU Configuration93
SATA Configuration95
USB Configuration97
F81866 Super IO Configuration98
Serial Port N Configuration98
Irda Configuration103
Parallel Port Configuration105
Iwdd H/W Monitor106
Smart Fan Mode Configuration107
Serial Port Console Redirection108
BIOS Menu 15: Serial Port Console Redirection109
Iei Feature111
Chipset112
PCH-IO Configuration113
Table 5-2: BIOS Options and Configured USB Ports114
PCI Express Configuration115
PCH Azalia Configuration117
System Agent (SA) Configuration118
Graphics Configuration118
BIOS Menu 23: Graphics Configuration119
Lcd Control120
NB Pcie Configuration121
Memory Configuration122
Boot123
Security125
Save & Exit125
BIOS Menu 29: Save & Exit126
Software Drivers127
Available Software Drivers128
Software Installation128
Chipset Driver Installation129
Figure 6-1: Chipset Driver Welcome Screen129
Figure 6-2: Chipset Driver License Agreement130
Figure 6-3: Chipset Driver Read Me File130
Figure 6-4: Chipset Driver Setup Progress131
Figure 6-5: Chipset Driver Installation Finish Screen131
Graphics Driver Installation132
Figure 6-6: Graphics Driver Installshield Wizard132
Figure 6-7: Graphics Driver - Extracting Files133
Figure 6-8: Graphics Driver Welcome Screen133
Figure 6-9: Graphics Driver License Agreement134
Figure 6-10: Graphics Driver Read Me File134
Figure 6-11: Graphics Driver Setup Progress135
Figure 6-12: Graphics Driver Installation Finish Screen135
Lan Driver Installation136
Figure 6-13: Windows Control Panel136
Figure 6-14: System Control Panel136
Figure 6-15: Device Manager List137
Figure 6-16: Update Driver Software Window138
Figure 6-17: Locate Driver Files138
Audio Driver Installation139
Figure 6-18: LAN Driver Installation139
Figure 6-19: Audio Driver - Extracting Files140
Figure 6-20: Audio Driver Installation Welcome Screen140
Usb 3.0 Driver Installation141
Figure 6-21: Audio Driver Installation Complete141
Figure 6-22: USB 3.0 Driver Welcome Screen142
Figure 6-23: USB 3.0 Driver License Agreement142
Figure 6-24: USB 3.0 Driver Read Me File143
Figure 6-25: USB 3.0 Driver Setup Operations143
Figure 6-26: USB 3.0 Driver Installation Finish Screen144
A Regulatory Compliance145
B Product Disposal147
CBIOS Options149
D Terminology153
E Digital I/O Interface157
Introduction158
E.1 I Ntroduction158
Assembly Language Sample 1159
Assembly Language Sample 2159
E.2 a Ssembly L Anguage S Ample 1159
F Watchdog Timer160
G Hazardous Materials Disclosure163
