WSB-H810 PICMG 1.0 CPU Card

Page 46

CN Pinouts:

See Table 3-33

The USB 3.0 connector connects to USB 3.0 devices. This connector provides two

USB 3.0 ports.

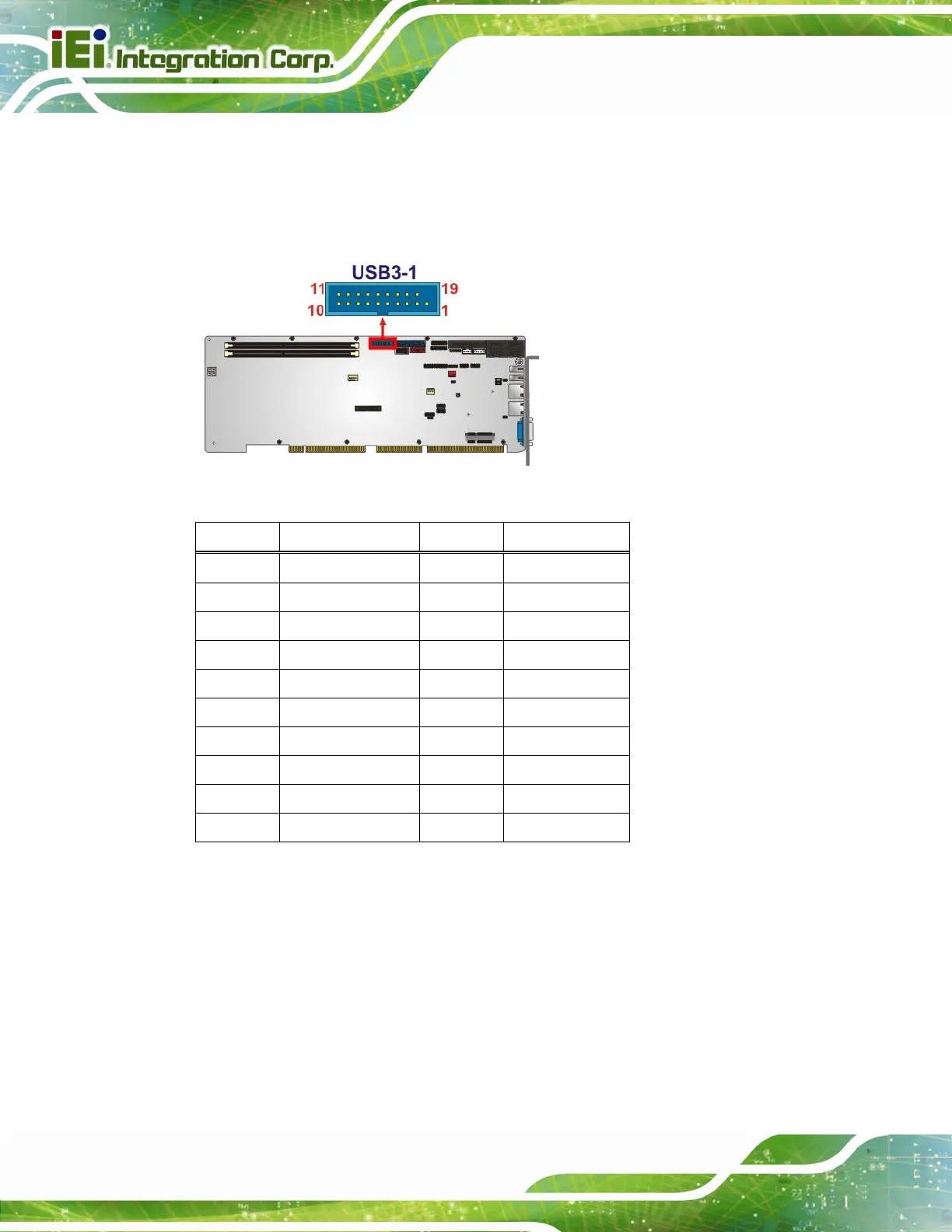

Figure 3-31: USB 3.0 Connector Location

Pin Description Pin Description

1 VCC 11 USB_DATA+

2 USB3_RX- 12 USB_DATA-

3 USB3_RX+ 13 GND

4 GND 14 USB3_TX+

5 USB3_TX- 15 USB3_TX-

6 USB3_TX+ 16 GND

7 GND 17 USB3_RX+

8 USB_DATA- 18 USB3_RX-

9 USB_DATA+ 19 VCC

10 NC

Table 3-33: USB 3.0 Connector Pinouts
