WSB-H810 PICMG 1.0 CPU Card

Page 30

3.2.13 Infrared Connector (Reserved)

CN Label: IR1

CN Type:

5-pin header, p=2.54 mm

CN Location:

See

Figure 3-14

CN Pinouts:

See

Table 3-14

The infrared connector attaches to an infrared receiver for use with remote controls.

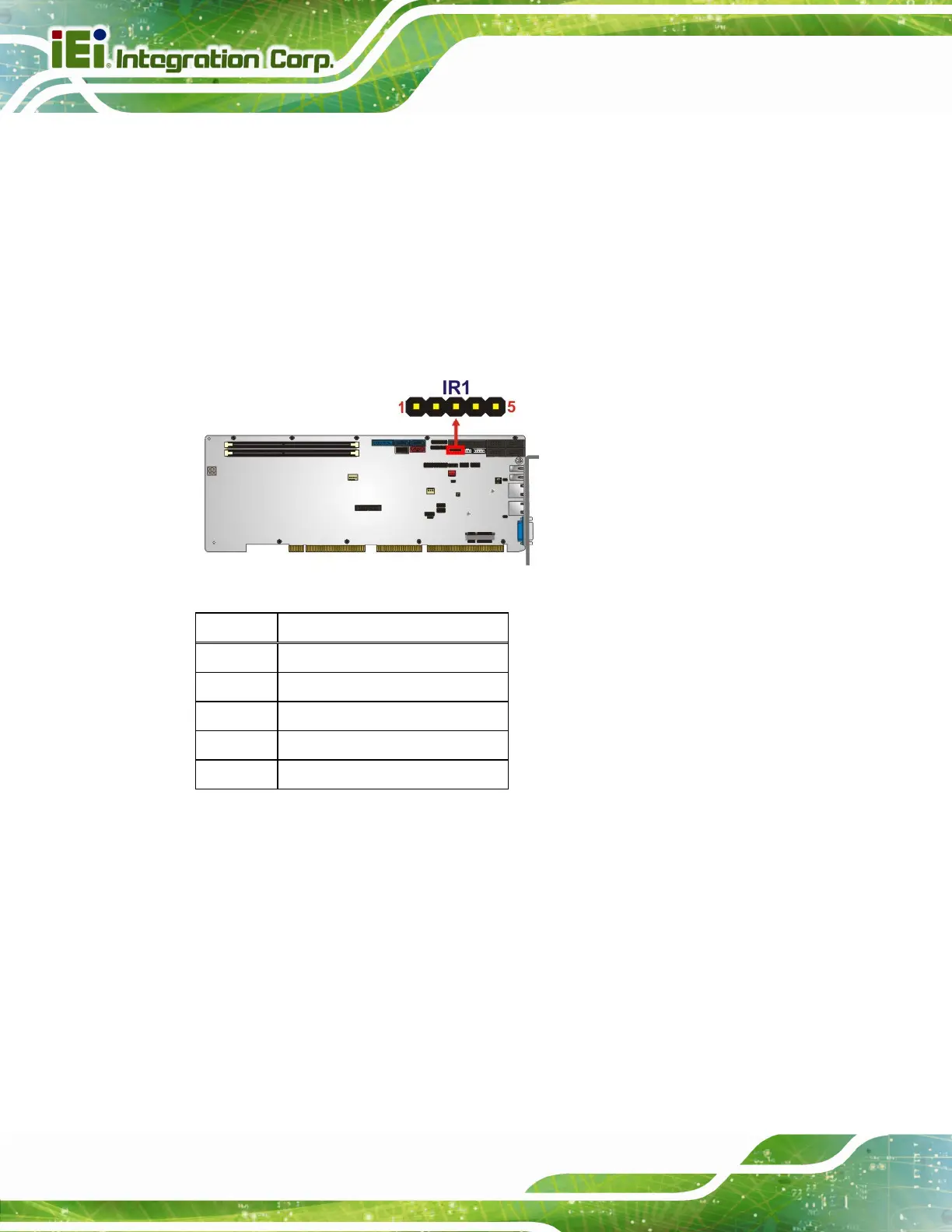

Figure 3-14: Infrared Connector Location

Pin Description

+V5S

2 NC

3 IR-RX

4 GND

5 IR-TX

Table 3-14: Infrared Connector Pinouts

3.2.14 Internal DisplayPort Connector

CN Label: DP1

CN Type:

19-pin box header, p=2 mm

CN Location:

See

Figure 3-15

CN Pinouts:

See

Table 3-15

The DisplayPort connector supports HDMI, LVDS, VGA, DVI and DisplayPort graphics

interfaces with up to 3840x2160 resolutions.
