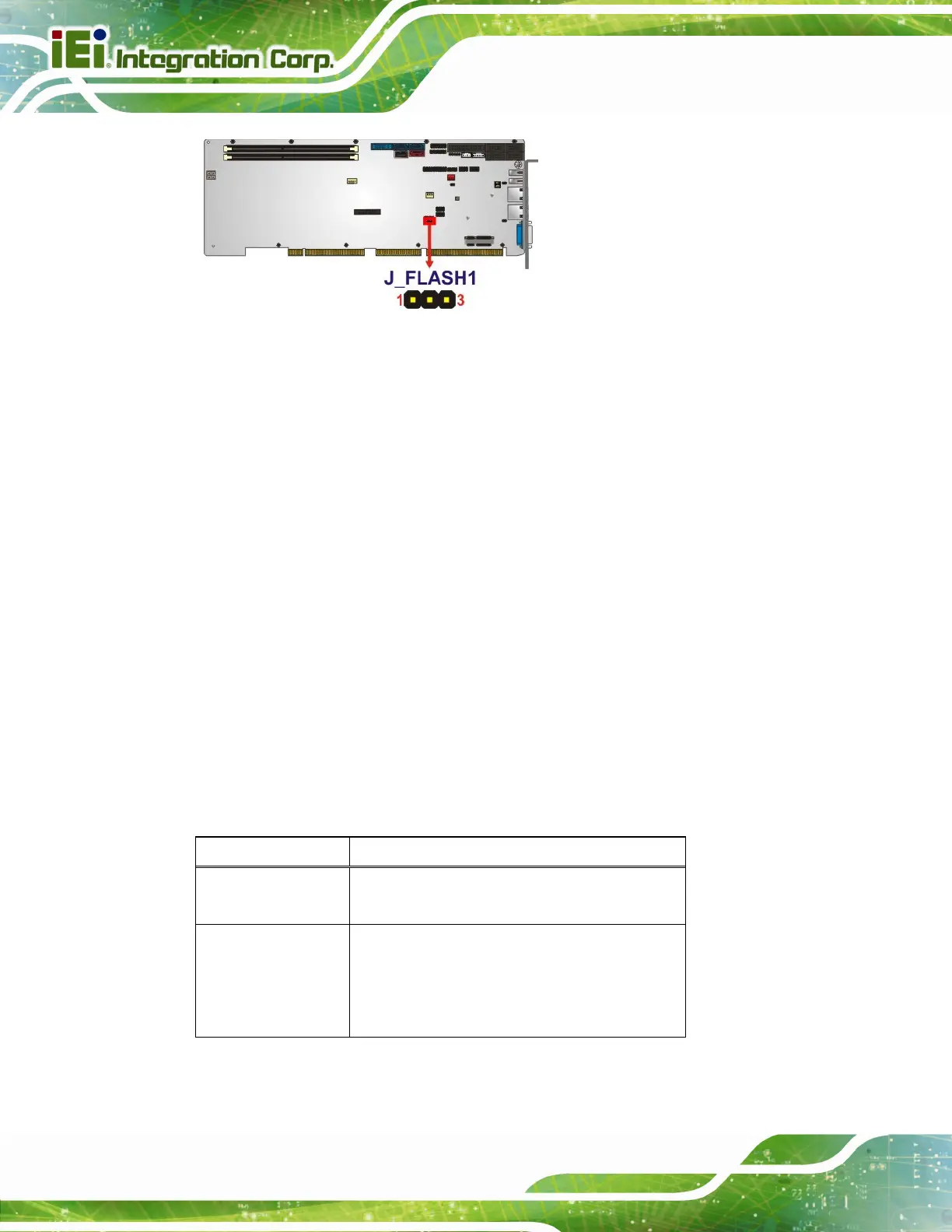

Figure 4-19: Flash Descriptor Security Override Jumper Location
To update the ME firmware, please follow the steps below.
Step 1: Before turning on the system power, short pin 2-3 of the Flash Descriptor
Security Override jumper.
Step 2: Update the BIOS and ME firmware, and then turn off the system power.
Step 3: Remove the metal clip on the Flash Descriptor Security Override jumper or
return to its default setting (short pin 1-2).
Step 4: Restart the system. The system will reboot 2 ~ 3 times to complete the ME
firmware update.Step 0:
4.9.4 USB Power Selection
The USB power selection is made through the BIOS menu in “Chipset Æ PCH-IO Configuration”.
Use the USB Power SW1 and the USB Power SW2 BIOS options to configure the
correspondent USB ports (see
Table 4-3) and refer to Table 4-4 to select the USB power source.
BIOS Options Configured USB Ports
USB Power SW1
USB2-1 (external USB 2.0 port)
USB2-2 (external USB 2.0 port)
USB Power SW2
USB2-4 (internal USB 2.0 ports)
USB2-5 (internal USB 2.0 ports)
USB2-3 (internal USB 2.0 port, Type A)
USB3-1 (internal USB 3.0 ports)
Table 4-3: BIOS Options and Configured USB Ports
