WSB-H810 PICMG 1.0 CPU Card

Page 125

Step 11: Driver Installation is performed as shown in Figure 6-18.

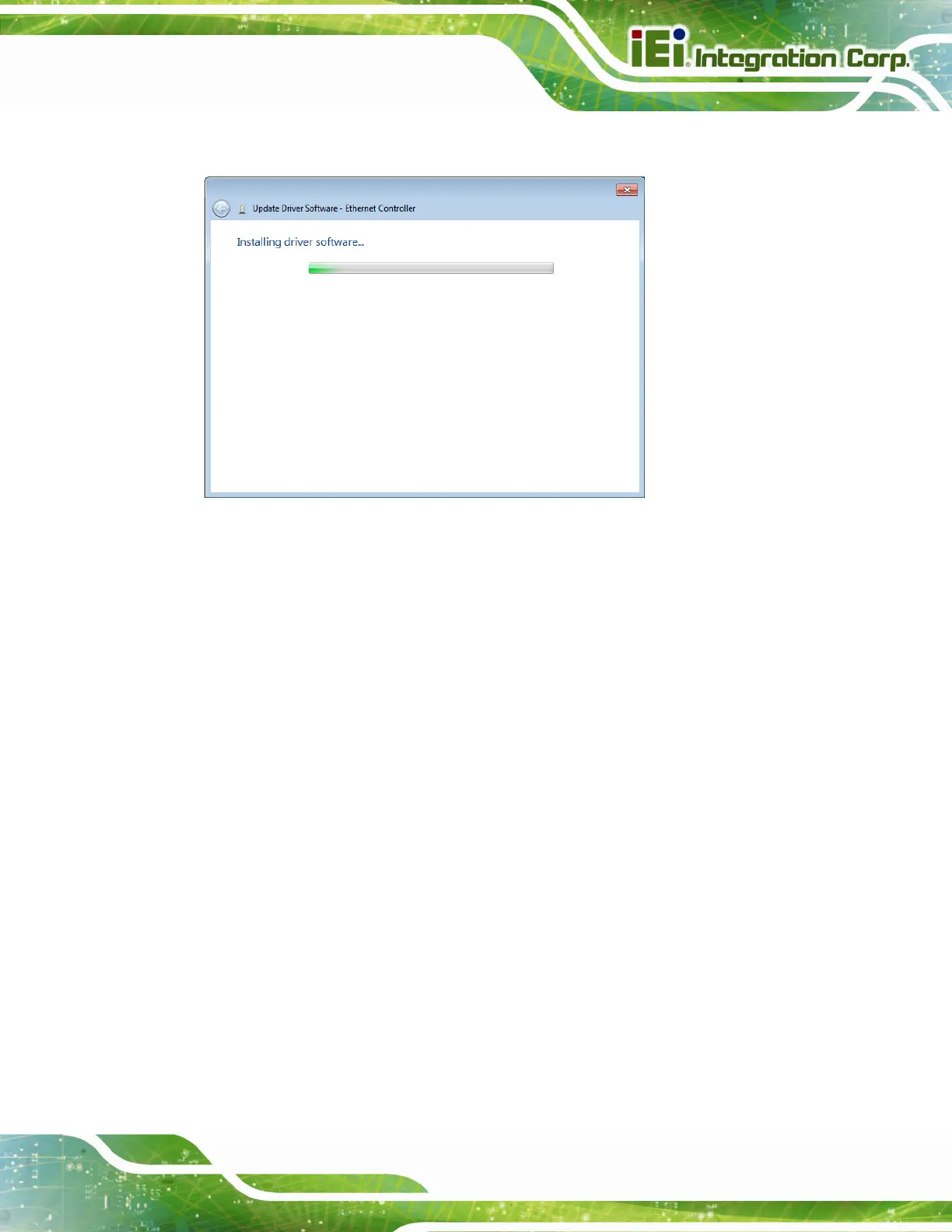

Figure 6-18: LAN Driver Installation

Step 12: The Finish screen appears. Click Close to exit.

Step 13: Right-click the other Ethernet controller that has question marks next to it as

shown in

Figure 6-15. Repeat Step 6 ~ Step 12 to install the second Ethernet

controller driver. Step 0:

6.6 Audio Driver Installation

To install the audio driver, please do the following.

Step 1: Access the driver list. (See Section

6.2)

Step 2: Click “4-Audio”.

Step 3: Double click the setup file.

Step 4: The InstallShield Wizard starts to extract files (

Figure 6-19).
