WSB-H810 PICMG 1.0 CPU Card
Page 56
4.4 Socket LGA1150 Cooling Kit Installation
The cooling kit can be bought from IEI. The cooling kit has a heatsink and fan.
WARNING:
Do not wipe off (accidentally or otherwise) the pre-sprayed layer of
thermal paste on the bottom of the heat sink. The thermal paste
between the CPU and the heat sink is important for optimum heat
dissipation.
To install the cooling kit, follow the instructions below.
Step 1: A cooling kit bracket is pre-installed on the rear of the motherboard.
See
Figure 4-5.

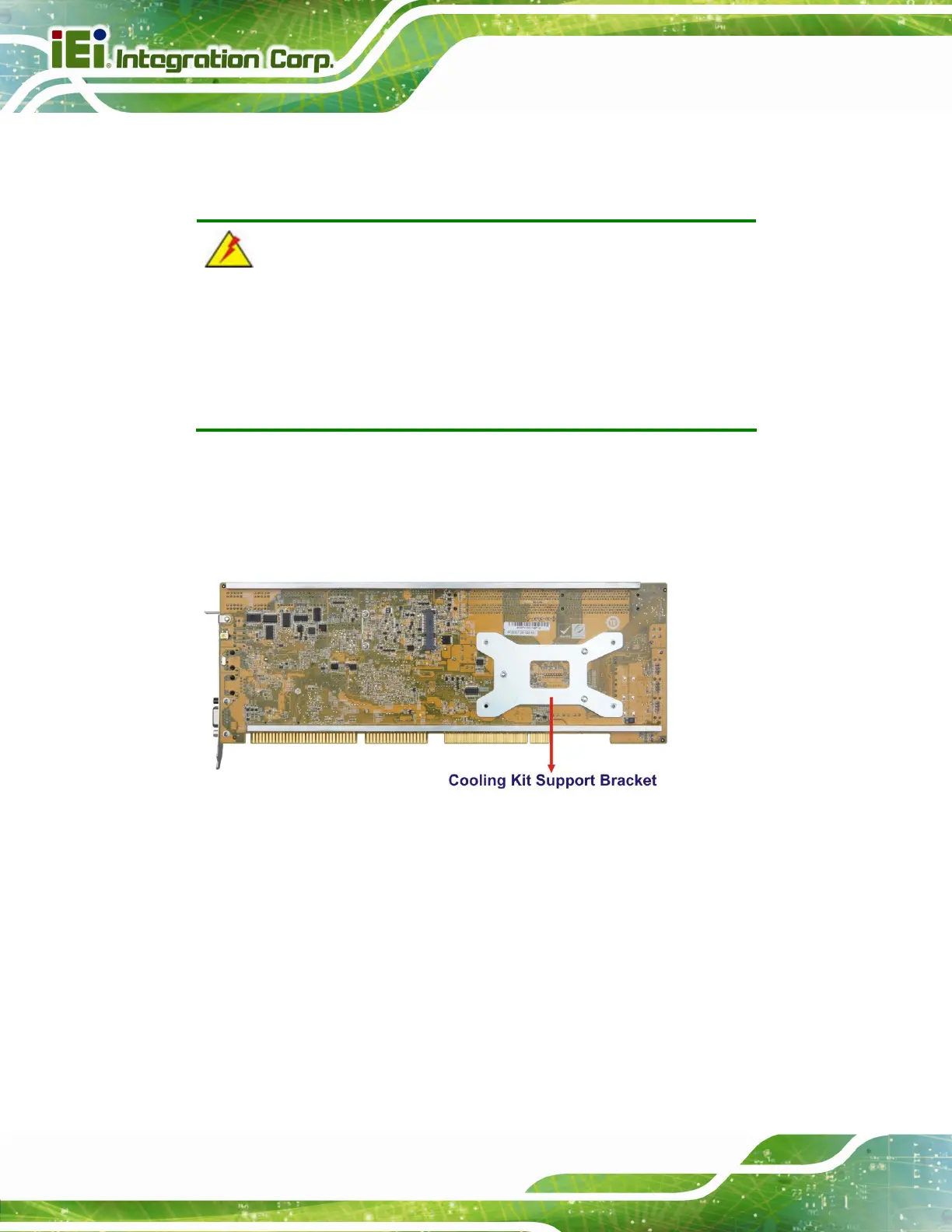

Figure 4-5: Cooling Kit Support Bracket
Step 2: Place the cooling kit onto the socket LGA1150 CPU. Make sure the CPU
cable can be properly routed when the cooling kit is installed.
Step 3: Mount the cooling kit. Gently place the cooling kit on top of the CPU. Make
sure the four threaded screws on the corners of the cooling kit properly pass
through the holes of the cooling kit bracket.
