WSB-H810 PICMG 1.0 CPU Card

Page 33

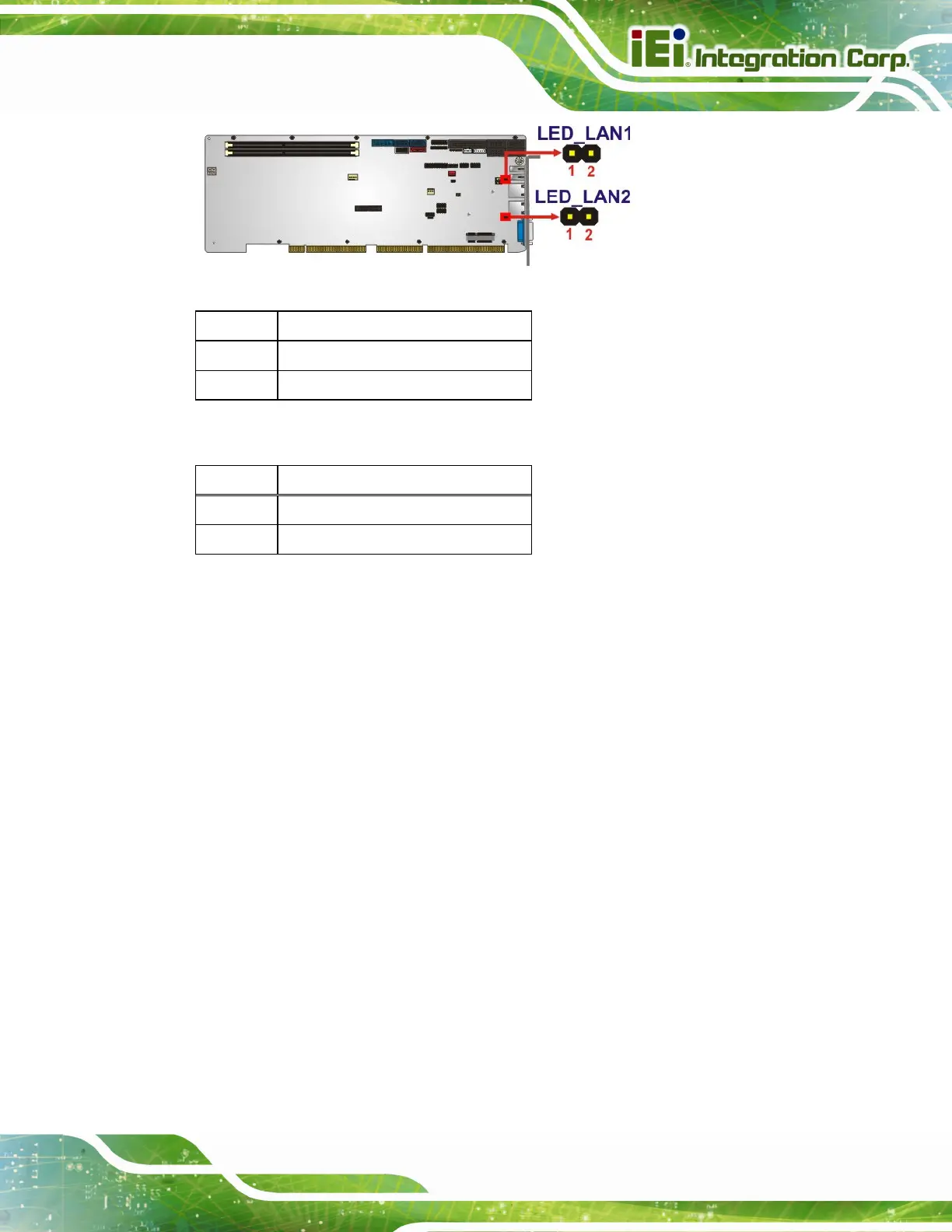

Figure 3-17: LAN LED Connector Locations

Pin Description

1 +3.3V

2 LAN1_LED_LINK#_ACT

Table 3-17: LAN1 LED Connector (LED_LAN1) Pinouts

Pin Description

1 +3.3V

2 LAN2_LED_LINK#_ACT

Table 3-18: LAN2 LED Connector (LED_LAN2) Pinouts

3.2.17 mSATA Slot

CN Label: MSATA1

CN Type:

PCIe Mini

CN Location:

See

Figure 3-18

CN Pinouts:

See

Table 3-19

The mSATA slot is for installing a full-size mSATA card.
