WSB-H810 PICMG 1.0 CPU Card

Page 118

6.4 Graphics Driver Installation

To install the Graphics driver, please do the following.

Step 1: Access the driver list. (See Section

6.2)

Step 2: Click “2-Graphic”.

Step 3: Double click the setup file which corresponds to the operating system.

Step 4: The InstallShield Wizard for the graphics driver appears (

Figure 6-6). Click Next

to start.

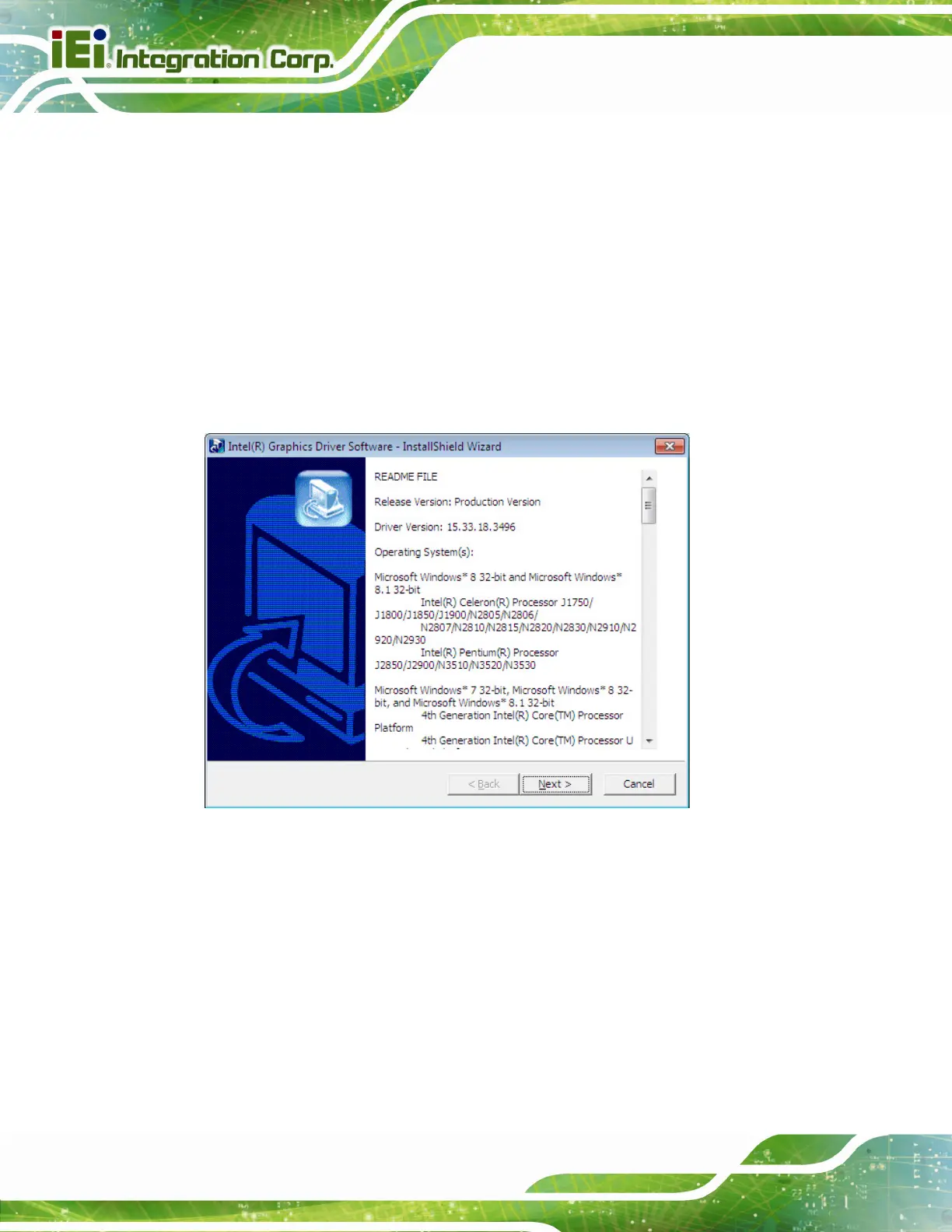

Figure 6-6: Graphics Driver InstallShield Wizard

Step 5: The InstallShield Wizard starts to extract files (

Figure 6-7).

Step 6: When the setup files are completely extracted, click Next to continue.
