WSB-H810 PICMG 1.0 CPU Card

Page 39

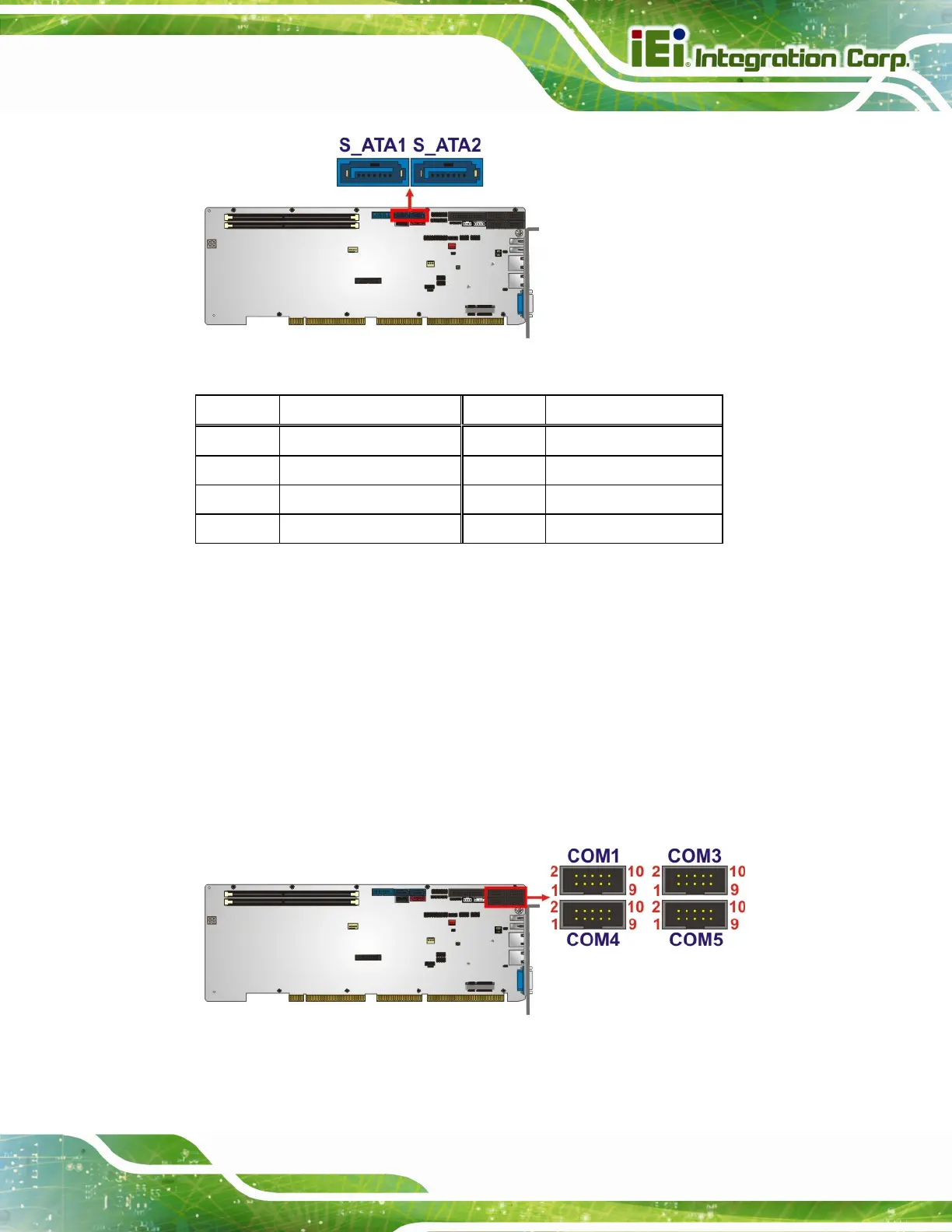

Figure 3-22: SATA 6Gb/s Drive Connector Locations

Pin Description Pin Description

1 GND 2 TX+

3 TX- 4 GND

5 RX- 6 RX+

7 GND

Table 3-23: SATA 6Gb/s Drive Connector Pinouts

3.2.22 Serial Port Connectors, RS-232

CN Label: COM1, COM3, COM4, COM5

CN Type:

10-pin box header, p=2.54 mm

CN Location:

See Figure 3-23

CN Pinouts:

See Table 3-24

Each of these connectors provides RS-232 connections.

Figure 3-23: Serial Port Connector Locations
