WSB-H810 PICMG 1.0 CPU Card
Page 62

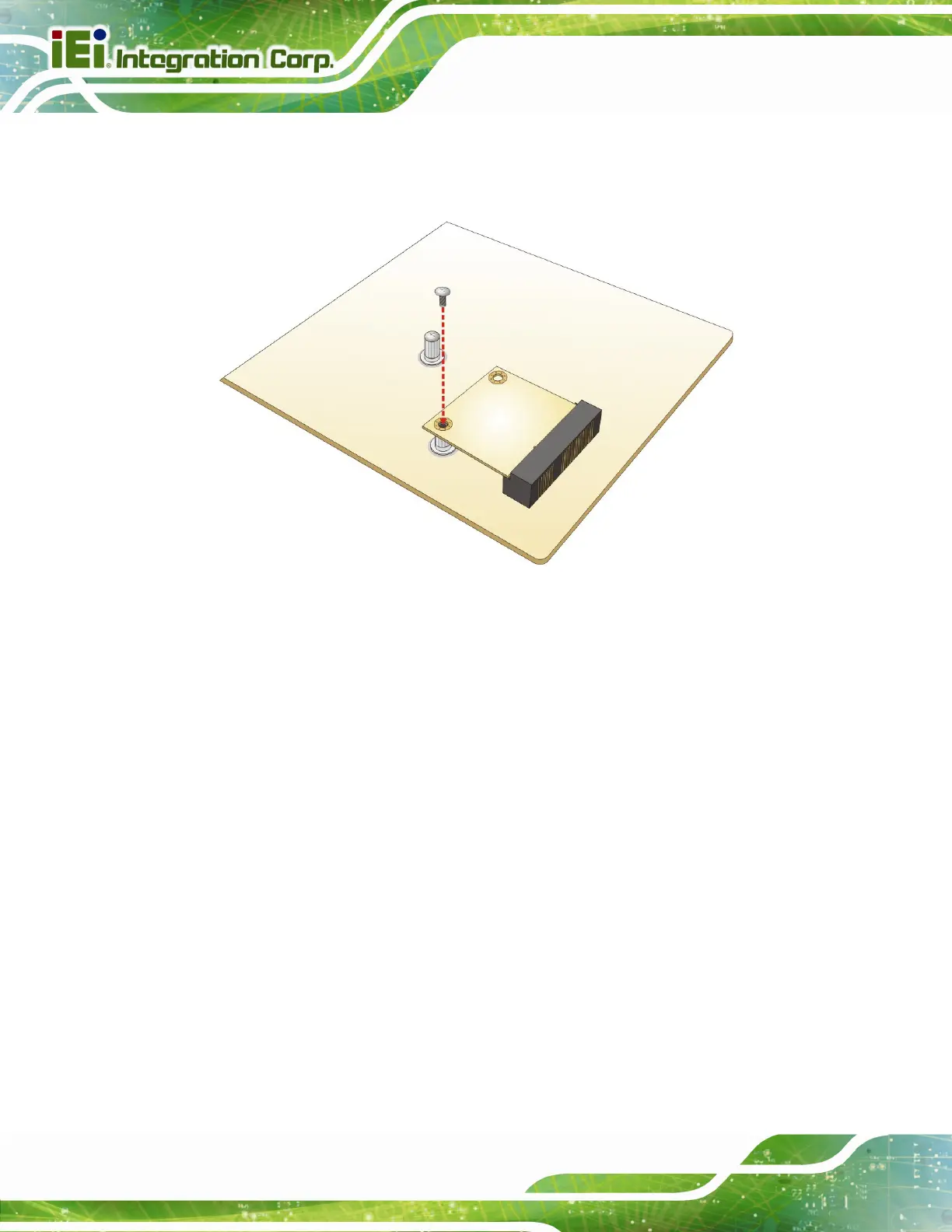

Step 4: Secure the half-size PCIe Mini card. Secure the half-size PCIe Mini card with
the retention screw previously removed (
Figure 4-13). Step 0:
Figure 4-13: Securing the Half-size PCIe Mini Card
4.8 mSATA Card Installation
The mSATA slot allows installation of a full-size mSATA card. To install a full-size mSATA
card, please follow the steps below.
Step 1: Locate the mSATA slot. The mSATA slot is located on the solder side of the
WSB-H810. See
Figure 3-18.
Step 2: Remove the retention screws. Remove the retention screws as shown in
Figure 4-14.
