WSB-H810 PICMG 1.0 CPU Card

Page 42

3.2.25 SPI Flash Connector

CN Label: JSPI1

CN Type:

8-pin header, p=2.54 mm

CN Location:

See Figure 3-26

CN Pinouts:

See Table 3-28

The SPI flash connector is used to flash the BIOS.

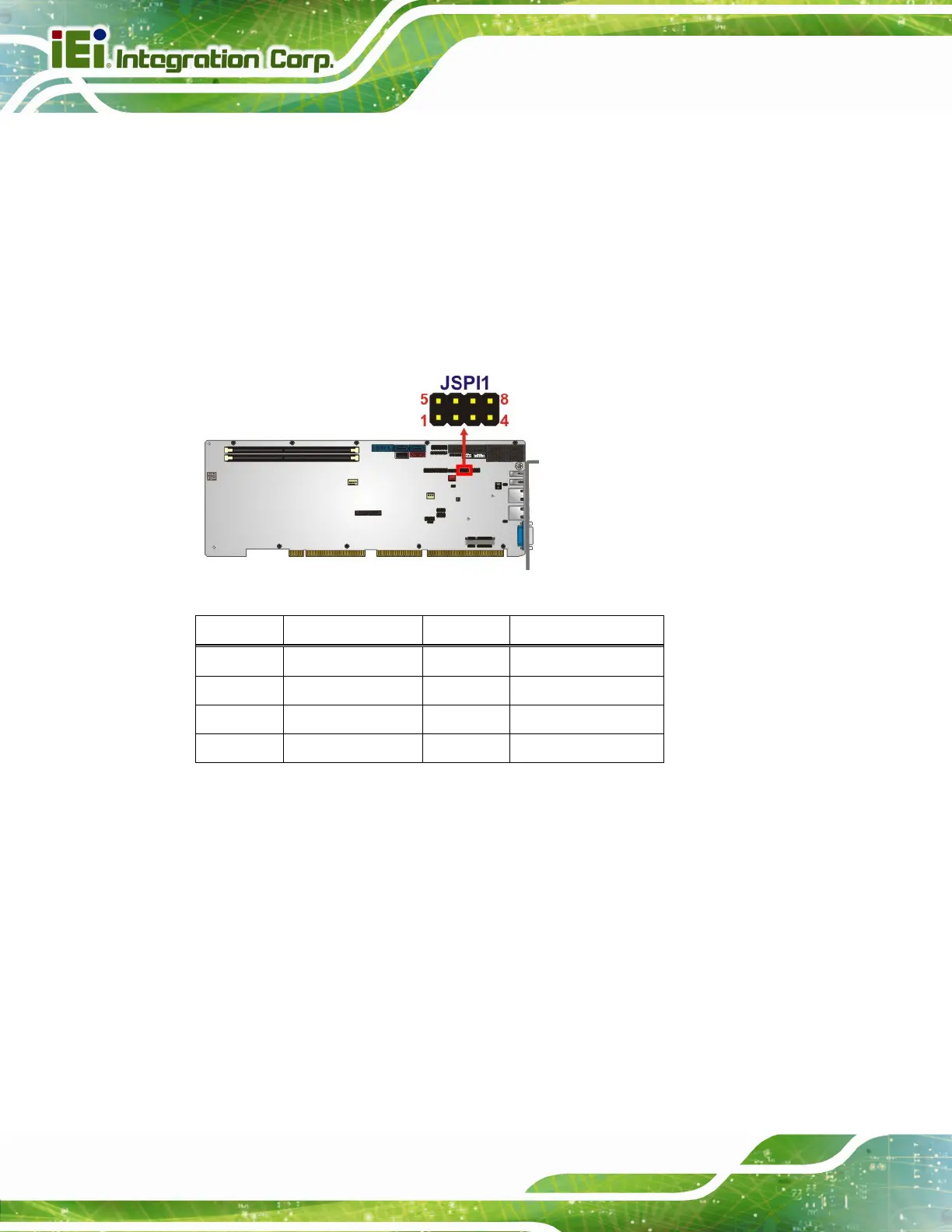

Figure 3-26: SPI Flash Connector Location

Pin Description Pin Description

1 +3.3V 2

SPI_CS#

3 SPI_SO 4 NC

5 GND 6 SPI_CLK

7 SPI_SI 8 NC

Table 3-28: SPI Flash Connector Pinouts

3.2.26 SPI Flash Connector (EC)

CN Label: JSPI2

CN Type:

8-pin header, p=2.54 mm

CN Location:

See Figure 3-27

CN Pinouts:

See Table 3-29

The SPI flash connector is used to flash the EC ROM.
