WSB-H810 PICMG 1.0 CPU Card

Page 38

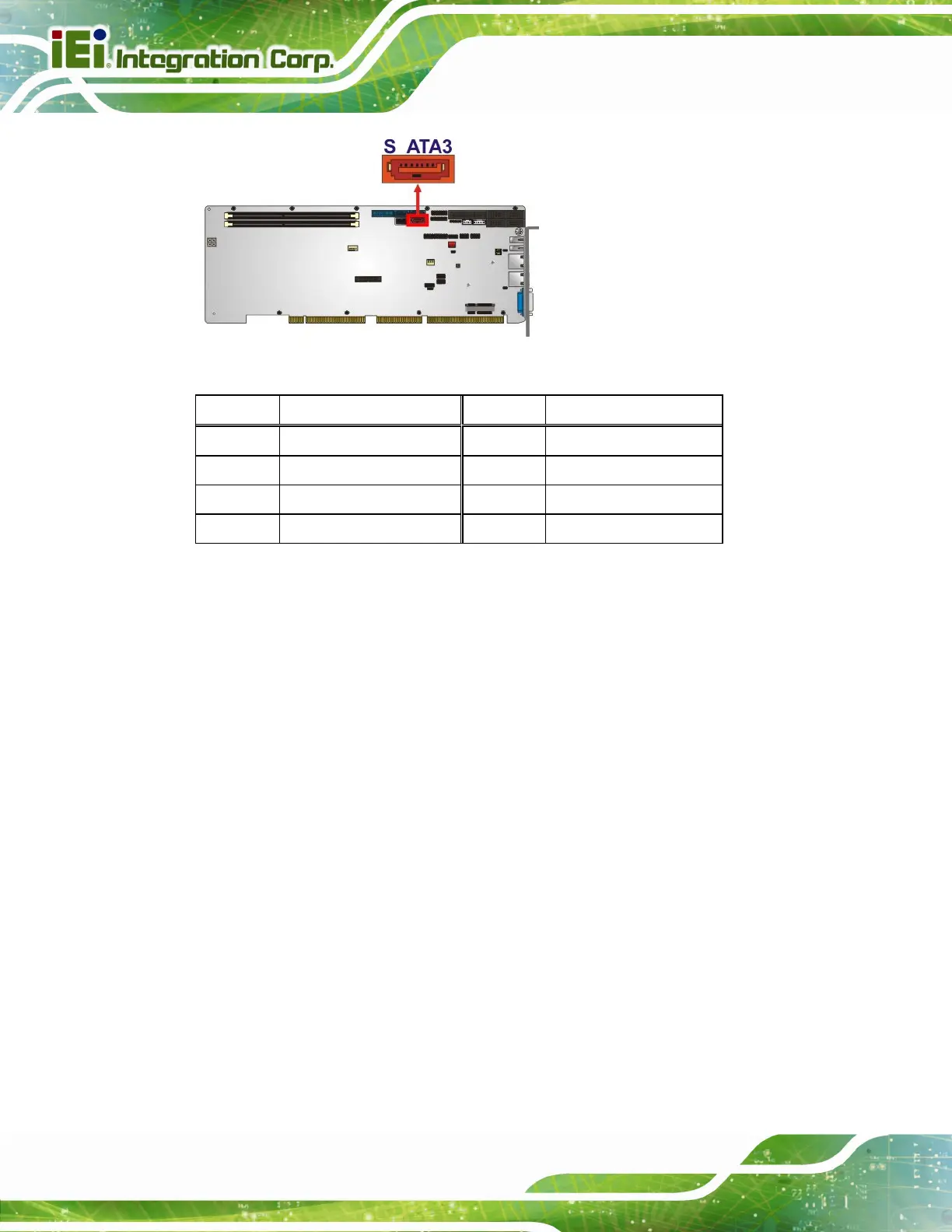

Figure 3-21: SATA 3Gb/s Drive Connector Location

Pin Description Pin Description

1 GND 2 TX+

3 TX- 4 GND

5 RX- 6 RX+

7 GND

Table 3-22: SATA 3Gb/s Drive Connector Pinouts

3.2.21 SATA 6Gb/s Drive Connectors

CN Label: S_ATA1, S_ATA2

CN Type:

7-pin SATA drive connector

CN Location:

See

Figure 3-22

CN Pinouts:

See

Table 3-23

The SATA drive connectors can be connected to SATA drives and support up to 6Gb/s

data transfer rate.

User Manual1
