WSB-H810 PICMG 1.0 CPU Card

Page 36

Pin Description Pin Description

13 PPD5 14 GND

15 PPD6 16 GND

17 PPD7 18 GND

19 ACK 20 GND

21 BUSY 22 GND

23 PE 24 GND

25 SLCT

Table 3-20: Parallel Port Connector Pinouts

3.2.19 PCIe Mini Slot

CN Label: MPCIE1

CN Type:

PCIe Mini

CN Location:

See

6Figure 3-20

CN Pinouts:

See

Table 3-21

The PCIe Mini slot is for installing a full-size or half-size PCIe Mini expansion card.

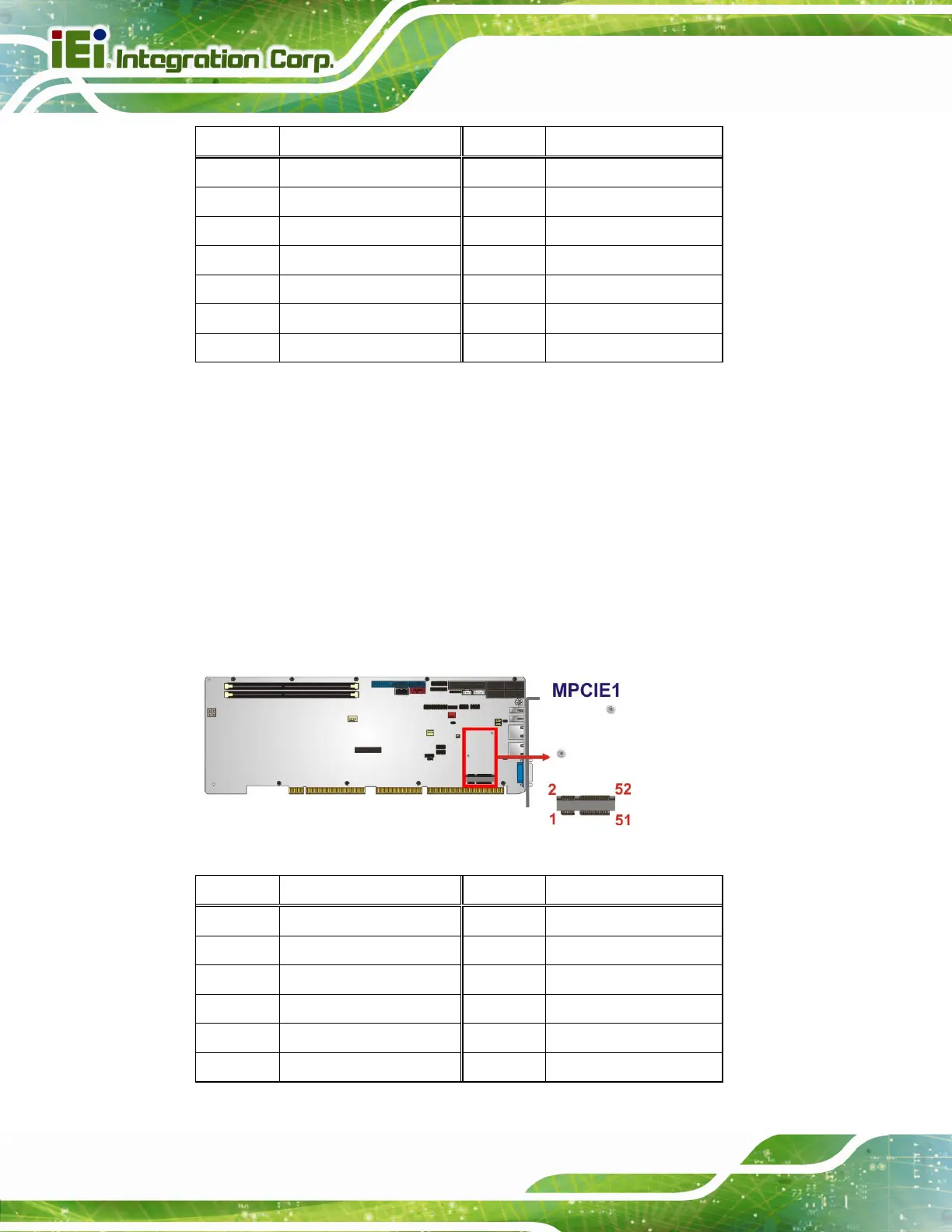

Figure 3-20: PCIe Mini Slot Location

Pin Description Pin Description

PCIE_WAKE#

+3.3V

3 N/C 4

GND

5 N/C 6

1.5V

7 N/C 8

N/C

9 GND 10

N/C

11 N/C 12

N/C
