WSB-H810 PICMG 1.0 CPU Card

Page 69

Step 4: Connect the SATA power cable (optional). Connect the SATA power

connector to the back of the SATA drive. See

Figure 4-21.

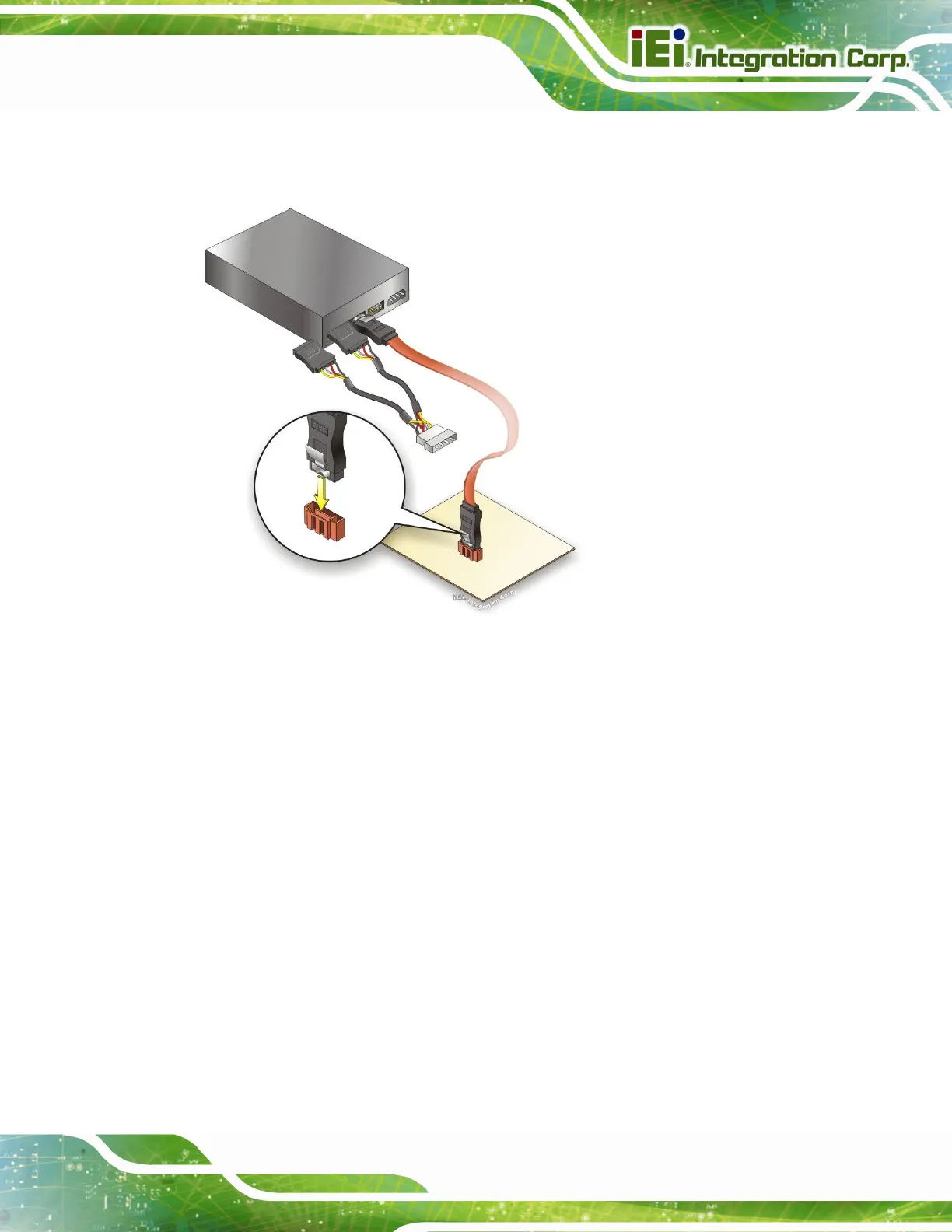

Figure 4-21: SATA Power Drive Connection
