WSB-H810 PICMG 1.0 CPU Card

Page 45

Pin Description Pin Description

7 GND 8 VCC

Table 3-31: USB 2.0 Connector Pinouts

3.2.29 USB 2.0 Connector (Type A)

CN Label: USB2-3

CN Type:

USB Type A

CN Location:

See Figure 3-30

CN Pinouts:

See Table 3-32

The USB Type A connector connects to a USB 2.0/1.1 device.

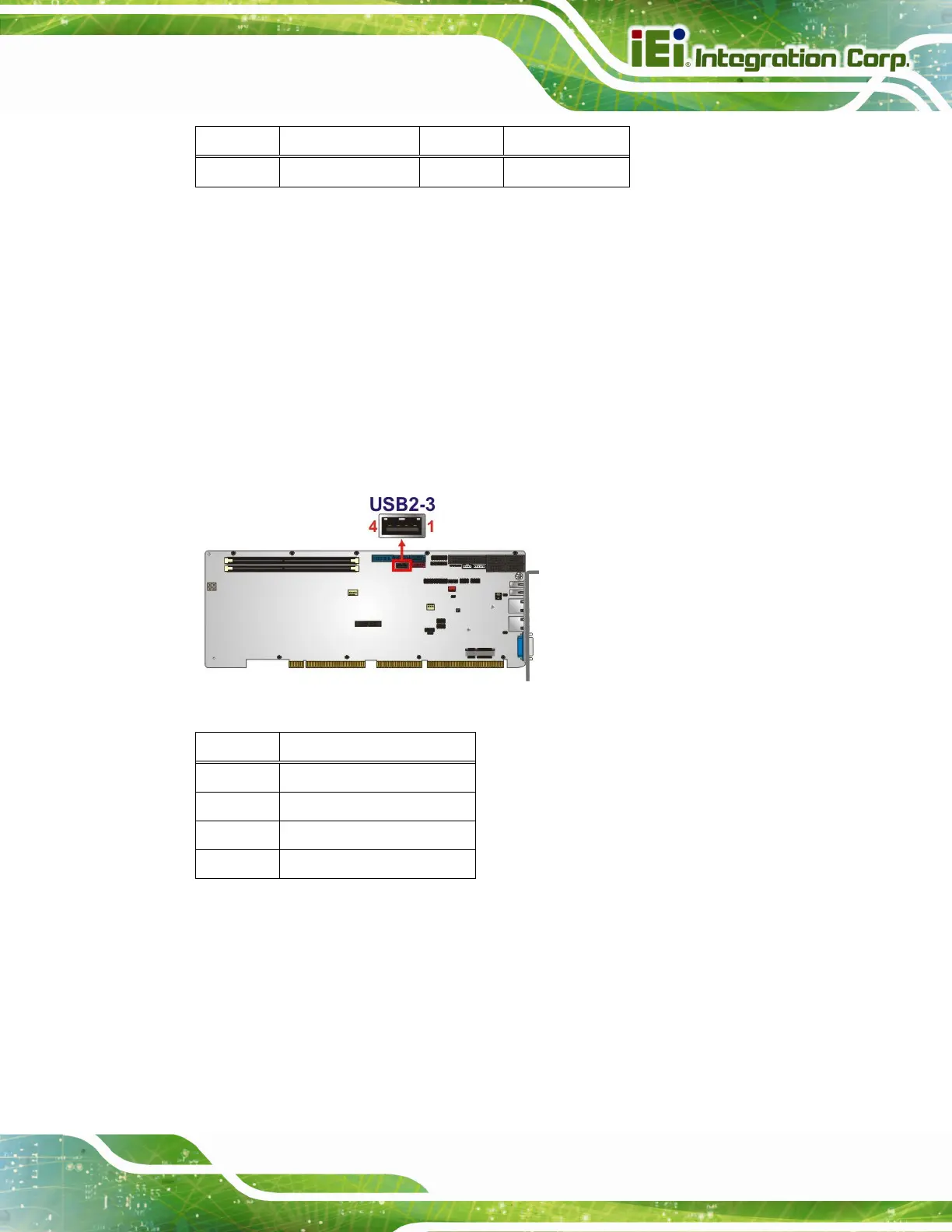

Figure 3-30: USB 2.0 Connector (Type A) Pinout Location

Pin Description

1 VCC

2 DATA-

3 DATA+

4 GROUND

Table 3-32: USB 2.0 Connector (Type A) Pinouts

3.2.30 USB 3.0 Connector

CN Label: USB3-1

CN Type:

19-pin box header, p=2 mm

CN Location:

See Figure 3-31
