WSB-H810 PICMG 1.0 CPU Card

Page 44

Pin Description Pin Description

1 LCLK 2 GND

3 LFRAME# 4 KEY

5 LRERST# 6 +5V

7 LAD3 8 LAD2

9 +3.3V 10 LAD1

11 LAD0 12 GND

13 SCL 14 SDA

15 SB3V 16 SERIRQ

17 GND 18 GLKRUN#

19 LPCPD# 20 LDRQ#

Table 3-30: TPM Connector Pinouts

3.2.28 USB 2.0 Connectors

CN Label: USB2-4, USB2-5

CN Type:

8-pin header, p=2.54 mm

CN Location:

See Figure 3-29

CN Pinouts:

See Table 3-31

The USB 2.0 connectors connect to USB 2.0/1.1 devices. Each pin header provides two

USB 2.0 ports.

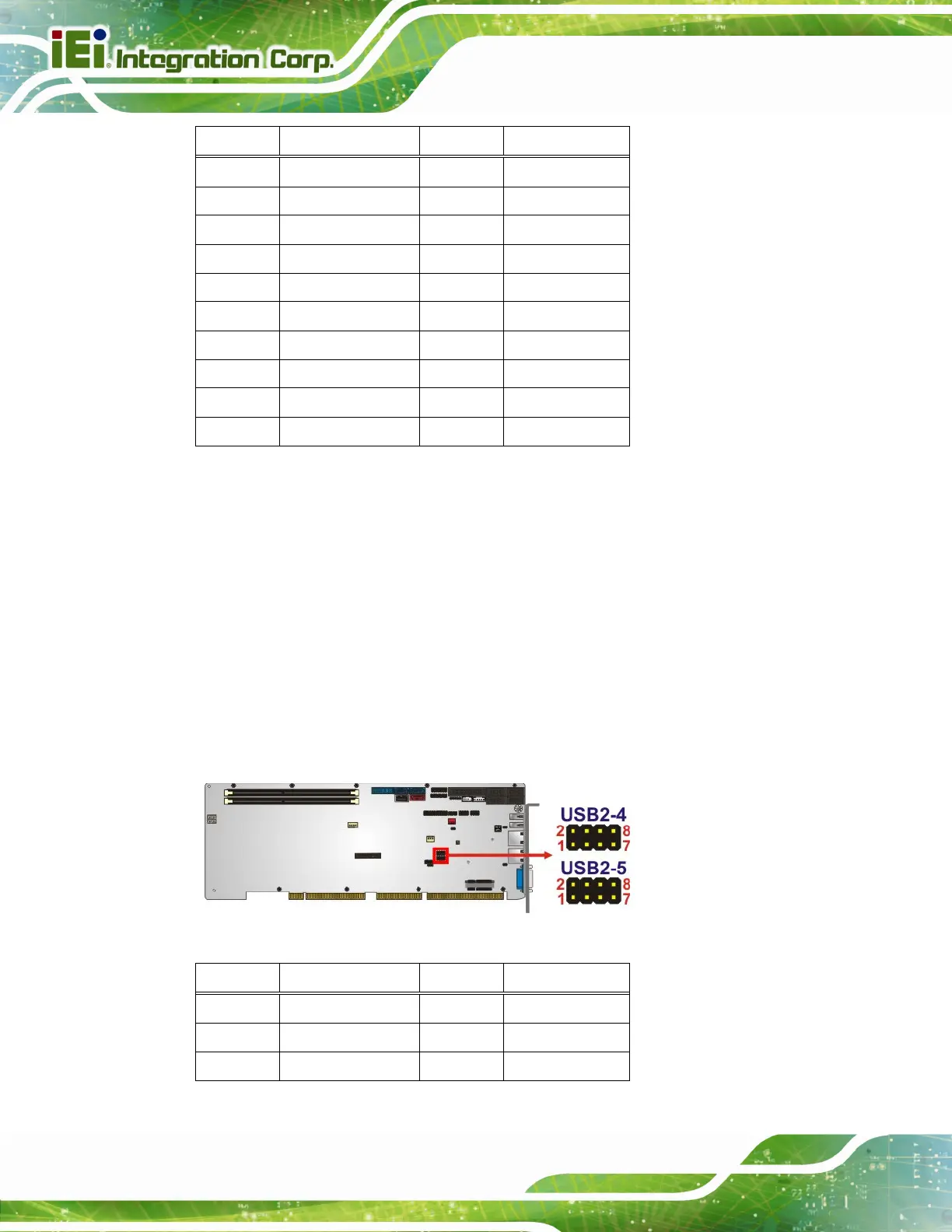

Figure 3-29: USB 2.0 Connector Pinout Locations

Pin Description Pin Description

1 VCC 2 GND

3 DATA- 4 DATA+

5 DATA+ 6 DATA-
