WSB-H810 PICMG 1.0 CPU Card

Page 63

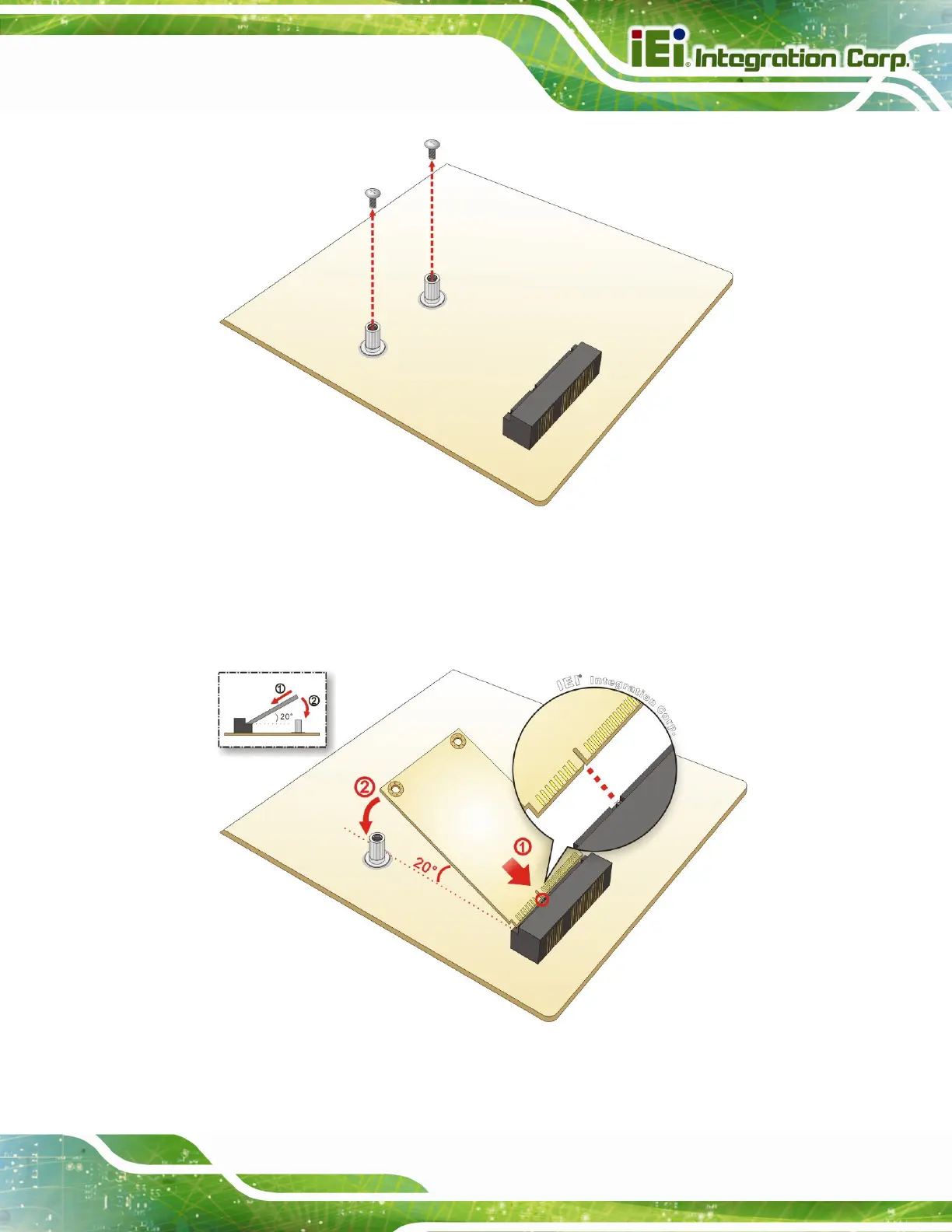

Figure 4-14: Removing the Retention Screws

Step 3: Insert into the socket at an angle. Line up the notch on the card with the notch on

the slot. Slide the mSATA card into the slot at an angle of about 20º (

Figure 4-15).

Figure 4-15: Inserting the mSATA Card into the Slot at an Angle
