WSB-H810 PICMG 1.0 CPU Card

Page 122

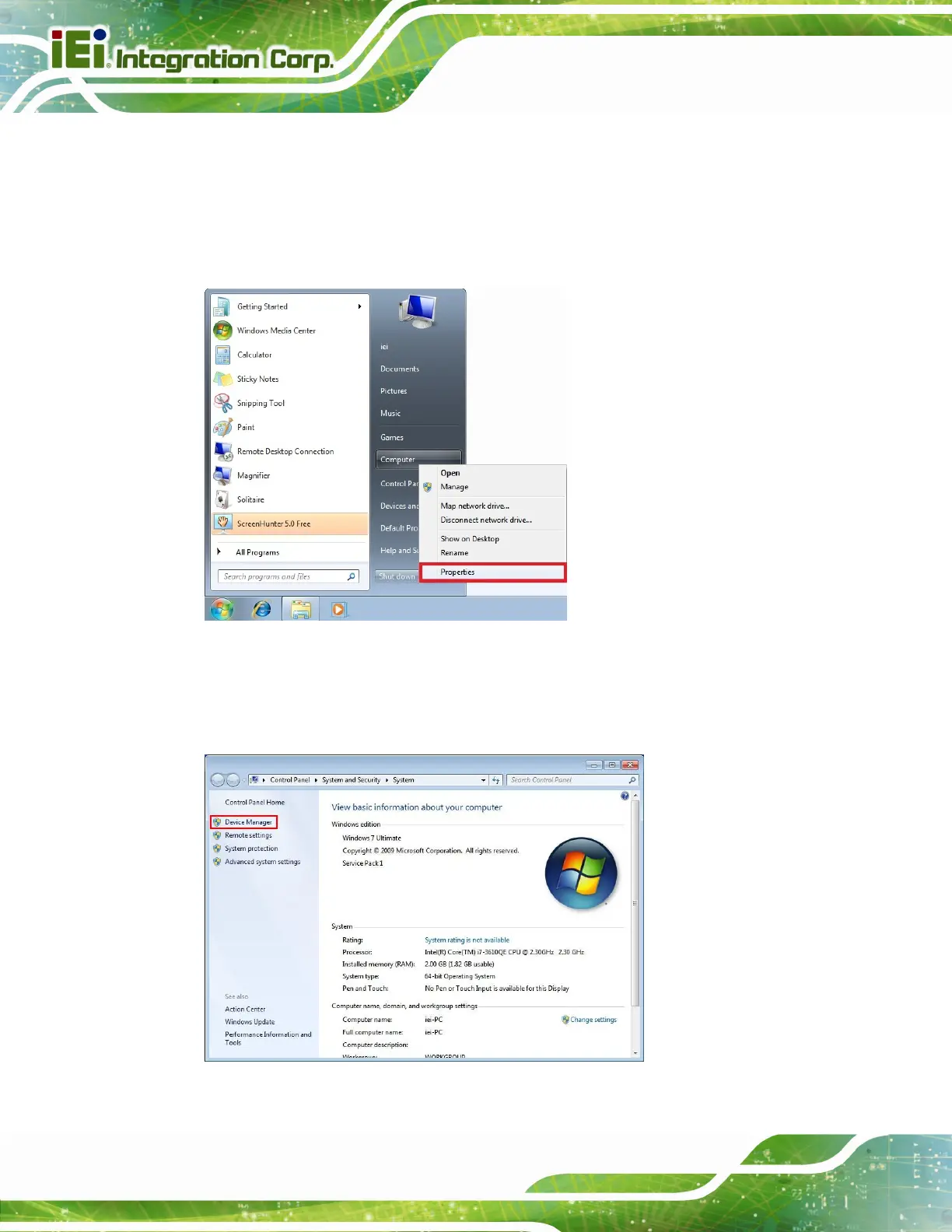

6.5 LAN Driver Installation

To install the LAN driver, please do the following.

Step 1: Right-click the Computer button from the start menu and select Properties

(

Figure 6-13).

Figure 6-13: Windows Control Panel

Step 2: The system control panel window in

Figure 6-14 appears.

Step 3: Click the Device Manager link (

Figure 6-14).

Figure 6-14: System Control Panel

User Manual1
