Transpector CPM Operating Manual

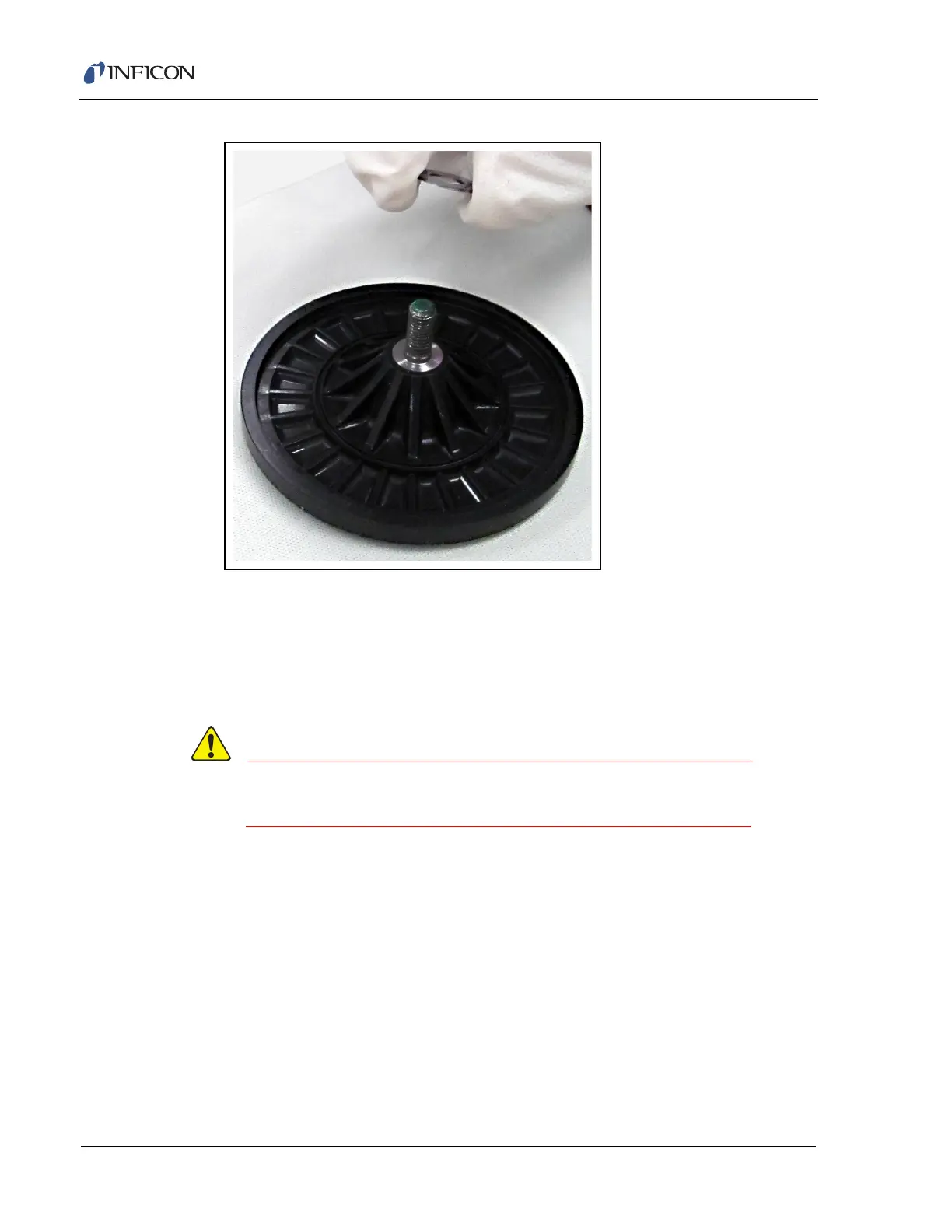

Figure 7-11 Placing original spacers on new diaphragm
13 Clean the channel that the diaphragm disk is seated in with methanol and lint
free wipes. (See Figure 7-12.)
14 Screw the diaphragm disk, with original spacers, into the cam screw hole. (See
Figure 7-12.)
Screw in the diaphragm disk tightly.
A loose disk can damage the pump.
