7–15
Transpector CPM Operating Manual

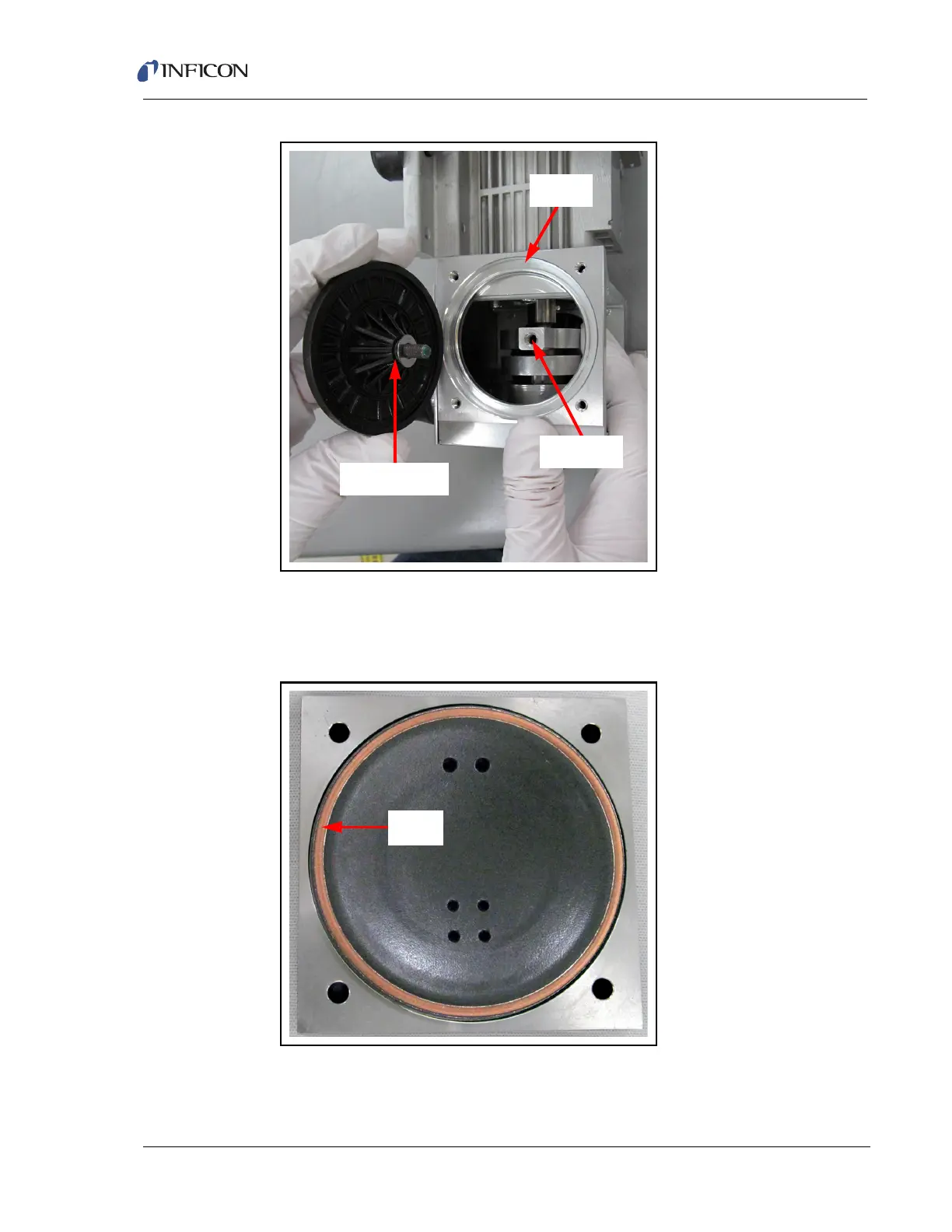

Figure 7-12 Installing the new diaphragm disk
15 Place the thin O-ring into the groove on the diaphragm side of the diaphragm
plate. (See Figure 7-13.)
Figure 7-13 Thin O-ring
16 Carefully place the diaphragm plate over the diaphragm head so that the screw
holes line up. (See Figure 7-14.)
Diaphragm Disk
with Spacers
Cam Screw
Hole
Clean
Channel
Thin
O-ring
