7–13
Transpector CPM Operating Manual
11 There are spacers between the diaphragm disks and the cam. Note the position
of the spacers when removing the diaphragm disks. The spacers must be
reassembled on the new diaphragm disks in exactly the same position. (See
Figure 7-10.)

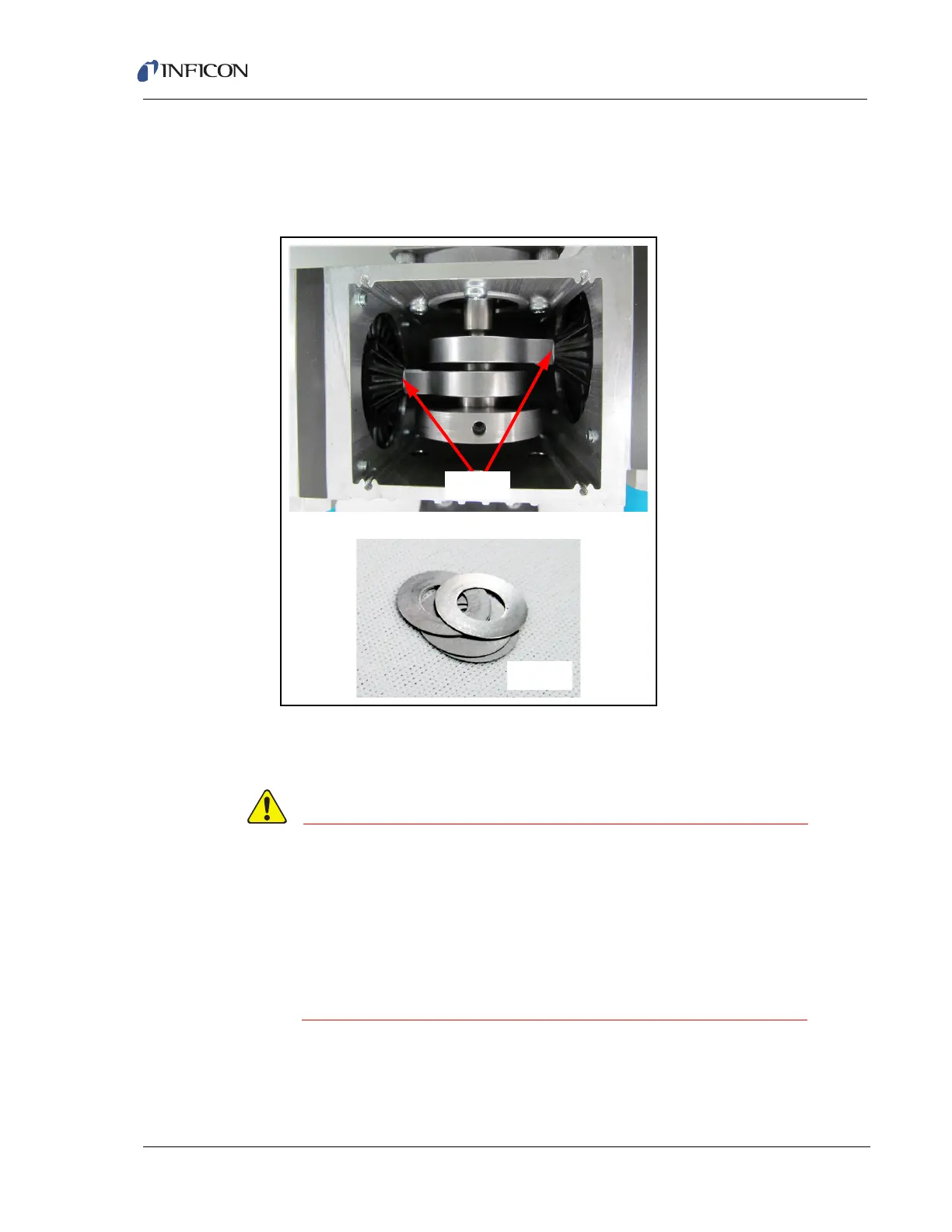

Figure 7-10 Spacers
12 Place the original spacers on the new replacement diaphragm in exactly the
same order as they were on the old diaphragm. (See Figure 7-11.)
The spacers, cam, diaphragm disks and electric motor
are balanced at the manufacturer for optimal
performance. Therefore, one side of the diaphragm may
have a different number of spacers than the other in order
to achieve balance. To maintain the balance, the original
spacers must be transferred to the new diaphragm in
exactly the same position as they were when removed
from the old diaphragm.
