Do not scratch the seal surface. The seal surface can be
easily damaged by a metal tweezer. Use a nonmetallic
tweezer.

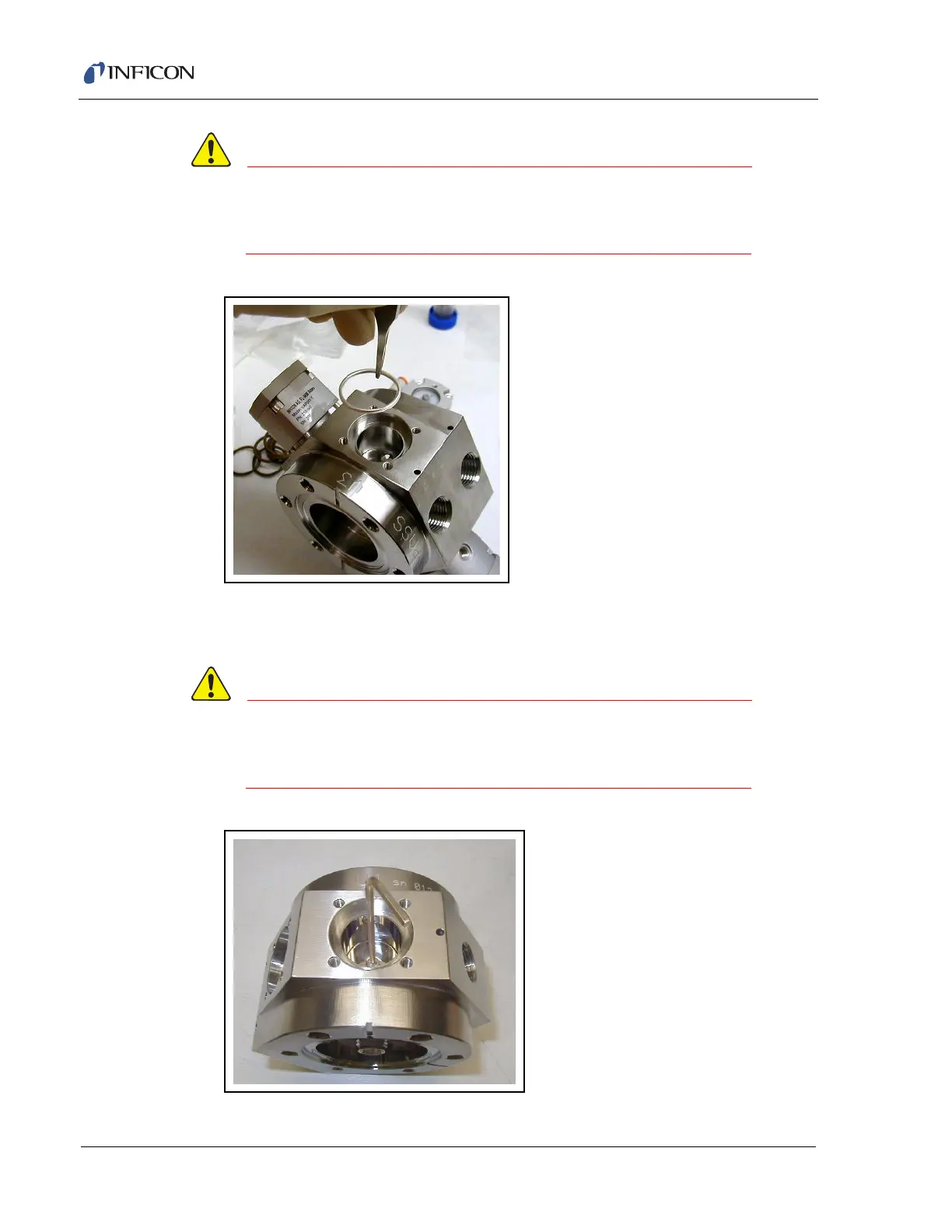

Figure 7-31 Removal/installation of C-ring
5 Carefully remove (by turning counterclockwise) the old orifice using the 2 mm
allen wrench. (See Figure 7-32.)
Use only the provided 2 mm allen wrench or similar
particle free tool. Other allen wrenches can produce
particles that can plug the orifice.
Figure 7-32 Removal/installation of orifice
