Multitron - Incubation Shaker
Setup and Function
25 February 2019 Page 21 of 146

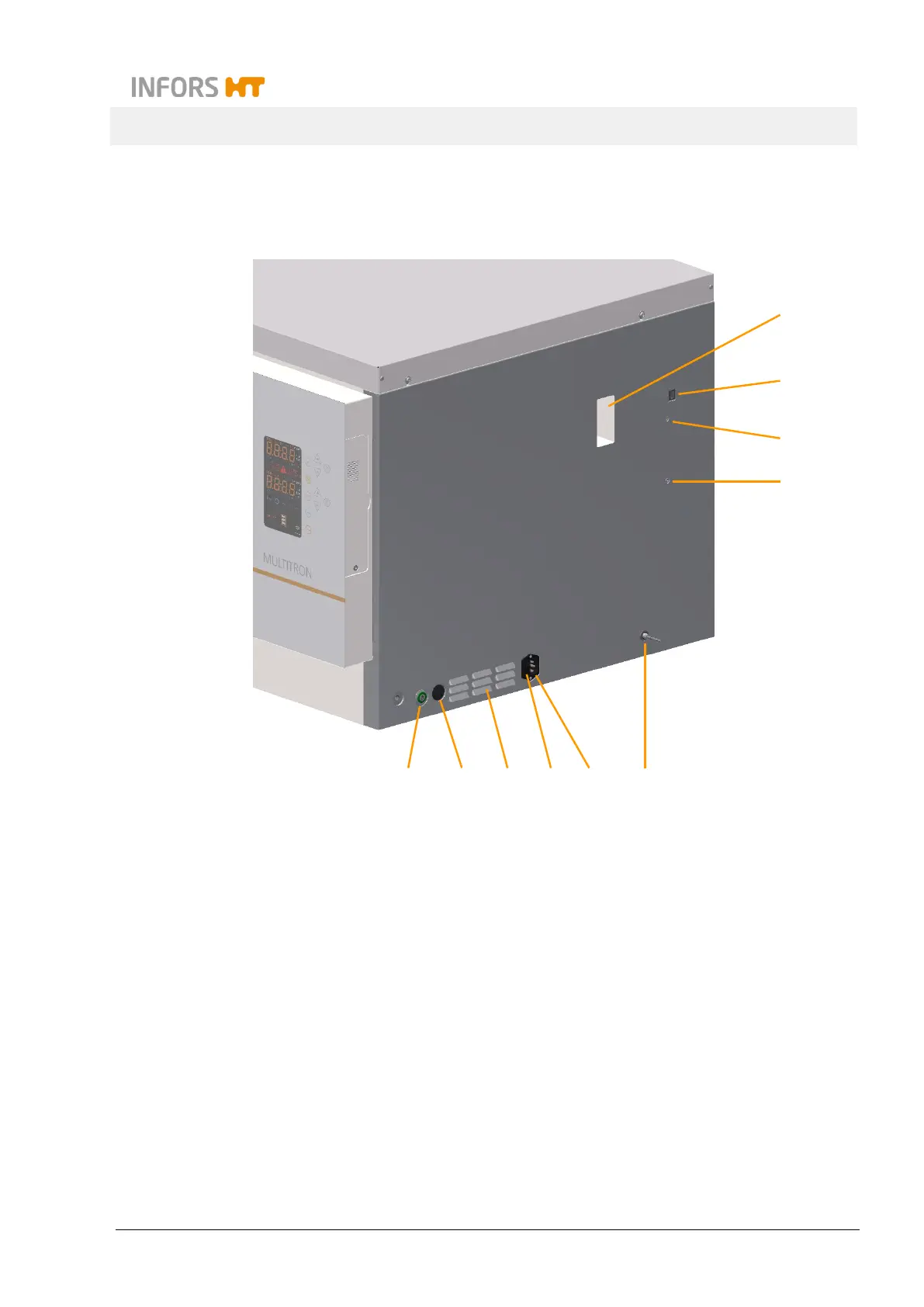

Connections and interfaces
1 Cable pass-through (optional)
2 Ethernet Interface (LAN)
3 Status LED (STATUS, only for service
purpose)
4 Connection of external alarm (EXTERNAL
ALARM)
5 CO
2
connection (CO
2
IN, optional)
6 Mains connection (MAINS)
7 Slot for fuses (230 V version) or thermal
protection switches (115 V version)
8 Air vents
9 UV decontamination button (UV, optional)
10 Main switch (POWER)
1
3
5
6
9
10
4
8
2
7
