Multitron - Incubation Shaker
Setup and Function
25 February 2019 Page 25 of 146
Table
The table is used to hold the 85 x 47 cm (type M) tray, various ver-
sions of which are available. Bars on the sides, two stops and two
tapered plugs ensure that the tray is positioned correctly.
The table is connected to the drive hub by means of three hexa-
lobular socket head cap (Torx) screws. To clean the base tray, the
three screws can be undone and the table can be lifted 30° to allow
access.

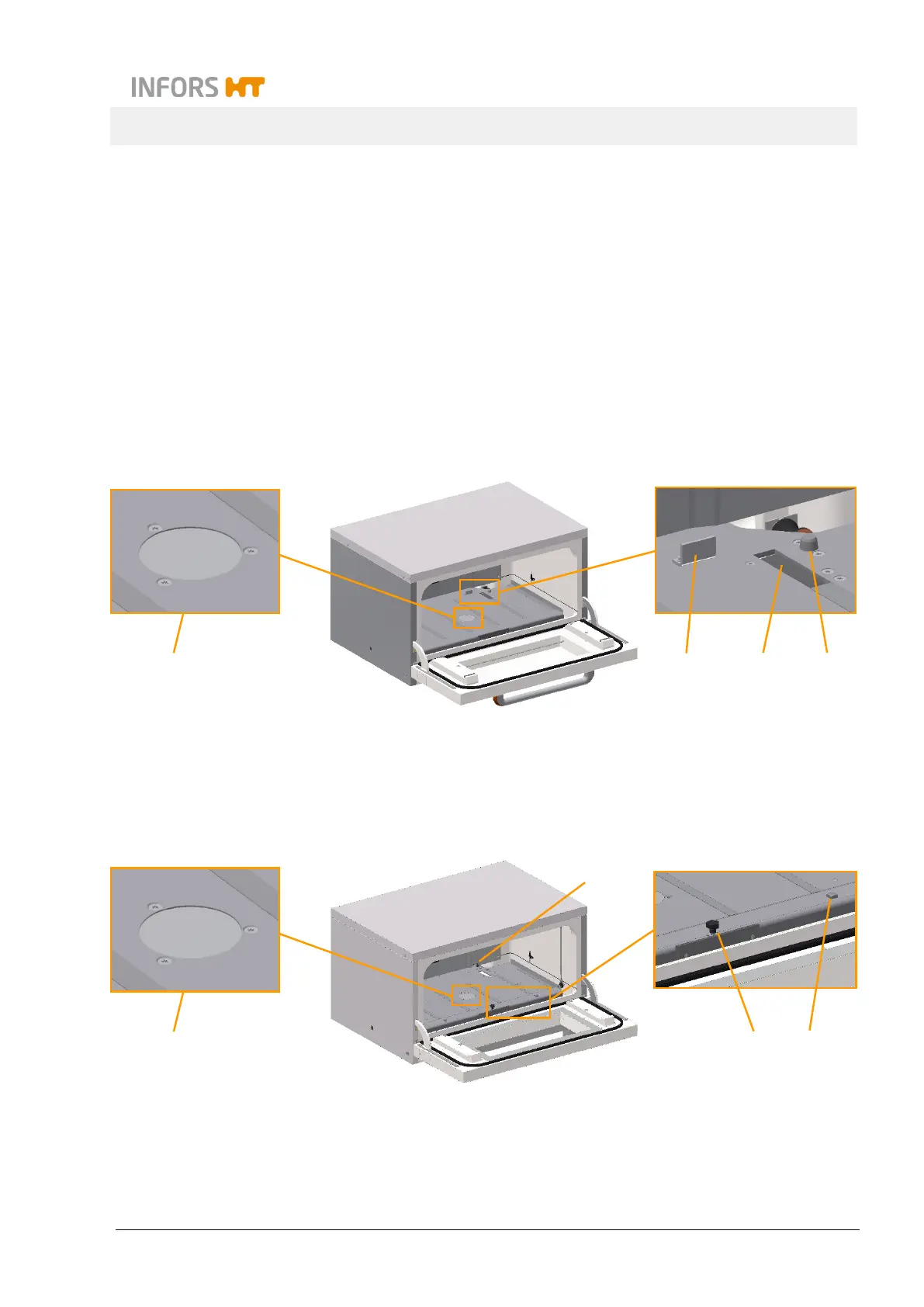

Depending on the throw of the equipment, the table varies as fol-
lows:
Table with 25 and 50 mm throw:
1 Drive hub
2 Limit stop
3 Tray ejection
4 Tapered plug
Table with 3 mm throw:
1 Drive hub
2 Limit stop
3 Knurled screw
4 Tapered plug
1
3
2
4
1
3
4
2
