1.2 CCTV surveillance
To ensure the safety of employees and property, a video surveillance system needs to be
installed in a building site.
1.2.1 Solution
IP-COM CPE can meet this demand.
CPE6S is used as an example to illustrate the installation procedures. Procedures for other
CPEs are similar.
1.2.2 Set up the CPEs
At least two CPEs are required for bridging.
Option 1: Automatic bridging (recommended)
− Automatic Bridging is only applicable when the CPEs are in factory settings.
− When performing peer-to-peer bridging, ensure that only two CPEs are powered on nearby. Otherwise,
the peer-to-peer bridging may fail.
Scenario 1: Peer-to-peer bridging

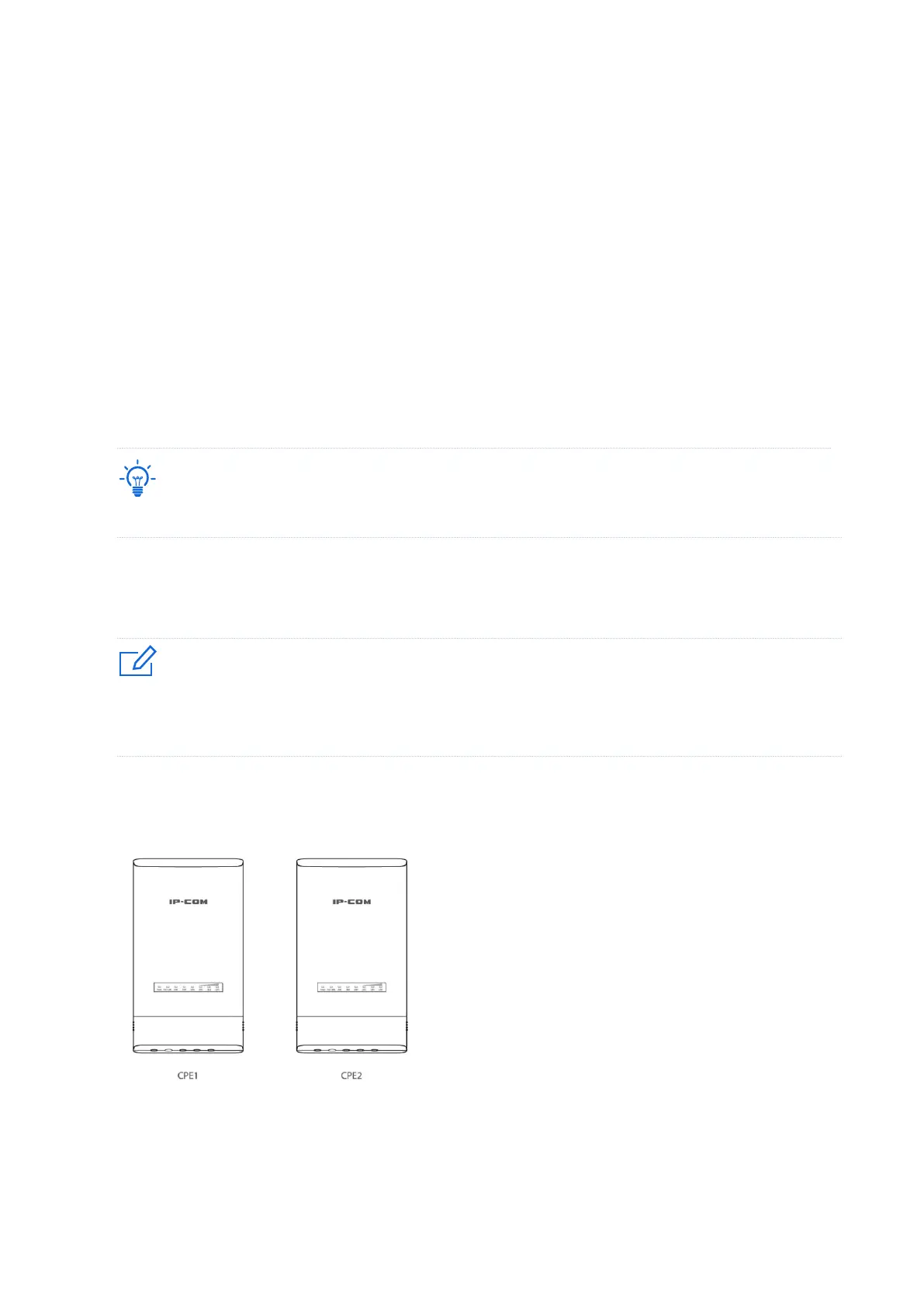

1. Place the two CPEs next to each other.
2. Power on the CPEs (powered by PoE in this example).
(1) Remove the housing of each CPE.
(2) Use the Ethernet cables (CAT5e or better is recommended) to connect the PoE/LAN ports
of the CPEs to the PoE ports of the included PoE injectors to power them on.
